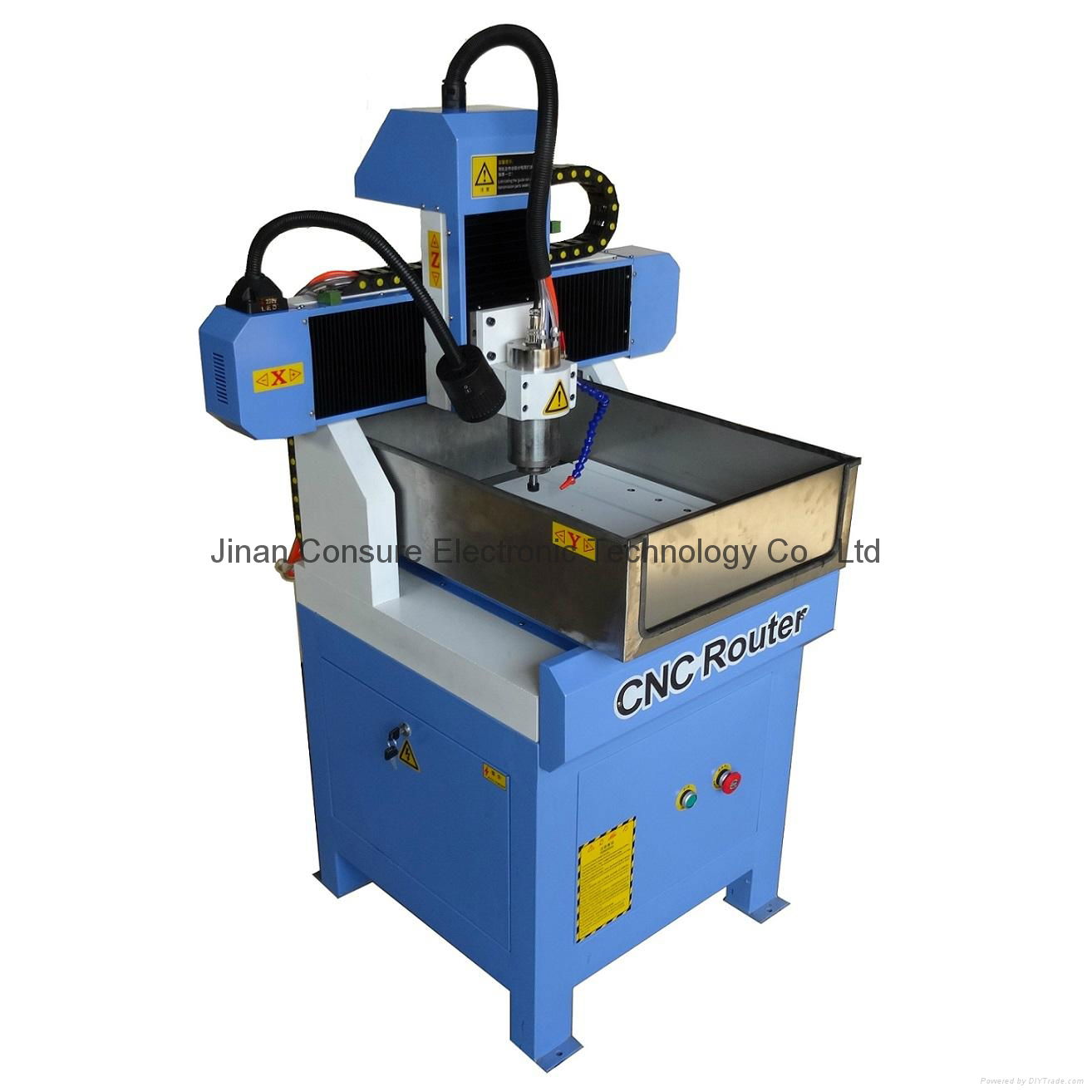

CS-4040 aluminum shoe mold engraving machine CNC router



Machine video:

https://youtu.be/_cJGyHYoPPQ

https://youtu.be/zwMJhewkiLk

https://youtu.be/fk5drpqeKSI

https://youtu.be/oF_gr29YAoQ



Related Working Videos:
Fiber laser marking machine training video: https://youtu.be/IV1o_ZgMBuA
How to use Ez cad software: https://youtu.be/pcadamqQnkw
CO2 laser engraving machine user video: https://youtu.be/kskivvwOOcQ
Metal nameplate marking: https://youtu.be/9njHeTynEjo
Photo fiber laser marking: https://youtu.be/Uju9-rYYVgU
Knife fiber laser engraving: https://youtu.be/NI-q1GX45IM
Photo fiber laser marking on ss: https://youtu.be/9WHKoJH3JxQ
Stainless steel white engraving: https://youtu.be/VIXyL-JhnO0
Stainless steel black engraving: https://youtu.be/1MlnlHVQEM0
Color fiber laser marking on ss: https://youtu.be/kbYgwYFB_4M
Desktop fiber laser marking machine: https://youtu.be/wJsM9QCNvig



This machine model is mainly used to make Jade, gemstone, jewelry and mould, the machine is able to make various 3d relief, text, letters, images, arts, character sculpture, decorative pattern, ornamental design etc



Features:

1. The integrally cast lathe bed is used for great solidity and stability.

2. High precision makes it suitable for the arts and crafts advertising industry.

3. Option metal tools are available to facilitate metal engraving

4. High-speed water cooling spindle, high performance subdivision driver.

5. Precise and efficient control system, coming with professional software.



Applicable industries:

1. Advertising industry: engrave and cut various signboards, marble, copper, character mold, fonts. And various metal sign, brand.

2. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

3. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.

4. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.

5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.



Technical parameters:

NO.	Description	Parameters
1	Product model	CS-4040		CS-6060		CS-6090
2	X,Y,Z Working area	400x400x150mm		600x600x150mm		600x900x150mm
3	Table Size	490X640mm		720x835mm		720x1135mm
4	Working Accuracy	<0.01mm
5	X,Y,Z Traveling Positioning Accuracy	±0.05/300mm
6	X,Y,Z repositioning Positioning Accuracy	±0.05mm/300mm
7	Frame Structure	Complete cast iron machine body
8	X,Y,Z axis guide rail	Taiwan HIWIN square guide rail
9	X,Y axis transmission	Imported Ball Screw
10	Z axis transmission	Imported Ball Screw
11	Max. Consume Power	5KW
12	Max. Speed	0-12000mm/min
13	Max. Working Speed	0-8000mm/min
14	Spindle Power	2.2kw water-cooling spindle(optional 1.5kw, 3kw spindle)
15	Water Tank/Pump	Included
16	Spindle Speed	0-24000RPM
17	Cutting Tool Diameter	φ3.175/4/6/8/10/12.7
18	Table	T-slot cast iron worktable with water box
19	Working Voltage	AC220V/380V, 50/60Hz, single phase
20	Driving System	Leadshine or ADTECH Stepper Motor and drivers
21	Format of Instructions	G code,*uoo,*mmg, *plt
22	Control system	English NC-studio computer control system
23	Software	English Ucancam,  Type3,  Artcam
24	Interface	USB
25	Flash Memory	128M
26	Collet	ER20
27	Running circumstance	Temperature: 0℃～45℃ Relative humidity: 30%～75%
28	Packing Size	98x96x179cm	125x122x174cm		155x122x174cm
29	Net Weight	210KG	260KG		350KG
30	Gross Weight	300KG	350KG		400KG
All parameters above subject to change without prior notice
