T-12 Nexo Column System Touring Sound System

T-12 Nexo Column System Touring Sound System
Model:T-12
Brand:T.I Reward
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label:Queue Management Sys , JBL Sound Speaker , RCF Line Array
Price: ¥1 / pc
Min. Order:2 pc
Inquire Now

Product Description

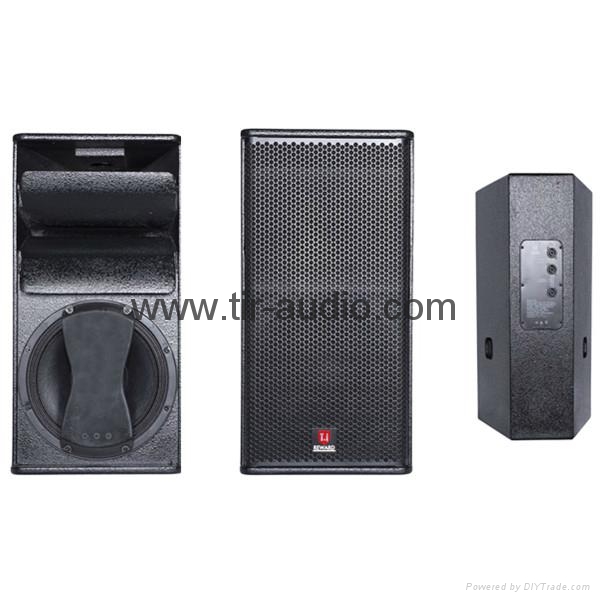

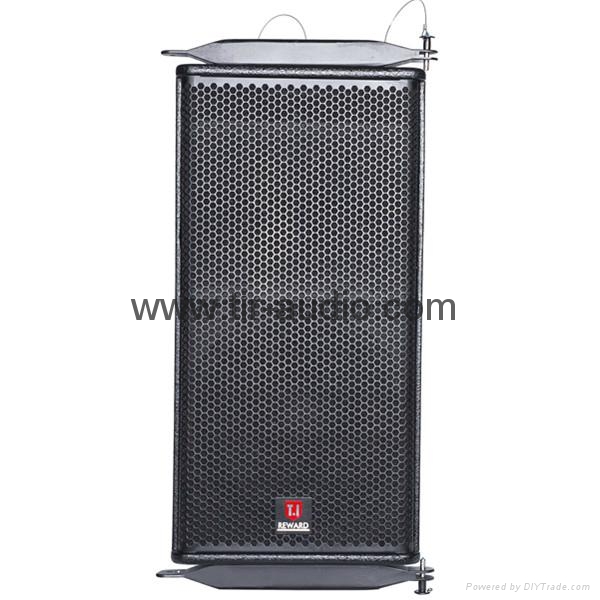

T-12  is  a bi-amps, line array system which is made of one 12", one 3"titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. T-12 is a compact line array enclosure designed to bring superb line array performance to large stadiums, big outdoor concerts and commercial events. The switchable one or bi-amplified two way cabinet is very efficient, It meets the need for a high power, high bass impact system that is versatile and scalable for a very wide range of applications in the live sound, corporate and fixed installations.


Indoor Outdoor Line Array Sound Reinforcement

Indoor Outdoor Line Array Sound Reinforcement

Indoor Outdoor Line Array Sound Reinforcement









Model

T-12

Type

Array system

Frequency Response

55Hz-20kHz±3dB

Power handling

400W(RMS)800W(PEAK)

Sensitivity

100dB(1W@1M)

Max@S.P.L

126dB(PEAK/1M)

LF section

12"(310mm)   woofer 75mm(3in)coil

Nominal impedance

8 ohm

HF section

1×3"compression driver 44mm titanium diaphragm

Nominal impedance

8 ohm

Output section

2-channel

Dispersion pattern

110°H×5°V

Finish

Black paint

Speaker cables

Passive   1(+),1(-). Built in
  crossover
  Bi-AMP LF 1(+),1(-)
  HF 2(+),2(-)

Input connectors

2×NL4MP   speakon

Dimensions

355×593×434mm(W×H×D)

Package dimensions

425×660×505mm/0.14cbm

Enclosure

Brich Plywood

Net weight

28kg

Gross weight

31kg
