JJL solar water heater intelligent controller HP-8

Technical data:
1. Power Voltage: 220VAC, power dissipation <5W
2. Temperature measuring accuracy: ± 1° C
3. Temperature measuring range: 0-102 ° C
4. Temperature control precision:± 1° C
5. Water level display: Five classes
6. Power of controlled booster pump/ribbon heater power: 220V AC, ≤ 750W
7. Power of controlled electric heater: 220V AC, ≤ 1, 500W, 3000W can be customized
8. Leakage Current: ≤10mA/0.1s
9. Electromagnetic valve parameter: 12V DC, pressurized or non-pressurized
Operating pressure of Pressurized valve: 0.02 to 0.8MPa , apply to direct water supply
Non-pressurized valve: 0.0MPa , apply to water tank supply or low water pressure supply

Main Function


1. Power on self-test
2. Water level preset
3. Time display
4. Water temperature preset
5. Water level indication
6. Water shortage alarming
7. Water shortage loading
8. Water full alarming
9. Temperature-control water loading
10. Manual water loading
11. Water temperature indication
12. Timing water loading
13. Compulsive watering
14. Low pressure water loading
15. Power-off memory
16. Anti-dry heating protection
17. Timing heating
18. Constant temperature heating
19. Intelligent heating protection
20. Water level sensitivity setting
21. Overflow automatic proction
22. Automatic pressurization function
23. Pipe warm preservation
24. Electric leakage protection

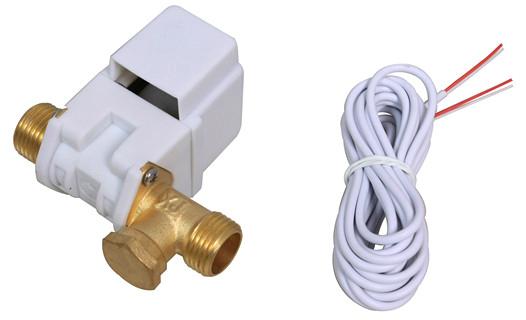

Each controller including one sensor and one valve. The price has included all the parts.
