SINGLE WALL CORRUGATED PIPE EXTRUSION LINE

SINGLE WALL CORRUGATED PIPE EXTRUSION LINE
Model:20-50PE
Brand:QINGDAO PARTNER
Origin:Made In China
Category:Industrial Supplies / Rubber & Plastics Machine
Label:corrugate pipe machi , corrugated pipe line , corrugate pipe extru
Price: ¥250000 / pc
Min. Order:1 pc
Inquire Now
点击这里给我发消息

Product Description

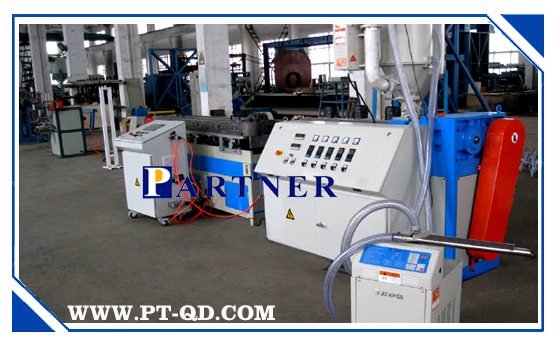

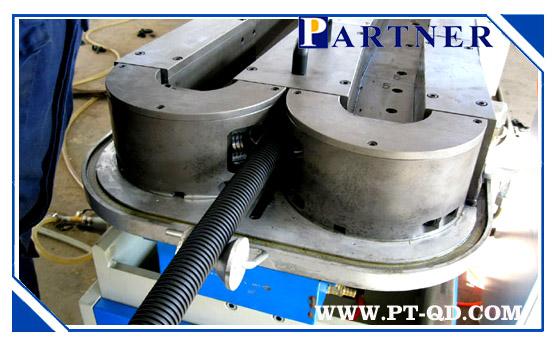

SINGLE WALL CORRUGATED PIPE EXTRUSION LINE

Using PVC, PE, or PP as a raw material, the single-wall corrugated pipe has excellent characteristics of corrosion resisting, anti-abrasion, high strength and flexibility, etc. It has been widely applied for cable protection, outlet tubes of washing machines, ventilating pipes of vacuum cleaner, and so on. Our single-wall corrugated pipe line has advantages of accurate forming, reliable performance, high speed and efficiency, and easy operation.The performance index reaches the leading level in the world.



Main Technical Parameter

Model

Pipe range

(mm)

Extruder

model

Max output

(kg/h)

Max hauling speed (m/min)

Total installed powerKw

Line length

(m)

DBP-50PE

20-50

DE65-34

290

25

115

10

DBP-50PVC

20-50

DE-45

120

15

60

10

Payment Terms:TT
SINGLE WALL CORRUGATED PIPE EXTRUSION LINE 1SINGLE WALL CORRUGATED PIPE EXTRUSION LINE 2SINGLE WALL CORRUGATED PIPE EXTRUSION LINE 3SINGLE WALL CORRUGATED PIPE EXTRUSION LINE 4SINGLE WALL CORRUGATED PIPE EXTRUSION LINE 5
