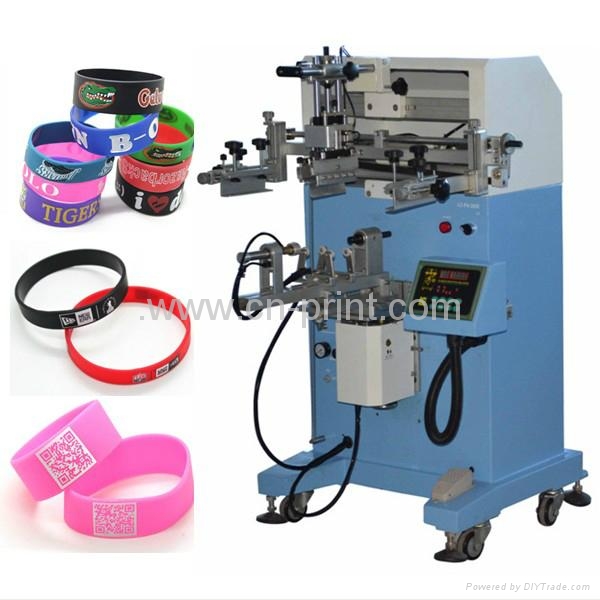

Our cylinder screen printer is multifunctional screen printing machine. it  suitable to print on flat,

round, oval shaped products.such as metal, plastic, ceramic, glass, wood etc.Printing objects such as

lipstick, cosmetic bottles, scour bottles, drink bottles, oil-filter shell etc.


Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2,

3^colors.


Parameter:

1. Model number: LC-PA-400E

2. Product appearance: Round /oblate /flat

3. (Round)Max. Printing diameter: Φ120mm

4. (Round)Max printing arc length: L: 370mm

5: (oblate)Max printing diameter: 120mm

6:(flat) Max printing area: 320*; 220mm

7:Printing Speed: 1200 PC/H

8: Machine/ Weight: 145kg

9. Air pressure: 0.5Mpa

10. Voltage power: 220V/ 60HZ or 110V/50HZ

Package dimensions: 104*94*147cm

Package weight:  290kg

Model number	LC-PA-300E	LC-PA-400E	LC-600E	LC-700E	LC-1200E
(Round)Max Printing diameter	82 mm	120mm	180mm	220mm	375mm
(Round)Max printing area	300×260mm	300×360 mm	300×570mm	350×670mm	420×1170mm
(oblate)Max printing diameter:	420mm	500mm	/	/	/
(flat) Max printing area	260*220mm	320*; 220mm	/	/	/
Max Workpiece rake	<14°	<14°	<14°	<14°	<14°
Air pressure	6bar	6bar	6bar	6bar	6bar
power	50W	50W	50W	50W	50W
Voltage	AC110V/220V	AC110V/220V	AC110V/220V	AC110V/220V	AC110V/220V
Printing speed	1300P/H	1200P/H	1100P/H	900P/H	800PH
Machine appearance（mm）	850×850×1280	1080×850×1280	1200×1100×1450	1200×1180×1450	1720×1600×1650
Machine weight	120kg	145kg	200kg	210kg	230kg


Advantages

1. Fully automatic control by microcomputer & easy handling

2. Four figures automatic counter

3. Round printing function (taper section)

4. Automaticoil scrabbing, oil return and lifting table

5. Adujustability of routs and speeds

6. Self-poise scraper to balance printing pressure

7. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)

8. High precision and easy & quick adjustability

Main Parts FESTO cylinde made by Geramny

Application area: detergent bottles,Pens,beverage bottles,cups, cans,Cosmetics package box,

lipstick tube


Testing Please provide:

1.110V or 220V power supply.

2. 5-7 bar compress air.

3. Esposal screen plate 1 pcs.

4. A jig 1pcs.

5. 5-10 pcs product samples.

Price Terms ---FOB or CFR

Payment Terms --T/T or L/C

Packing ---Wooden case

Lead Time--- 7 days after confirm Payment.

SKU --18set

Standards Certificate--- CE

Machines Fittings ---Screen Cliche

Gross Weight ----290KG

Main Parts FESTO cylinde made by Geramny

Application area detergent bottles, Pens, beverage bottles, cups, cans, , Cosmetics package box, lipstick

tube
