Application:

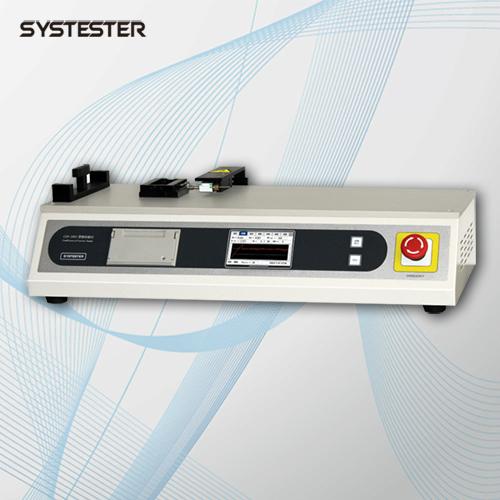

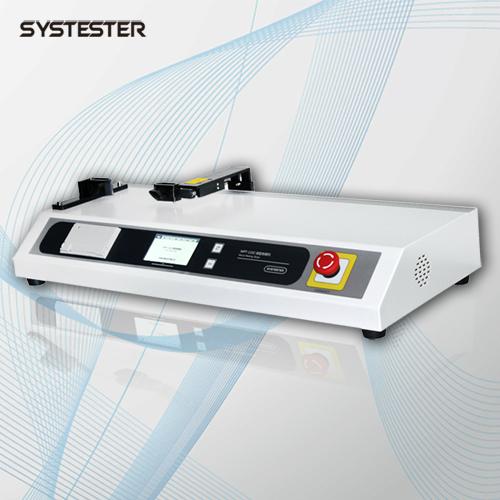

Paper-plastic composite films coefficeint of friction testing machine applies to plastic films, laminated films, foils, sheets, rubber, paper, paperboard, wood, brake pad, tyre, windshield wiper, conveyor belt, hair, metal, carbon rod, catheter, artificial skin etc testing of static and dynamic coefficient, especially used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.



Features:

1: Micro-printer built-in.

2: Designed based on ISO, GB standard.

3: Highly accurate load cell.

4: Test speed can be set freely through touch screen.

5: Keyboard + touch screen operation.

6:One touch to start a new test.

7: 2 patents and 2 counts of software copyright registration.

8: DB9 RS232 communication port.

9: Professional computer software supporter.

10: Wide range sample thickness test is available.

12: Overload, limit position protection.

13: Real color TFT LCD display.

14: Various non-standard test & analysis functions is available.

15: Low power consumption.

16: Ethernet communication module is optional.



Technical indexes:

Load cell range:customization

Accuracy:0.5

Max travel distance:400mm

Sled mass:200g,500g   customization

Test speed:0~300mm/min

Sample thicknee:30mm  optional

Power supply:AC220V 60Hz

Power consumption:21W

Dimension:650mm(L) *340mm(B)* 210mm(H)

Net weight:22kg



Standards:

ISO 8295, GB 10006, GB/T 17200



Configuration:

Delivery: main unit, sled 200g.

Optional: Professional computer software, communication cable, non-standard sled, calibration assemblies, LMIS system.
