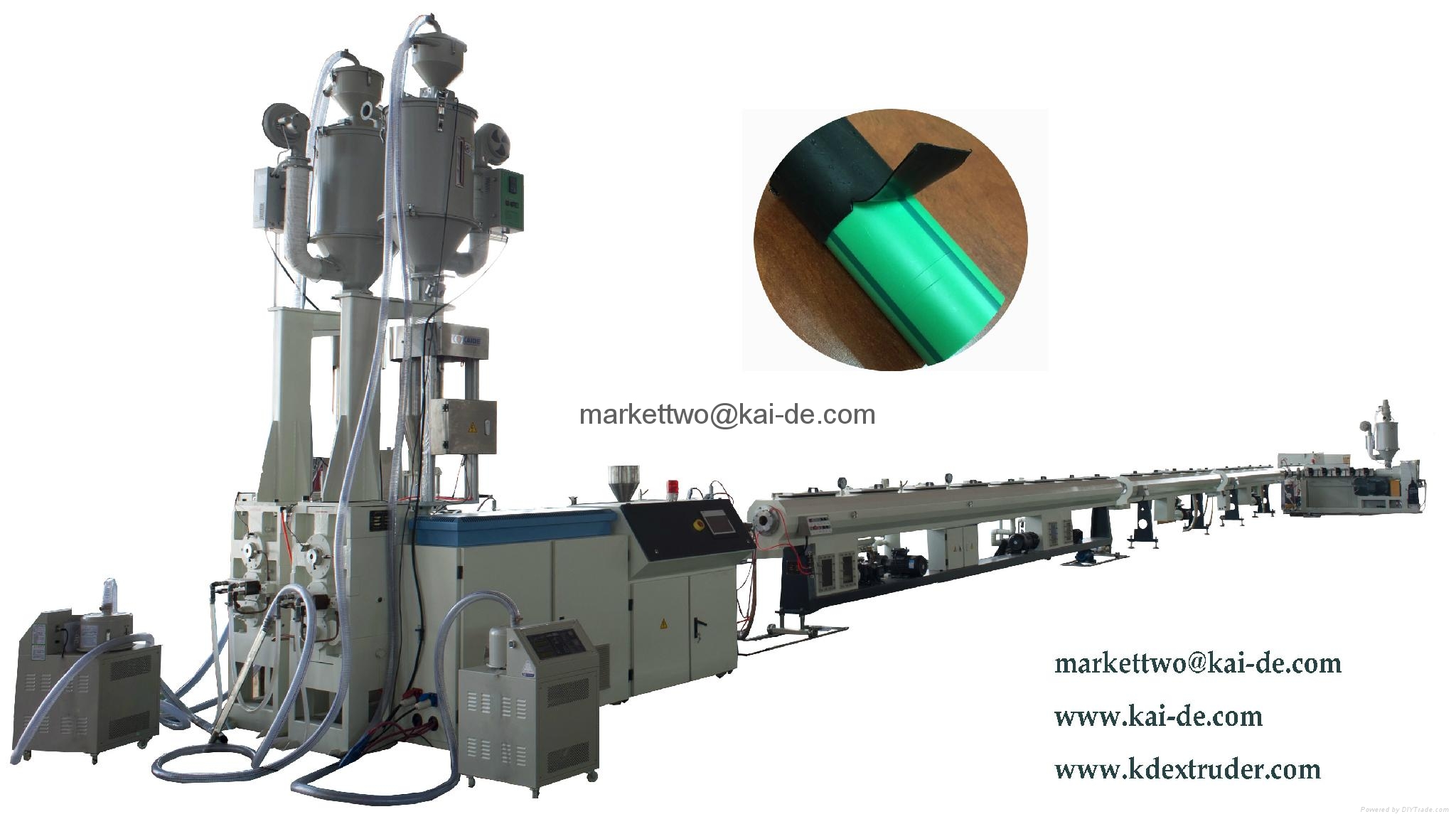

4 Layers PPR-GF-PPR Pipe Making Machine

4 Layers PPR-GF-PPR Pipe Making Machine
Model:PPR-GF-PPR Pipe
Brand:KAIDE
Origin:-
Category:Industrial Supplies / Rubber & Plastics Machine
Label:PPR PIPE MACHINE , glassfiber pipe mach , ppr pipe line
Price: ¥10 / SET
Min. Order:1 SET

Product Description

The production line to produce 4 layers PPR-GF-PPR pipe, also can be used to produce singly layer PPR pipe, 3 layers Glassfiber PPR pipe.

Line Model Screw Diameter L/D Production Scope Production Speed Nominal Power
SJ-60 Ф60/65/65mm 36/3/333:1 ф20-63(110)mm 20m/min 165KW
SJ-65 ф65/65/65mm 33/33/33:1 ф20-63(110)mm 15m/min 119KW

● Gravimeter System

High precise Gravimeter control system of is applied in this glassfiber PPR pipe production line.
(1)It is used for measuring & calculating and precise control of pipe weight per meter and its extrusion output, to realize the constancy of pipe weight.
(2)The application of this system can shorten the start-up time, improve the produced pipe quality, and save raw material.

● Co-extrusion die head
(1)Patented specially designed adjustable co-extrusion die head, can ensure even thickness of three layers,
(2)Each layer thickness can be adjusted freely; no need to adjust the extruder’s rotating speed.

● Haul-off machine
(1)The haul-off machine adopts structure of high speed multi-group roller clamping type.
(2) Completely overcomes the vibration & skip problems in the traditional mode, ensuring high-speed stable pulling.

● PE Anti-UV Layer Extruder
(1)PE Layer thickness about 0.6mm-0.8mm, this PE Anti-UV layer extruder is specially designed for PE raw materials extruded.

● Manufactured Pipe
What is the four layers refer?
① The outer layer is PE Anti-UV layer with thickness 0.6mm-0.8mm
② The second layer is PPR layer
③ The third layer is glassfiber layer
④ The forth layer is PPR layer .

This special 4 layers fiber reinforced PPR pipe is mostly suitable for high temperature hot water transporting in outdoors , and the PE Anti-UV layer can lengthen the lifespan of the pipe, resistance the ultraviolet rays, with wide application in the areas with strong sunlight and solarization.
