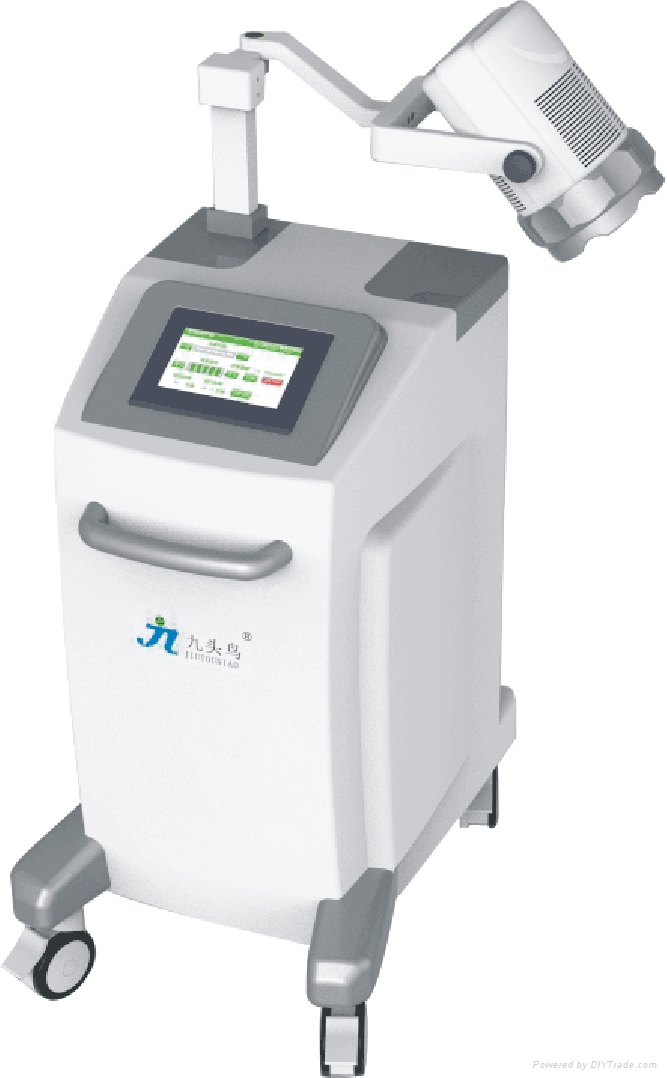

JTN-4001 series of red light treatment is mainly applied to the boils, carbuncle, herpes zoster, mastitis, soft tissue injuries, knee arthritis, ulcers, wounds healing, bedsore.

Basic technical parameters:
Output light band: visible light (red) 580nm ~ 680nm;
Output center wavelength: 640nm ± 15nm;
Spot and optical power density:
Optical cup area of ​​33 c㎡ ± 7c㎡,
Optical cup plane outside the central axis of the optical power density ≥ 80 mW / c㎡ ± 16 mW / c㎡;
The highest optical power at the center of the chip:
Light cup area of ​​53 c㎡ ± 10 c㎡ lamp,
Chip center surface optical power density of 1200 mW / c㎡ ± 240 mW / c㎡.

Lifting device: height adjustable range: ≥ 400mm;
Lifting speed of electric lifting model: ≥35mm / s.
Light spot area: ≥53 c㎡
Timing range: 0-99 minutes (showing the number of time required for exposure);

Contraindications:
patients with a history of photosensitive reactio,
pacemakers, newborns, infants and young children.
