Raw Materials

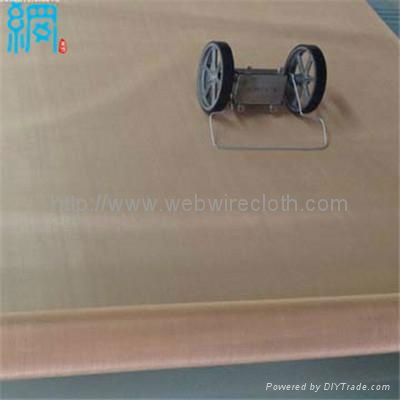

Our phosphor bronze wire mesh is made from phosphor bronze wire

Woven Types
Plain weave: Each warp wire passes alternately over and under the wires running traversely through the mesh at 90 degree angles.It is the most commonly used and simplest wire mesh weave.Warp and weft wires are normally of the same diameter.It is strong and hard-wearing.
Twill weave:Twill weave is made with each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. The twill weave allows a heavier wire diameter to be used than would be possible in plain weave to obtain greater strength, density, or corrosion resistance

Characteristics
1)Square hole,warp wire and weft wire are of equal size.
2)Accurate in mesh size,high flow rate.
3)High efficient screening,good stability,high opening rate
4)Flat surface,wear-resistant,firm in structure,easy to clean

Application
1)Chemical filtration
2)Decorative mesh
3)Filters for solid,liquid
4)Oil strainers
5)Test sieves
6)EMI/RFI shielding mesh

Mesh Sizes
Mesh 6mesh to 400mesh
Roll width 1000mm to 1200mm
Length 30m rolls
