DVB-T Modulation  HD Video Transmitter Receiver

SG-8M03HD & 8MHRX



Digital TV broadcasting DVB-T COFDM transmitter

SG-8M03HD is full hd image transmission system equipment,standard DVB-T modulation.The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate,and then improve image quality.It can be the lowest bit rate to achieve the best quality of image.



Features:

1) Compact designed,lightweight;

2) Full hd resolution,low delay;

3) High performance,low cost

4) Special for UAV/Drones long range video communication;

5) Maximum rf output 3Watt,can support 40km LOS range.

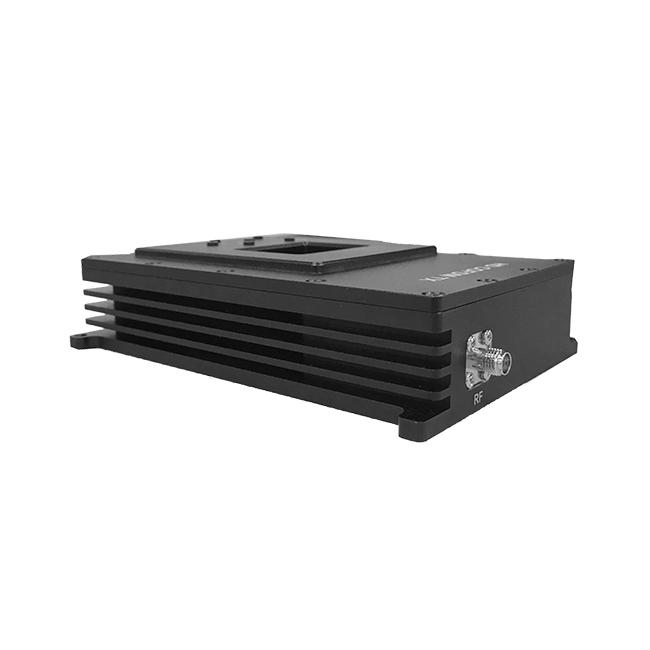

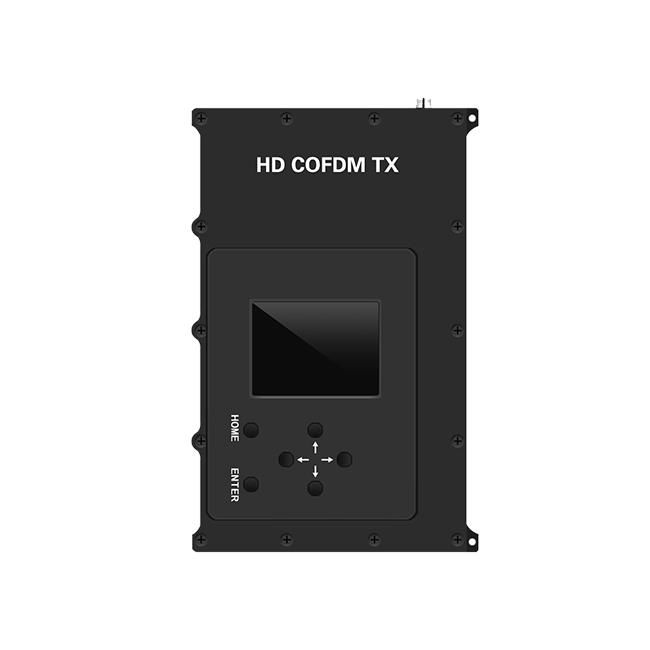

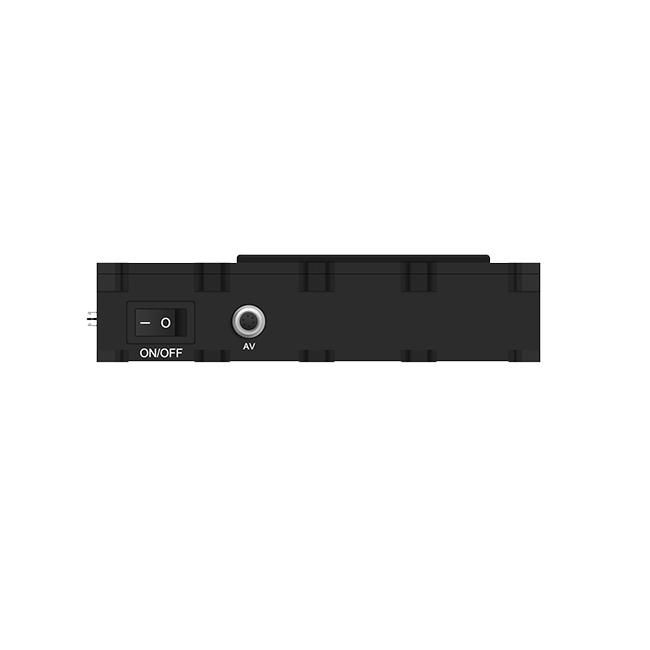

Transmitter photos:

Digital TV broadcasting DVB-T COFDM transmitter







Tx specifications:



Model SG-8M03HD



Power supply

DC 7-16V input/output

Power consumption

<5W

Modulation

DVB-T

Modulation type

QPSK/16 QAM/64 QAM

Scrambling way

Manual settings ON/OFF

RF power output

1-3Watt  (2K mode)

RF bandwidth

8MHz

AV input

HDMI

Resolution

HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution

Video compression

H.264/MPEG-4/MPEG-2

Antenna output

50Ω,SMA or "N" type Connector

Working frequency

300MHz~999MHz (optional)

Step frequency

1K Steps

Guard interval(GI)

1/4, 1/8, 1/16, 1/32 (optional)

Code rate (CR)

1/2, 2/3, 3/4, 5/6, 7/8 (optional)

FFT

2K or 8K

MER

>34dBm

LCD display

Showing working status and parameters

Parameter setup

Manual operation by buttons

Dimension

153*100*34mm

Weight

485g











Portable Receiver:Digital TV broadcasting DVB-T COFDM transmitter







Features:

1)Small in size,simple operation

2)Provide sixteen groups of frequency range

3)Full hd resolution

4)Used with the specified transmitter model SG-8M03HD









Rx specifications:



SG-8MHRX



Working Voltage

DC input 7-24V

Power consumption

<4W

Modulation

DVB-T

Sensitivity

-82dBm (64QAM, 8M/FFT:8K, GI:1/32, CR:7/8)

Working frequency

300MHz~999MHz(optional), 16 groups of frequency choice

RF bandwidth

8MHz

AV output

HDMI

Resolution

HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution

Video compression

H.264/MPEG-4/MPEG-2

RF connector

N type

LED light

Turns red when the machine is power on

Work indicator

Automatically search signal after power-on,blue color and flash; While receive signal,the blue light remains on.Otherwise,lights out.

Scrambling way

Manual settings ON/OFF

Dimension

197*124*51mm

Weight

1024g







     Attached is the Frequency Table of DIP Switch:



Digital TV broadcasting DVB-T COFDM transmitter









Product application:

TESTING EQUIPMENTS
