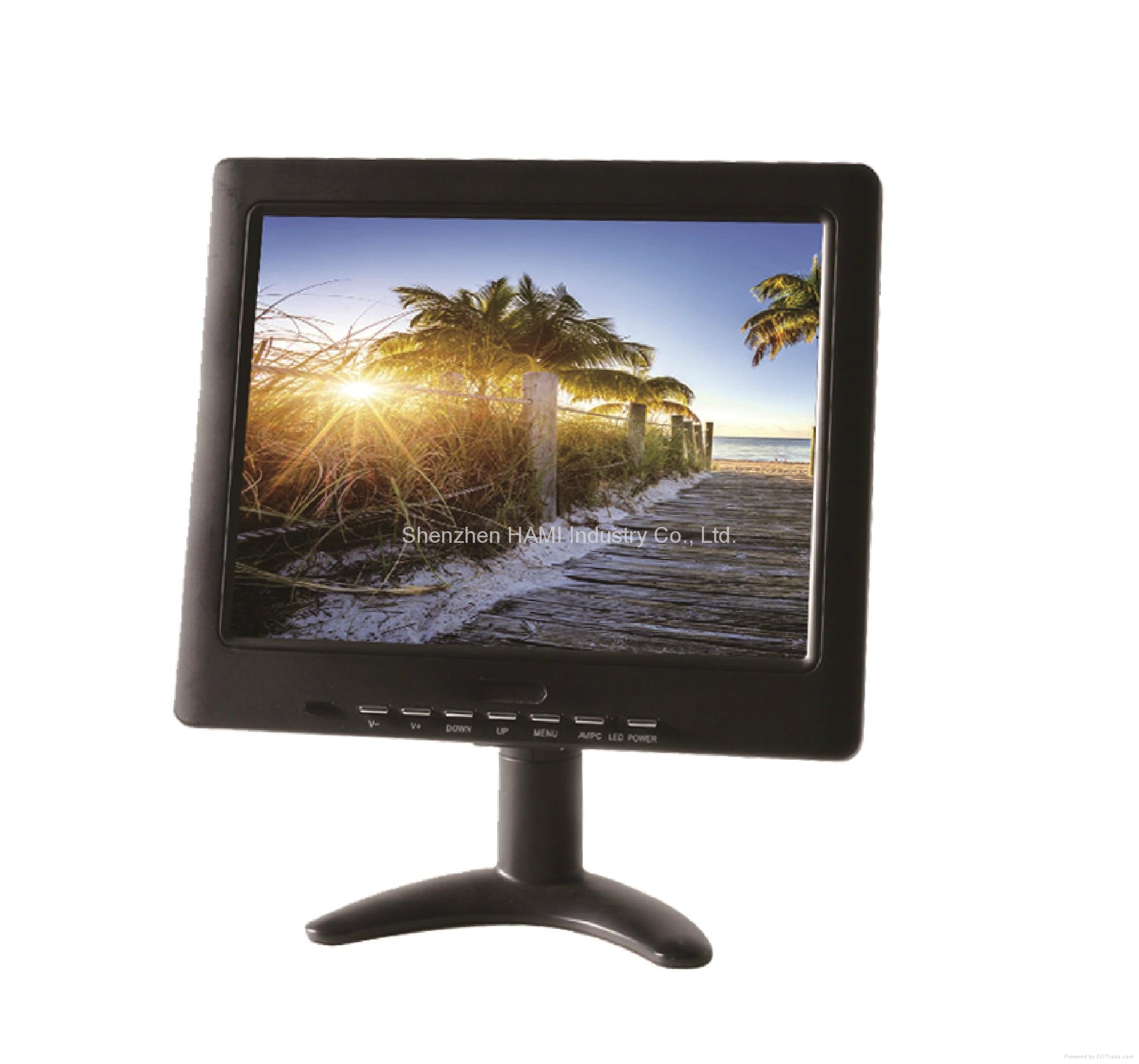

10" HDMI TFT bus monitor display with 800*600 resolution

10" HDMI TFT bus monitor display with 800*600 resolution
Model:H102A
Brand:HAMI OR N/A
Origin:Made In China
Category:Transportation / Car Accessories / Car Audio & Video
Label:TFT LCD MONITOR , pc monitor , BUS TERMINAL
Price: US $50 / pc
Min. Order:200 pc

Product Description

  • Model: H104A
  • Display: 10.4” TFT High Definition Digital monitor (4:3)
  • Languages: English, Russian, French, Spanish, German, Italian and Chinese
  • Resolution: 800x600 pixels
  • Luminance: 250 cd/m²
  • Contrast ratio: 350:1
  • Viewing angles: 120°/120°
  • Input voltages: 110 to 240V AC
  • Output voltage: 12V DC
  • Operating temperature: 0 to 50°C
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C
  • Frame color: Black
  • Dot pitch: 0.264 mm
  • Horizontal frequency: 30~61KHZ
  • Field frequency: 60~75KHZ
  • Color262,144colors
  • TV System: PAL/NTSC4.43/NTSC3.58/SECAM
  • Audio formatsBG/DK/I/M
  • Video input: 1.0Vp-p@75ohm
  • Audio input: 500mVrms
  • Power consumption: (max) 9W
  • Stand-by power consumption:  <1.0W
  • Storage humidity: 5%~95%
  • Loudspeaker output: Max.2.0W Output(16Ω)
  • Earphone output: Max.10mW Output3.5φStereo Jack,32Ω)
  • Response time: 16ms



Packing

  • Product dimensions: 25.4 x 21 x 3.7cm
  • Gift box: 34.8×25.9×7.5cm
  • Net weight: 1.80kg
  • Carton size: 40*35.8*53.5cm
  • Carton qty: 10pcs
  • Features: With VGA, AV, BNC and HDMI input
  • Built-in loudspeaker, headphone jack makes convenient for external headphones or speaker box
  • Accessories: Manual, Stand, AV cable, VGA cable, remote controller and power adapter
  • Certification: FCC, CE, RoHS Directive-compliant, CCC



  • Mainly used in industrial endoscope, video microscope, industry Smooth degree of coplanar detector, dimensional detector, hot-press BGA rework station, Laser engraving equipment, Laser marking machine, The rocker camera security, video surveillance, POS cash register system and other similar areas.
  • Company Profile
  • With over 10 years industry experience, Shenzhen HAMI Industry Co., Ltd. specializes in LCD monitors and modules for industrial or security applications, and touch screen LCD monitors. Industrial purpose trend makes most of our product used in Industrial video microscope, security monitoring, vehicle multi-media computer, touch screen checking and consulting system, VOD system, POS terminals and so on. Reliable models used in Olympic Games.



  • Why HAMI
  • Over 12 years experience in LCD monitor field
  • Own factory with own molding
  • 1 year warranty

Less than 1% defective rate

Payment Terms:TT
