Directly Forming to Square&Rectangular tube mill

Directly Forming to Square&Rectangular tube mill
Model:LW600
Brand:Forever
Origin:Made In China
Category:Industrial Supplies / Machinery / Welding Machinery
Label:Tube forming line , tube mill line , tube machine
Price: US $8000000 / pc
Min. Order:1 pc
Inquire Now

Product Description

Directly Forming to Square and Rectangular Tube mill

The square or rectangular shaping is formed out before the tube welding, with important advantages in terms of power and material cost reduction.

ADVANTAGES:

  • Great flexibility and possibility of modify the tube dimension without any roll change (in forming - welding - sizing - straightening) for any size included into the mill size range.
  • Extremereduction of mill set up time.
  • Elimination of all cost for roll sets.
  • Increase of productivity and reduction of stock and relative costs.
  • Reduction of manpower thanks to the complete automatization of the mill operation and adjustments.
  • Minimal and easy maintenance.
  • Display with automatic illustration of tube section for each production step.
  • Easy use of software for set up of any production parameter, including tube angle radius.



Model

LW480

(120)

LW600

(150)

LW800

(200)

LW1000

(250)

LW1200

(300)

LW1600

(400)

LW2000

(500)

LW2400

(600)

Square Size Range

(mm)

Max.

120×120

150×150

200×200

250×250

300×300

400×400

500×500

600×600

Min.

60×60

70×70

80×80

100×100

120×120

180×180

250×250

300×300

Rectangular Size Range

(mm)

Max.

100×140

100×200

150×200

150×150

150×150

200×200

150×150

150×150

Min.

60×80

60×80

80×100

80×120

120×140

180×220

250×300

300×350

Thickness Range

(mm)



1.5-5.0

2.0- 6.0

2.0-8.0

3.0-10.0

4.0-12.7

5.0-14

5.0-18.0

6.0-22.0

Strip Width(mm)



480

600

800

1000

1200

1600

2000

2400

H.F Welder



400kW

500kW

600kW

800kW

1000kW

1000kW

1200kW

1200kW

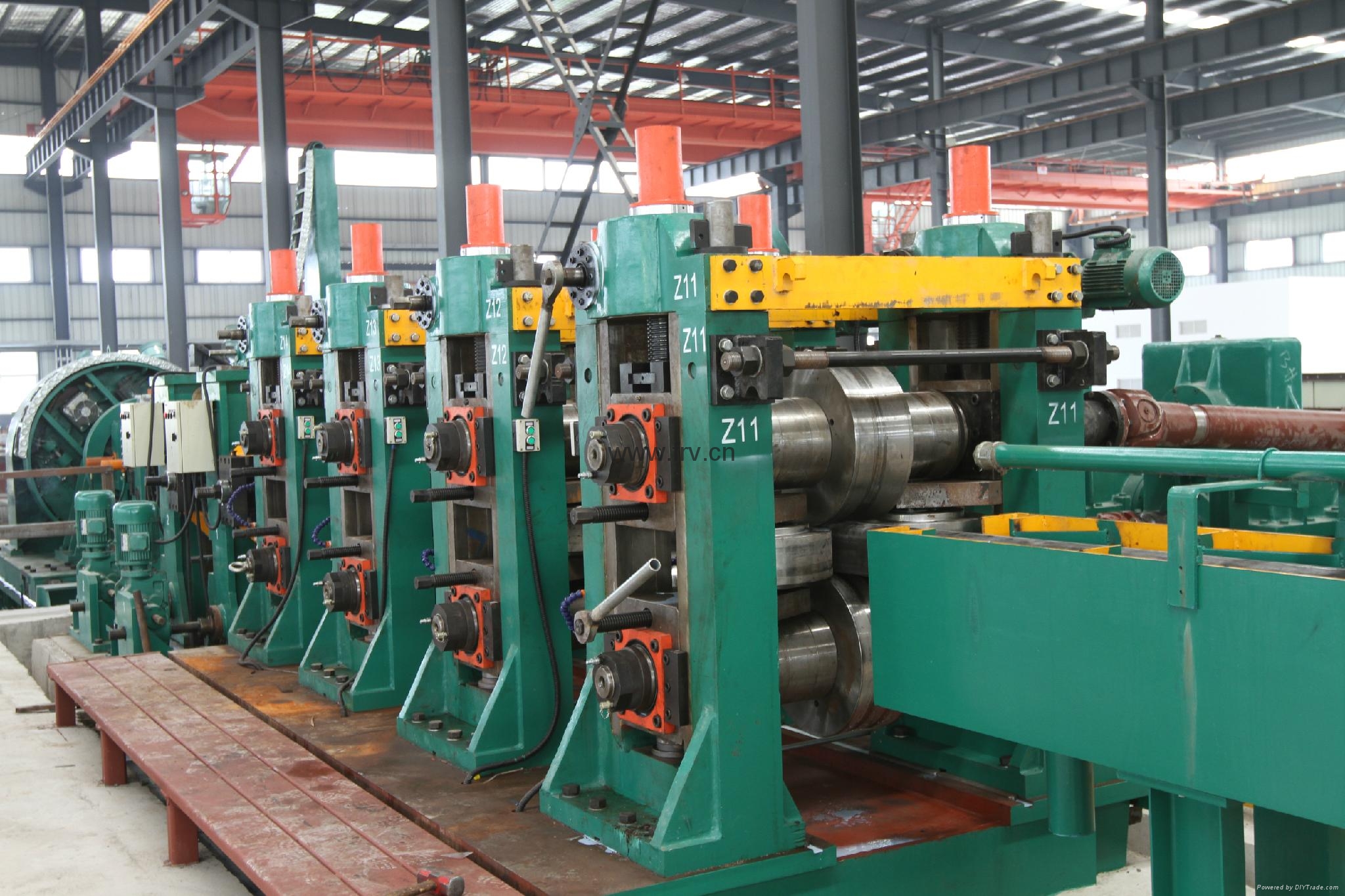

Directly Forming to Square&Rectangular tube mill 1
