Model: | AT-MD |
---|---|
Brand: | ATMARS |
Origin: | Made In China |
Category: | Industrial Supplies / Pharmaceutic Machine |
Label: | stability chambers , test chambers , testing equipment |
Price: |
US $10000
/ pc
|
Min. Order: | 1 pc |

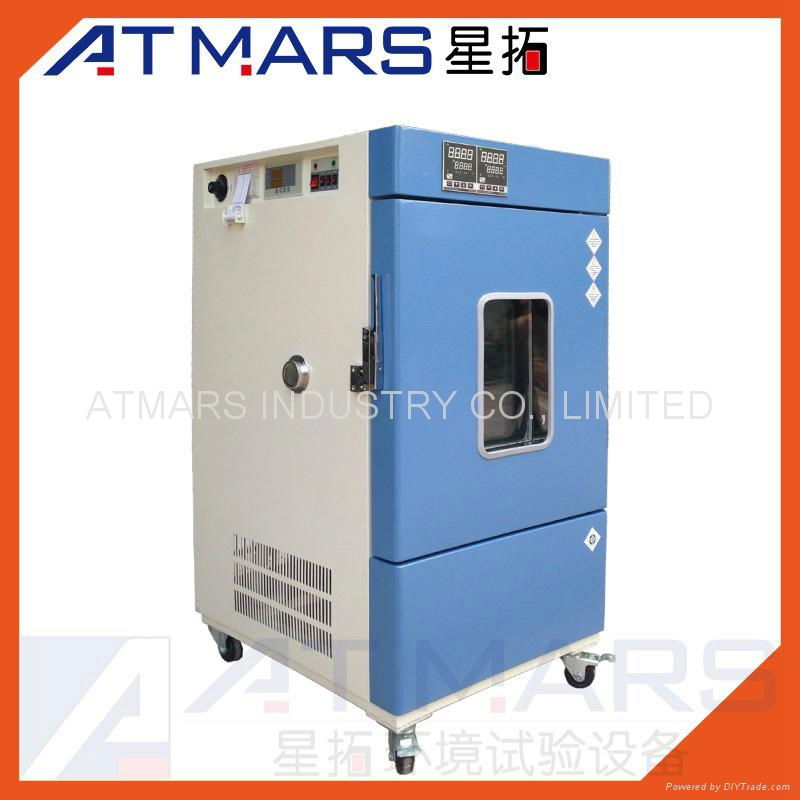

ATMARS pharmaceutical stability chambers are specifically designed for steady state, accelerated aging, shelf life testing, expiration date testing and more of pharmaceuticals. Custom-designed chambers are available.
Product Features
Independent over-temperature protection with automatic defrosting function and long-term continuous operation
The door is equipped with a key lock and has a large observation window
Interior chamber has an internal storage tank
Imported refrigeration compressor unit to ensure stable and reliable testing
Working chamber uses mirror surface SUS304A stainless steel, which is acid-resistant, corrosion resistant and easy to clean
Temperature/humidity deviation alarm (near sound and light alarm, remote door room alarm, SMS alarm); One key release function setting for lofting or withdrawing pharmaceutical specimen
Condensing wastewater can be recycled which can save energy and extend the frequency of water use
Using imported France polymer temperature and humidity sensors for precise humidity measuring, no maintenance
Special 3Q certification technical services: IQ (installation confirmation), OQ (operation confirmation) and PQ (performance confirmation)
Standards and Test Methods
GB10586-2008
IEC60068-3-5
GB-8196-87
GB-52261-2002
GB-12265-90
ICH2003 Q1A (2) 2015
Specifications of Pharmaceutical Stability Chambers | |||||
Model | AT-220MD | AT-500MD | AT-1000MD | AT-2000MD | AT-3000MD |
Interior Dimension (WxHxD mm) | 600x600x600 | 600x600x1300 | 950x850x1200 | 1200x1100x1500 | 1200x1200x2000 |
Exterior Dimension (WxHxD mm) | 1160x760x1200 | 1160x760x1900 | 1510x1010x1800 | 1760x1260x2100 | 1530x1740x2300 |
Packing Dimension (WxHxD mm) | 1270x870x1380 | 1270x870x2080 | 1620x1120x1980 | 1880x1380x2280 | 1670x1850x2480 |
Product Weight (KG) | 180 | 270 | 350 | 480 | 650 |
Layers of Loading Clapboard | 3 | 6 | 5 | 7 | 9 |
Number of Compressor (Set) | 2 | 2 | 3 | 4 | 4 |
Installated Power (W) | 1800 | 2300 | 2300 | 3500 | 3500 |
Operating Power (W) | 600 | 700 | 700 | 1200 | 1200 |
Power Supply | AC 220V 50Hz | ||||
Temperature Range | 15℃~65℃/0℃~80℃ | ||||
Temperature Constancy (±℃) | 0.5 | ||||
Temperature Deviation (±℃) | 1.0 | ||||
Humidity Range (R.H) | 15%~95% | ||||
Humidity Deviation (±R.H) | 3% | ||||
Remarks: 1. We reserve the right to change specifications without prior notice; 2. Customized sizes and configurations are available. |
