Spartan3S400 Eval. Board

Spartan3S400 Eval. Board
Model:RAY-FVB-02-304
Brand:rayemit
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Circuit Board
Label:Signal Processing , DSP , Embedded processing
Price: US $200 / pc
Min. Order:1 pc

Product Description

Short Description:

The Spartan3S400 evaluation board comes with the essential onboard peripherals needed in small implementing FPGA projects for rapid prototyping such as ADC and DAC. Moreover module can be used for educational purposes. Module can work independently, or as control module in a bigger design.

Details:



Xilinx XC3S400-4TQ144 FPGA

Operating frequency 100MHz

XCF04S, onboard serial FLASH memory for storing code

JTAG programming and configuration port, RS232 port

8 User LED, 8-position user DIP switch, 4 user push button switches, Reset push button switches

Two GPIO expansion connectors

ADC: AD9226 12-bit @ 65 MHz

DAC: AD768 16-bit high speed (up to 30 MSPS) digital to analog convertor



Applications:

General purpose signal processing applications

Rapid Prototyping

Embedded processing

Educational Purposes


For more information please visit www.rayemit.com

Payment Terms:TT/Visa card

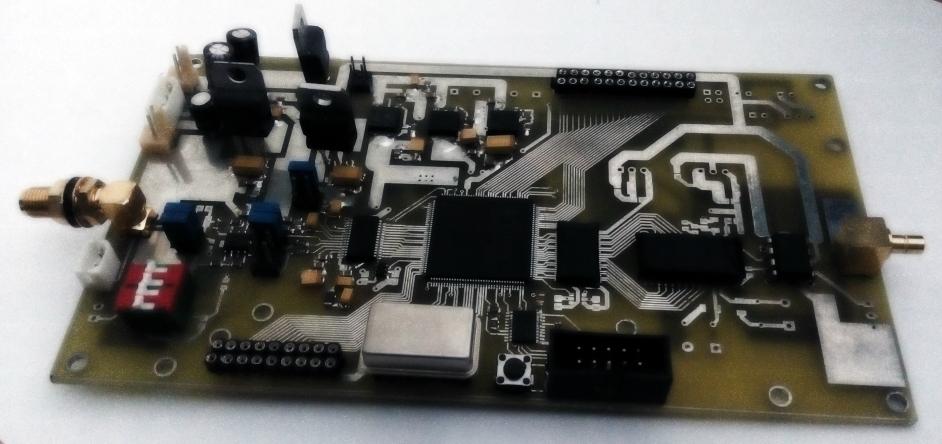

Spartan3S400 Eval. Board 1
