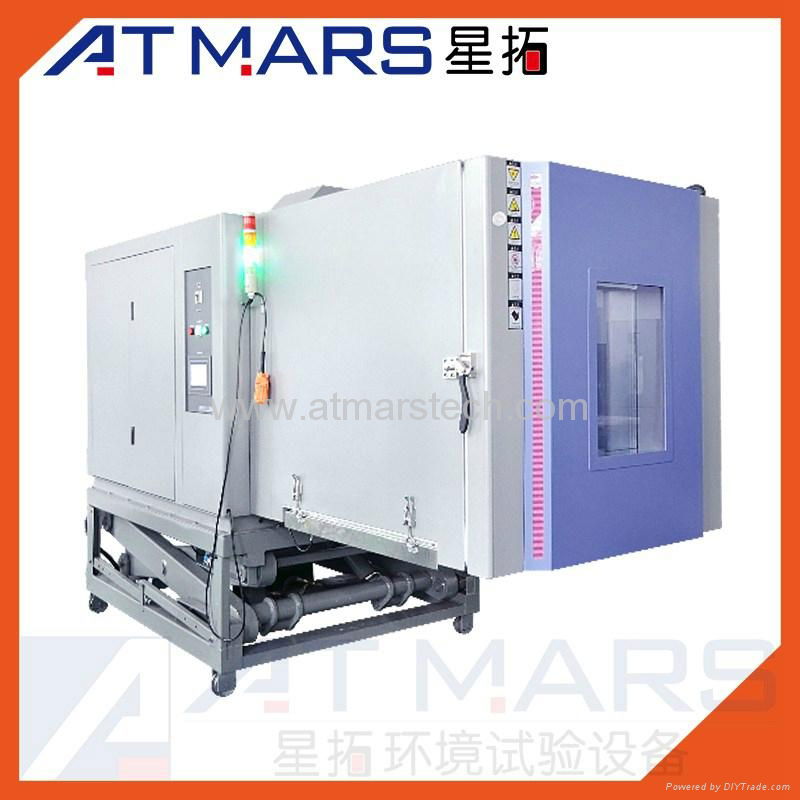

ATMARS Environmental Temperature Humidity Vibration Integrated Test Chamber

Model:	ATV
Brand:	ATMARS
Origin:	Made In China
Category:	Industrial Supplies / Other Industrial Supplies
Label:	test chamber , vibration tester , humidity chamber
Price:	US $50000 / pc
Min. Order:	1 pc

Inquire Now

Product Description

Matched with a vibration table temperature humidity vibration test chamber is a special test chamber that can meet comprehensive test requirements of temperature, humidity and vibration.

Product Features
Combined structure of test chamber and refrigeration system in one which is compact, beautiful and easy to operate
Water cooled cooling system with semi-hermetic compressor
LCD touch screen with RS232 communication interface
According to customers’ requirements vibration table models are optional. Even so, the sealing of cold, heat and steam assured and so does to good mechanical transmission of vibration table

Standards and Test Methods
GB/T 10586-2006
GB/T 10592-2008
GB/T 2423.1-2001
GB/T 2423.2-2001
GB/T 2423.4-2008
GJB 150.3-86
GJB 150.4-86
GJB 150.9-86
GJB 150.16-86

Specifications of Temperature, Humidity and Vibration Integrated Test Chambers
Models		ATV Series
		408	1000
Interior Dimension (WxHxD mm)		600x850x800	1000x1000x1000
Interior Volume (L)		408	1000
Power Supply		AC 380V±10% 50Hz, 3 Phase 4 Wires + Ground Wire
Performance	Ambient Temperature (+℃)	5～35
	Temperature Range (℃)	-70～+150
	Temperature Constancy (±℃)	≤0.5
	Temperature Uniformity (±℃)	2.0
	Humidity Range (R.H)	20%～98%
	Humidity Constancy (±R.H)	2.50%
	Humidity Deviation	When Humidity ≤ 70% R.H, ±3.0% R.H Humidity >70% R.H, ±5.0% R.H
	Cooling Rate	≤5℃/min or ≤10℃/min (At Temperature Range -55℃～+80℃)
Material	Interior	SUS304 Stainless Steel
	Exterior	Electrostatic Spray Coating Finish Stainless Steel or Stainless Steel (SUS304)
	Insulation	Rigid Polyurethane Foam
Refrigeration System		Semi-hermetic Compressor Water Cooled
Heater		Iron-chrome Wire Heater
Blower		Centrifugal Blower
Oberservation Window Size		470x350 mm, Made of Coated Insulating Glass
Temperature Sensor		Pt100
Controller		Touch-screen Controller
Vibration Table		Custom Made as Required
Safety Devices (Standard)		No Fuse Breaker Compressor Over Pressure/Current/Temperature Protection Fan Overload Protection Dry Combustion Protector Water Shortage Protection
Standard Accessory		1 x Heatproof Oberservation Window 1 x Cable Port (portΦ50mm) 2 x Shelves 1 x Chamberlamp 4 x Casters
Optional Accessory		Special Cable Port, Special Specimen Holder, More Shelves
Remarks: 1. We reserve the right to change specifications without prior notice; 2. Customized sizes and configurations are available.
