Plastic COD Spiral Pipe Making Machine--COD Protection pipe machine

 Plastic COD Spiral Pipe Making Machine--COD Protection pipe machine
Model:碳素螺旋管生产线
Brand:YONGXIN-PIPE EXTRUDER-cod pipe
Origin:Made In China
Category:Industrial Supplies / Construction Machine
Label:spiralpipe extrusion , spiral pipe line , spiral pipe extruder
Price: ¥180000 / pc
Min. Order:1 pc
Inquire Now

Product Description

YONGXIN technoplas Machinery company designs and develops double wall corrugated pipe production line,corrugated pipe extruder,corrugated pipe making machinery,plastic pipe extrusion machinery,plastic pipe extruder by itself.

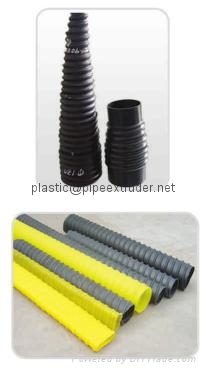

  PE carbon spiral pipe has characteristics of light weight, high strength, corrosion resistance, anti-bend, and non-leaking, bypassing the obstacles and so on. This spiral pipe is ideal protection pipe of electricity and communication cable for its good temperature endurance, convenient and prompt construction and long service life.



     PE carbon spiral pipe production line mainly includes single screw extruder, die, vacuum calibrating water cooling tank, haul-off machine, winding machine and cutting machine.



Single screw extruder: Single screw extruder is especially used for polyethylene material which possesses effective plasticizing and high speed extrusion

Die Head: Standard designed spiral die head and reasonable channel are applicable to produce pipes with smooth inside and outside surface. The helix apportionment style shunt body and big flow space assure the melting material having enough staying time. Best design of low melting temperature caused in little internal pipe stress, smoothing inner and outer pipe surface.

Vacuum calibrating water cooling tank: Optimum spiral copper calibrator is equipped with pre-cooling entrance and powerful vacuum device for high speed extrusion. Unique sizing and cooling modes and special designed spraying nozzle with efficiency water cooling. It is suitable for all polyethylene material co-extrusion.

Haul-off machine: frequency convertor, pneumatic clamping, and simultaneous running with the whole production line.

Winding machine: moment motor and gear reducer.

Cutting machine: high accuracy, low noise and fixed length cutting

. Main Technical Parameter:

Extruder

SJ-90/30

SJ-65/30

Die

ф50-200

ф50-160

Calibrating Tank

QJDX-200

DJSX-160

Haul-off Machine

QYJ-200

QYJ-200

Winding Machine

SQ-200

SQ-200



 Plastic COD Spiral Pipe Making Machine--COD Protection pipe machine 1 Plastic COD Spiral Pipe Making Machine--COD Protection pipe machine 2 Plastic COD Spiral Pipe Making Machine--COD Protection pipe machine 3 Plastic COD Spiral Pipe Making Machine--COD Protection pipe machine 4 Plastic COD Spiral Pipe Making Machine--COD Protection pipe machine 5
