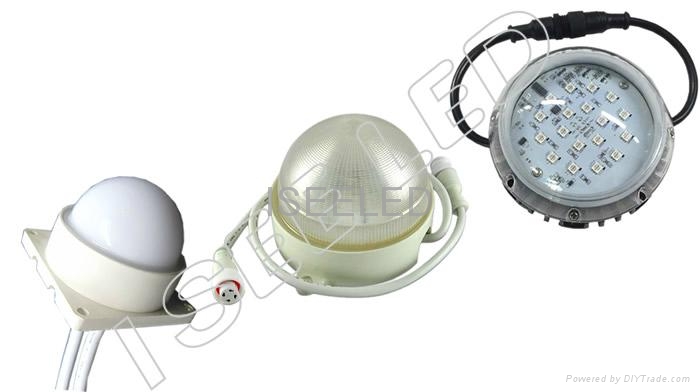

Mini DMX SMD RGB Led Pixel Light

Model:	LED-PL30DMX0301
Brand:	ISEELED
Origin:	Made In China
Category:	Consumer Electronics & Lighting / Lighting / Professional Lighting
Label:	addressable pixel , mini pixel light , dmx pixel light
Price:	US $4 / pc
Min. Order:	20 pc

Inquire Now

Product Description

DMX SMD Pixel Light

Dimension: 30mm up to 120mm

LED pixel Space: 80mm-3000mm

Standard DMX 512 control, 44frames/second, manual or auto-addressing customized

2D pixel mapping to set on the software programming

Protections: short circuit, over current , over temperature

With working life-span at least 50,000hrs

Fast get through input/output signal

Application: adapted for all kinds of installation methods including, stage background, lighting background, hockey area and all kinds of special-shaped

Model NO.	LED-PL30DMX0301	LED-PL50DMX0301	LED-PL100DMX1201	LED-PL120DMX1801
LED type and QTY	3pcs SMD RGB 5050	3pcs SMD RGB 5050	12pcs SMD RGB 5050	18pcs SMD RGB 5050
Emitting angle	120 degree	120 degree	120 degree	120 degree
Color	■■■RGB full color	■■■RGB full color	■■■RGB full color	■■■RGB full color
Operating Voltage	DC 12V	DC 12V	DC 24V	DC24V
Power	MAX=0.72W	MAX=0.72W	MAX=2.88W	MAX=4.32W
Control Protocol	DMX512
Control Mode	DMX Artnet / DMX DVI / Standalone Control

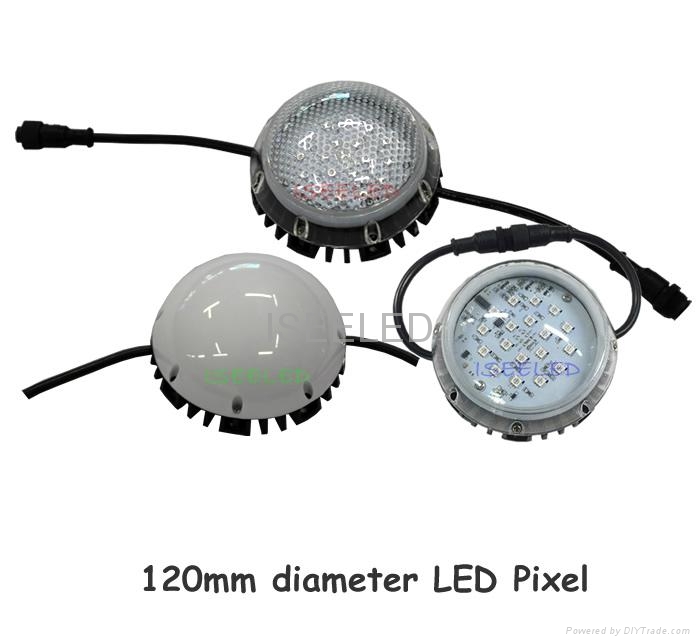

Dimension (housing)	30MM diameter	50MM diameter	100MM diameter	120MM diameter
Base Material	\	ABS	PC/Aluminum	PC/Aluminum
Base Cover	\	White/Black	Silver/White/Black	Silver/White/Black
Cover	PC	PC	PC	PC
Cover Color	Milky/Clear	Milky/Dot/Clear/Diamond	Milky/Dot/Clear/Diamond	Milky/Dot/Clear/Diamond
LED Source Life	50,000 hours, based on test data of LED manufacturer
Temperature	-4℉ to 122℉(-20℃ to 50℃) operating temperature
Humidity Range	0 to 95% non-condensing
Protection	IP65	IP65	IP65	IP65
