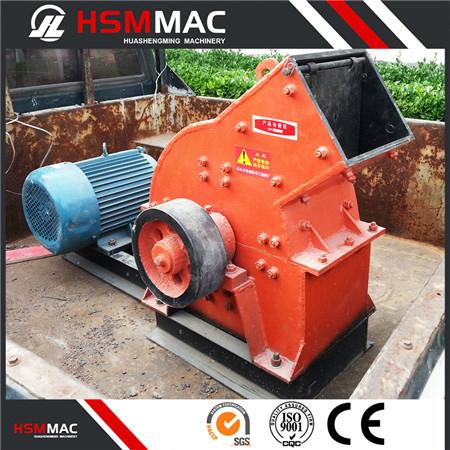

Application Mining Machine Mini Rock Crusher



Hammer Crusher is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture, such as coal, cement, gypsum, alumen, brick, tile, limestone, glass etc.

Hammer crusher can be divided into two kinds: one is single stage hammer crusher and the other is double stage hammer crusher. With the history of producing hammer crusher for more than 20 years, Huashengming Heavy Machinery Factory can provide the most economical crusher as per the customers' different requirements to meet their needs.



Features Mining Machine Mini Rock Crusher

1.Simple Structure, easy operation;

2.Big Crushing Ratio, High Production efficiency;

3.Uniform particle sizes;

4.Discharging sizes can be adjusted depend on customers’ request.



Structure Mining Machine Mini Rock Crusher



Hammer crusher is composed of machine frame, rotor, hammer, impact plate and screen board. According to customer request, can adjust the gap between the grid bars to change the discharging granularity.

Working Principle Mining Machine Mini Rock Crusher

The main working part of hammer crusher is the rotor with hammers. The rotor consists of main shaft, disk, hinge pin and hammers, a sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.

Mining Machine Mini Rock Crusher Technical Parameter

Model	Feeding size (mm) Max	Discharging size (mm) Max	Capaticy (t/h)	Motor power (kw)	Weight (kg)
PC200x300	≤100	≤20	1-5	5.5	500
PC300x400	≤200	≤25	5-10	11	800
PC310x520	≤200	≤25	8-15	18.5	1400
PC600x400	≤250	≤30	10-22	22	2260
PC800x600	≤250	≤35	18-40	55	4800
PC1000x800	≤350	≤35	25-50	75	5900
PC1000x1000	≤350	≤35	30-55	90	8000
PC1250x1250	≤350	≤35	35-65	132	14000
PC1400x1400	≤350	≤35	50-100	280	32000
PC1600x1600	≤350	≤35	100-150	480	37500



Packaging & Shipping

PACKING

Main equipments in nude package, the easy losing, damage, damped will be packed in wood crate or composite board crate.we will satisfy whatever package style customer need in any situation.

SHIPPING

We usually accept EXW, FOB and CIF etc. terms.

1.By sea or by train. we have 20 years cooperate transport company. bestfreight, fast delivery.

2.Send B/L in 3-5 days after ship leaving.

3.will remind you before ship arrival.

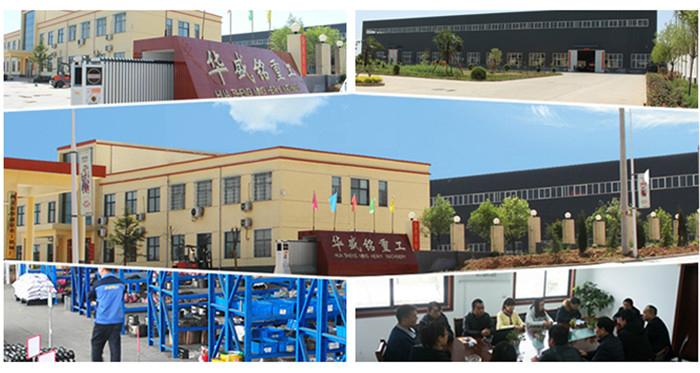

Company Information

Gongyi Huashengming Heavy Machinery Factory is a high-technology enterprise in Gongyi City.HSM machinery owns advanced manufacturing technology and machines and a professional R&D team, we keep on developing new products with new technology, we are able to provide complete crushing and mining equipments and solutions.

We have 20 years experience.Our products got ISO CE BV SGS certificate. If your are interested in any of our machine, pls feel free to contact us.

We will work with you to create a win-win situation, together to create the world famous brand of china.



Our Service

1.Design most suitbale flow chart and layout freely according to your request.

2.Provide operating instruction and relative drawing.

3.We can send 1-2 technicians to the site for guiding the installation and commissioning.

4.We offer training service for free.

5.We offer the components with favorable price.

6.Lifetime Warranty.



FAQ

1. Q: Can I visit your factory?

A: Yes. Many domestic and overseas customers visited our factory every year.

2. Q: What about the warranty of your equipment? Do you supply spare parts?

A: Our warranty is 2 years(24 months), and we can supply spare parts also.

3. Q: Do you provide after-sales service?

A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

4. Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

5. Q: Do you provide producution flow chart?

A: Yes. Our experienced engineers are specialized in designing process flow for stone crushing plant and various ores beneficiation line.



6. Q: Can you test our sample raw material?

A: Yes. You can send your samples to us for testing and analysis.



7. Q: Have you made the whole stone crushing line?

A: Yes. We have made many large&small scale stone crushing line at home and abroad.



Payment:

1: 30% of the total amount shall be paid by T/T as deposit ,balance have to be paid by TT or L/C before delivery.

2: 100% irrevocable letter of credit at sight

Delivery time:

7-10 working days after receiving the advance payment.

Packing:

Machines will be through rusty and moist-proof before delivery; small parts are packed into wooden crates;larger parts are wrapped by plastic sheeting.

Installation:

If required, one or more engineer/engineers will be sent to guide the installation and commissioning of machines; the buyer shall prepare the materials and tools needed,and offer necessary assistance.The actual expenses include accommodation, meal and traveling fee of the engineer,and insurance also should be paid by the buyer. Every engineer should be paid 100 USD per day.

Warranty:

Our warranty is 2 years(24 months), and we can supply spare parts also.

Bank details:

Beneficiary’s Bank Name: AGRICULTURAL BANK OF CHINA, HENAN, ZHENGZHOU BR.

Address: NO.50 LONGHAI ROAD ZHENGZHOU, HENAN, 450006 CHINA

SWIFT BIC:ABOCCNBJ160

Beneficiary Name: GONG YI CITY HUA SHENG MING HEAVY INDUSTRY MACHINERY FACTORY

Account No: 16-021314040001166

Why HSM is popular in the world?

The reason:The outstanding features of magnetic separator from HSM.

1.Easy to transport

2.Greatly reduce material transportation cost

3.Wide applications

4.Reliable performance and convenient maintenance

5.Customized production and flexible configuration



HSM insists on providing clients with overall solutions from equipment recommendation to deb ing and installation, worker training, technical support and maintenance.

If you are interested with our products, contact me without hesitation and I will give you the best advice.
