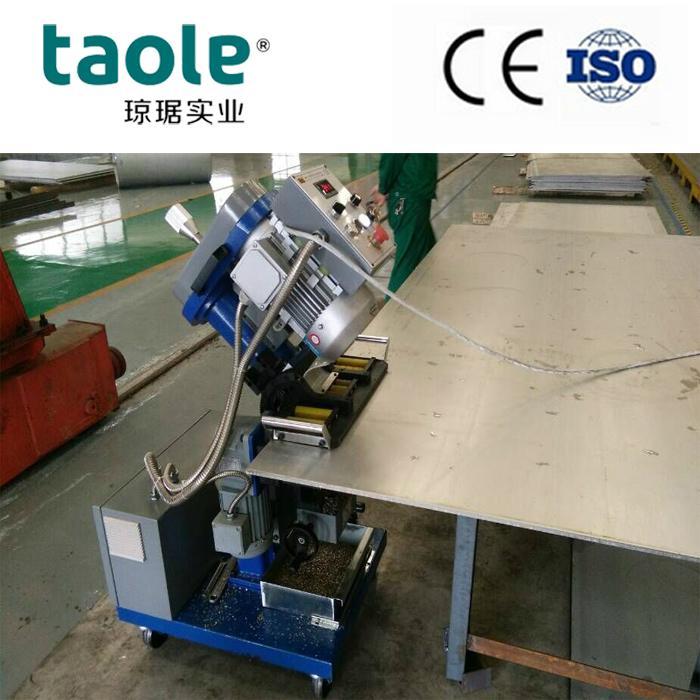

GMMA-60S models for plate edge beveling & chamfering & deburring & milling machine with high efficiency and preciouse which can reach RA 32.2-6.3. Clamp thickness 6-40mm and bevel angel in 10-60 degree easy adjustable. Single bevel width could reach 10-20mm.

Features:

be used to process iron, chromium iron, fine-grained steel, aluminum products,

copper and aluminum alloy.

Can be processed into “K”, “V”, “X” or “Y” –shaped bevel and vertical Facing

Cold cutting, non-oxidation on the surface

No scrap iron splash, Low noise. more safe and environmental

Beveling angle can be adjusted between 10 - 60 deg.

Model: GMMA-60S
Power Supply: AC 380V 50Hz
Total Power: 3400W
Spindle Speed:1050r/min
Feed Speed: 0-1500mm/min
Processing Plate Thickness: 6-40mm
Clamp Width:≥100mm
Process Length: ＞300mm
Bevel Angel:10-60 degree adjustable
Single Bevel Width:10-20mm
Bevel Width: 0-45mm
Cutter Plate:63mm Cutter QTY: 6 pc
Worktable Hight: 700-760mm
Floor Space: 800*800mm
Net Weight: 220kgs  G.W:255kgs
Packing in wooden case:800*690*1140mm

Application:

The types of machine can be used in engineering machinery, steel structures, pressure vessels, shipbuilding, and the aerospace industry.
