Pressure range:

0~1……2……3……4……5……10……200m

Output:

4~20mADC(two wire),
0~5VDC(three wire or four wire),
0~10mADC(three wire or four wire)

Accuracy:

≤±0.25%FS(typical);≤±0.5%FS(max)

Years stability:

≤±0.1%FS(typical);≤±0.2%FS(max);

Overload capacity:

150%

Supply voltage:

12~28VDC(typical:24VDC)

Compensation temperature:

-20℃~+70℃

Working temperature:

-40℃~+85℃

Insulation resistance:

>100MΩ/50V

Insulating strength:

>500MΩ/500V

Manometry way:

Immersion

Electrical connection:

Waterproof seal cable wire

Medium:

Liquid compatible with 316LSS

Protection Grade:

IP65

Explosion-proof Grade:

ExiallCT5

CODE

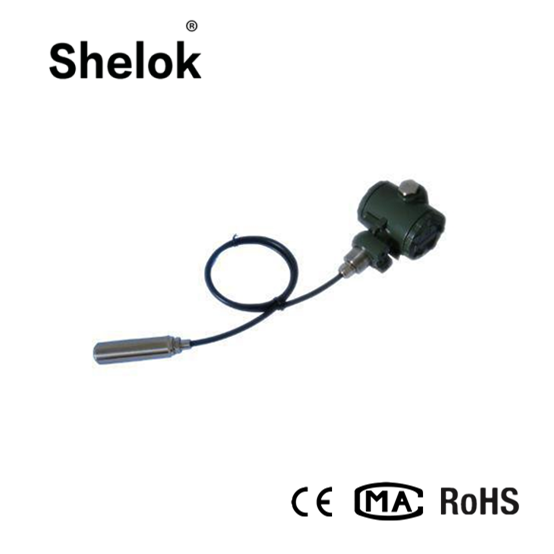

Level transmitter mode

2088T A

  Cable type

CODE

Measurement Range

1

(0-1)mH2O

2

(0-5)mH2O

3

(0-10)mH2O

4

(0-20)mH2O

5

(0-30)mH2O

T

Special specification

CODE

Accuracy grade

1

 0.2

2

 0.5

CODE

Explosion proof type

N

Standard type

i

EX iaⅡCT6

d

EX dⅡBT4

CODE

display

M0

None

M1

LCD digital display

CODE

Output

E

4~20mA

V

0-5V

S

0-10V

T

Special specification

CODE

Probe material

A1

SUS304

A2

SUS316L

CODE

Cable sheath material

B1

Polyethylene rubber

B2

PTFE

B3

Teflon

CODE

Power supply

V1

 24V DC

V2

Special specification
