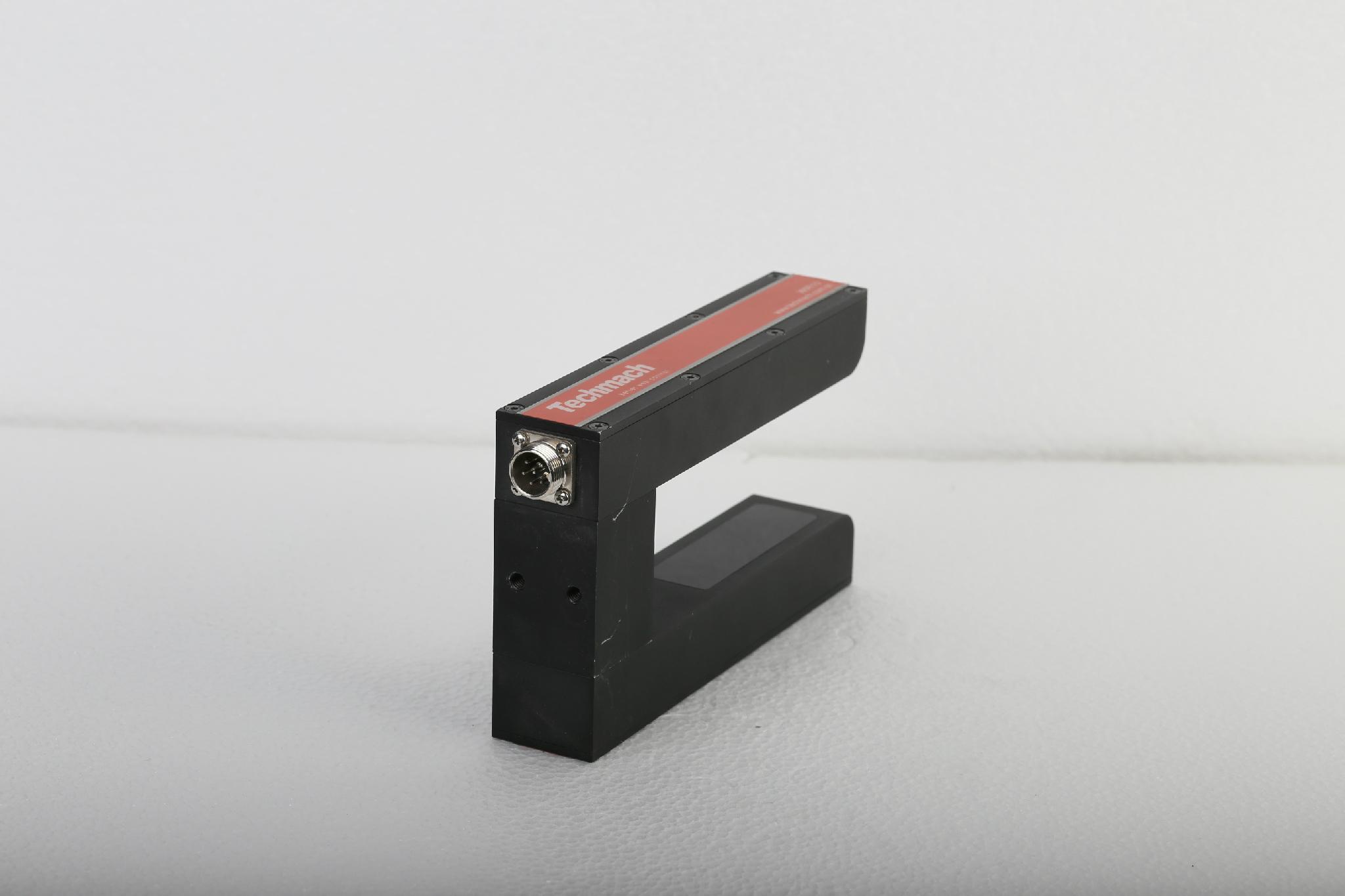

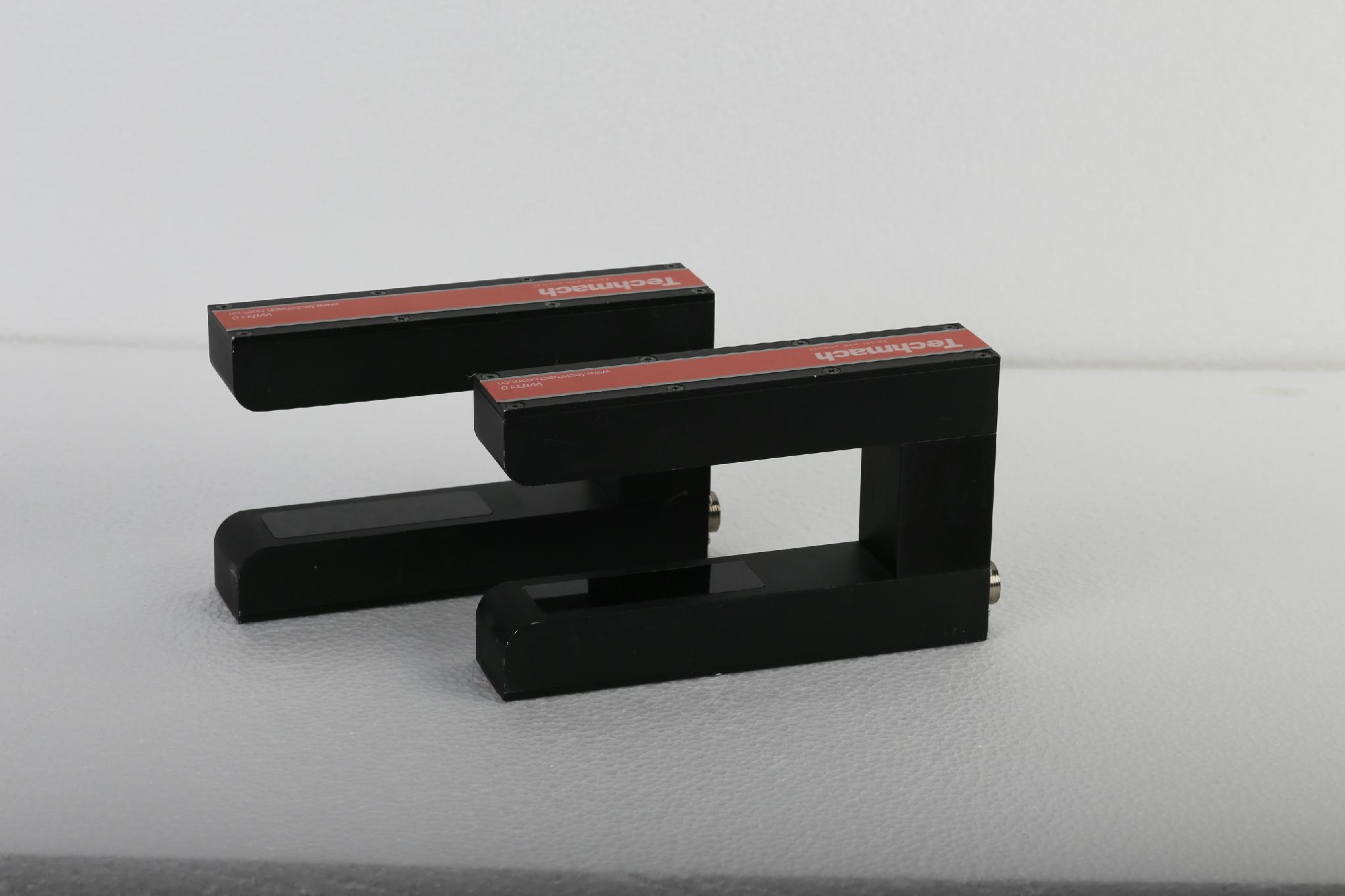

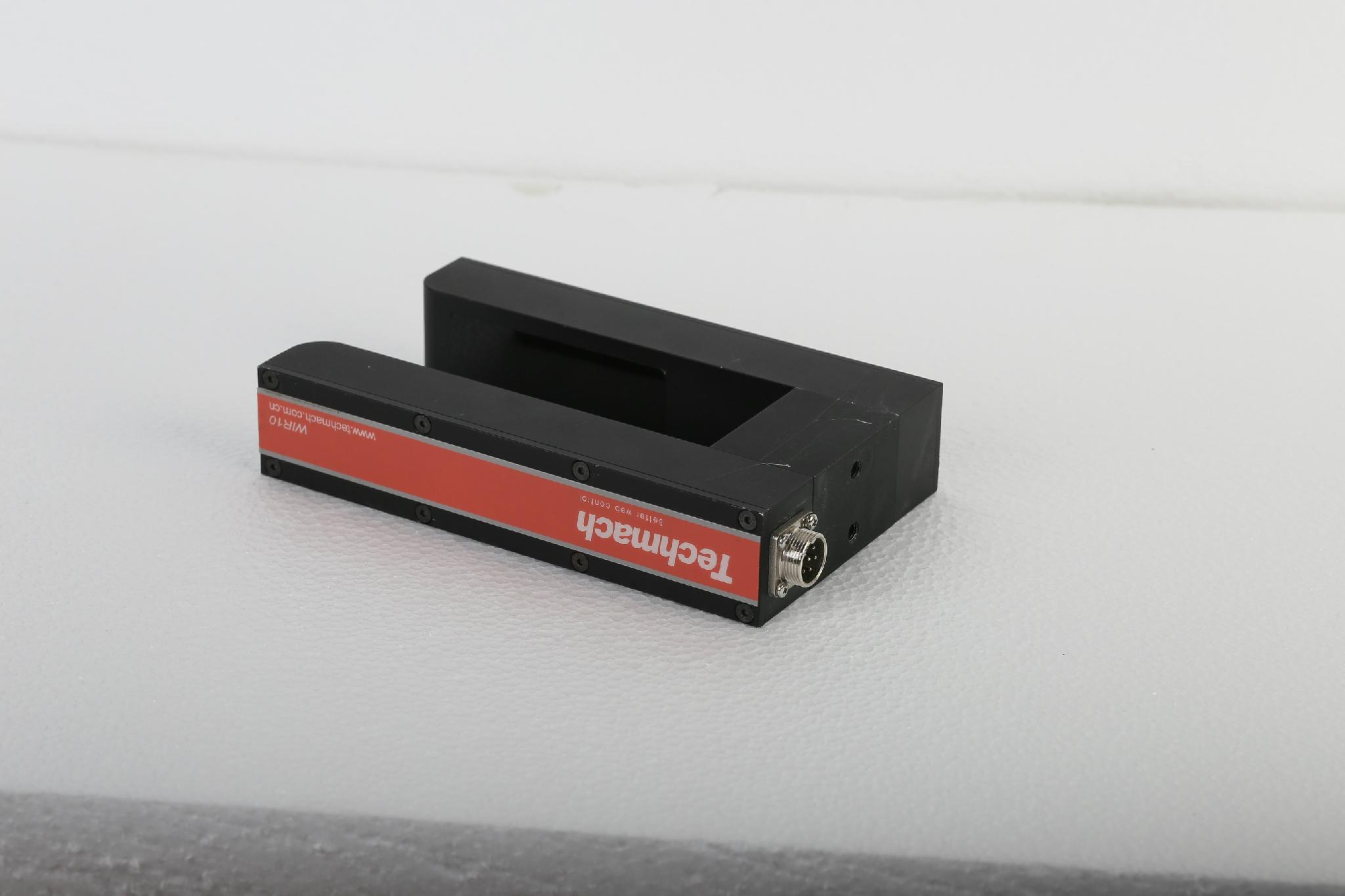

Wide sensor WIR10 series is widely used in corrugated industry, health supplies industry, rubber tire industry and lithium battery industry. The effective detection range is 75,150,225,300,375,450,525,600,675mm.

Features:

1,Dynamic compensation technology; 2,Response time: 5ms；3,Optimized software algorithm；4,Digital output, high precision；5,CAN communication interface；6,Web width and position；7,Centerline or edge guiding mode measurements

System accuracy: ±0.2mm                            Rated power: 6W

Detection Range: 75,150,225,300,375,450,525,600,675mm       Ambient temperature: -10℃～＋80℃

Protection class: IP54                              Air Humidity: <90% no condensation

Operating voltage: 12VDC                            Shell material: Aluminum
