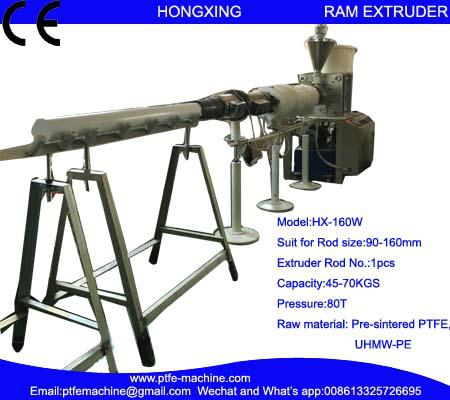

Model: HX-160W
Name: RAM Extrusion Machine for PTFE Rod
Application:he ram extruder was the earliest extruder to be used in the plastics industry. This typical process is applied for producing wire and cable jacket, inner lined pipes for corrosive fluids and used in hydrochloric acid heat exchanger, etc. The ram extrusion process is very effective for specific materials like PTFE which are not extruded successfully using screw extruder.
Technology Specifications:
| Suit for Rod OD |
90-160mm |
| Extrusion Rod no. |
1pcs |
| Rod Tolerance |
0.5-2mm |
| Motor Power |
7.5kw |
| Production Capacity |
40-60kgs/24hours |
| Heating zone |
7 |
| Machine Size |
1300mm(L)*900mm(w)*1400mm(H) |
| Machine Weight |
720kgs |
| Pressure |
80T |
| Warranty |
12months for ram extrusion system |
| After-sales Service Provided |
Engineers available to service machinery overseas |
Machine Features:
1. Highly innovation and advanced design
2. High output and low energy consumption
3. Long using life, for the die, material use 316L stainless steel
4. Less tolerance for ram process and heating temperature
5. 24 hours working as designed
6. PLC with touch screen control system
7. One person can take in charge for 10-15 sets PTFE ram extrusion machine
8. Easy operation, new workers can process it
9. Easy remove and install mould
If you are interested in the machine, pls kindly send us your inquiry.
Your friendly inquiry will be warmly welcome.
