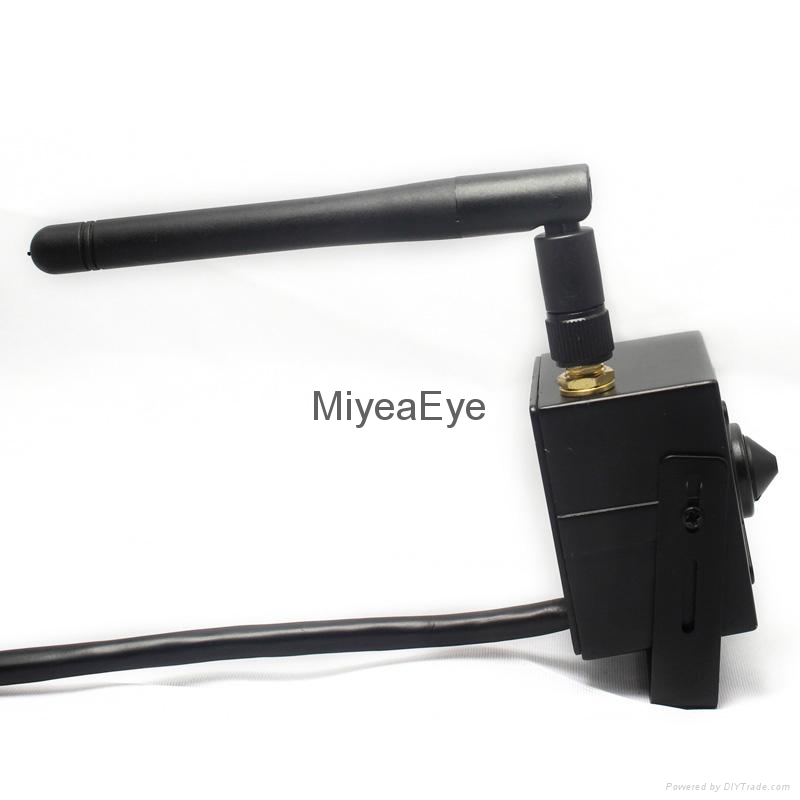

720p WiFi Mini Pinhole IP Camera support ONVIF Protocol

Model:	WMIP402CP4-720
Brand:	MiyeaEye
Origin:	Made In China
Category:	Security & Protection / Surveillance Equipment
Label:	pinhole ip camera , pinhole wifi ip came , wifi ip camera
Price:	US $48.49 / pc
Min. Order:	1 pc

Inquire Now

Product Description

720P HD WiFi Mini Pinhole IP Camera

Megapixel Mini IP WiFi Camera Pinhole720P Hidden IP Camera

720P/960P/1080P in option;
this type with IR LEDS/W/O IR LEDs in option;
850nm IR LEDs/940nm invisible light IR LEDs in option if with IR;
Megapixel board lens/pinhole lens in option;

A, 38X38mm standard design, easy assembly;
B, Provide free operating level CMS platform software, easy to manage;
C, full support for mobilephone, WAN transmission, easy to monitor;
D, with SDK, easy to independent development;
E, support the standard ONVIF protocol, compatibility;

Item No.	WMIP402CP4-720
Main Processor	High performance main chip
Image sensor	1/4 inch CMOS
Effective Pixels	1280(H)*720(V)
Day Night function	Support IR-CUT switch
Lens	1. 3MP high quality pinhole lens(lens optional)
Minimum Illumination	0. 01Lux, 0Lux with IR
S/N Ratio	≥50dB
Gain Control	auto
White Balance	auto
Electronic Shutter	auto
Video compression standard	H. 264
Maximum video resolution	Main stream: 1280720, auxiliary Stream: 352240
Video frame rate	Main stream(1280720@30fps), auxiliary Stream(352240@30fps)
Video bit rate	256k~6MbpsBit rate adjustable
Video interface	1ch composite analog video output, BNC(1.0Vp-p, 75Ω)	/
Audio compression standard	ADPCM
Audio bit rate	32kbps
Audio input/output	1/1ch	/
Wired network	1ch 10/100M Ethernet, RJ45 interface
Network protocol	HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, DDNS, PPPOE, IPv4, UPnP, NTP
Access Protocol	Support ONVIF(optional)
Power supply	Support DC12V/POE power supply
Consumption	< 7W
Configuration interface	Power supply, RJ45 interface
