Plastic Linning pump

Plastic Linning pump
Model:IFK-01
Brand:HB
Origin:Made In China
Category:Industrial Supplies / Chemical Machinery
Label:Plastic pump , PE Plastic pump , FEP Plastic pump
Price: US $1200 / pc
Min. Order:1 pc

Product Description

PTFE Plastic pump


Complies to API610, 682, ISO5199standards
Max pressure: 1.6MPa
Capacity: 3~600 m3/h
Head: 5~80m
Type: plastic pump
T: -20-180oC
Material (For wet parts in contact with medium): PE, PTFE, PVC, FEP, PFA ect.


These materials have been selected as a result of many years of experience in the use of chemical engineering material, to satisfy the special demands made in pump construction.


Application:

Alkali and inorganic salts

Non-ferrous metal smelting

Iron and steel industry

Acid industry

Petrochemical industry

Synthetic fiber and plastics industry

Paper making industry

Fertilizer industry

Fermentation industry

Environment protection



These pumps are designed to convey various kinds of clear liquids such as acid, alkali, salt and oil etc or slurry. They can replace 316L, monel alloy, hastelloy, titanium and high alloy stainless steel and ultra-low carbon stainless steel etc in the medium lower than 175.

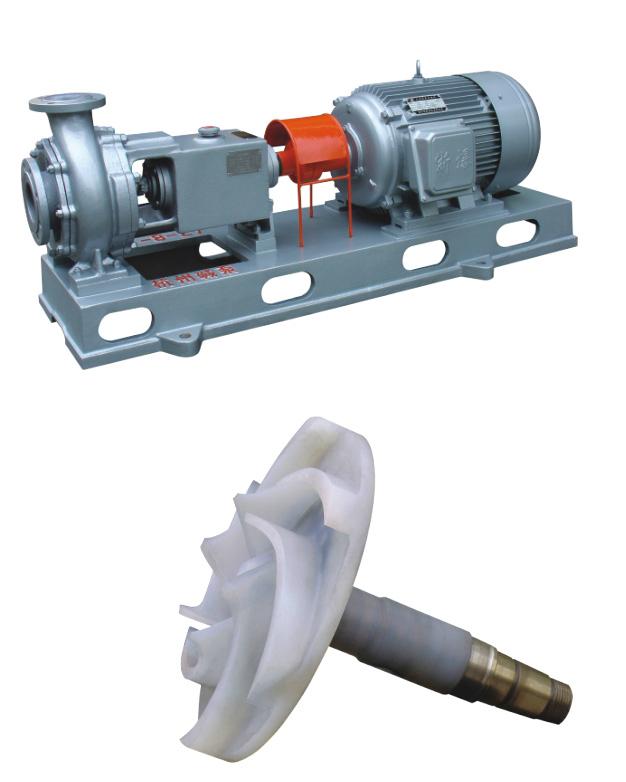

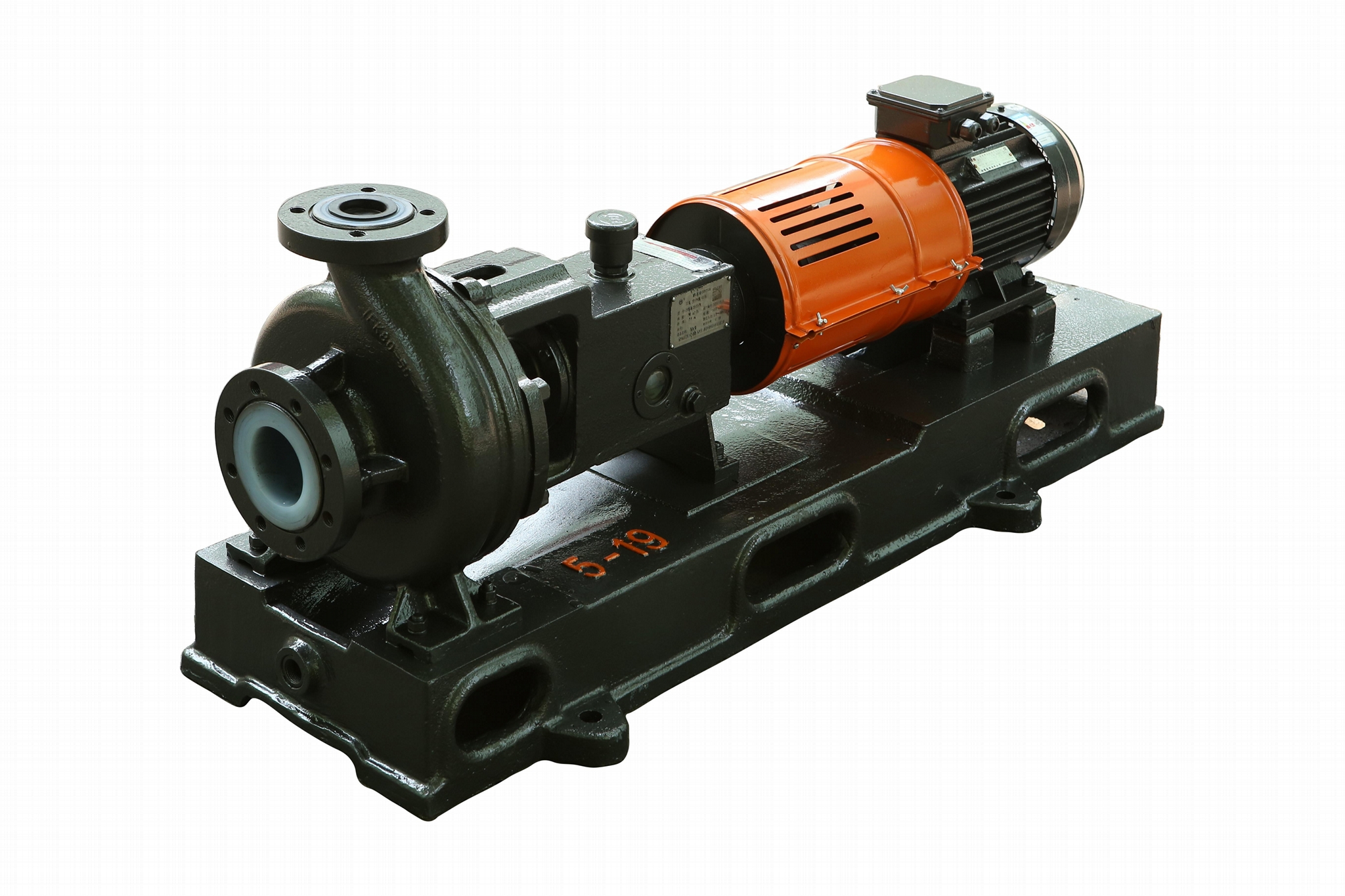

As a single-stage, single-suction cantilver type centrifugal pump, IFK plastic centrifugal pump uses plastic lining technology for its flow passage components, thus solve the insufficient strength problem of plastic components. Suction in axial direction and discharge in radial direction for pump casing. Pump casing casted with supporting legs which can be directly fastened on pump seat.Pump cover is fixed on suspension body by spigot and pump cover is held firmly by pump casing and suspension body. Technical requirement of the pump conforms to ISO 5199 standard.

Since it is rear opening door, it is unnecessary to remove pipes at inlet and outlet during maintenance and it's easy for installation.

Product spare parts are highly replaceable, so that the users'stock of spare parts will be reduced.

Pump casing and pump cover are in SG cast-iron plastic lining structure, their cast-iron housings can bear the pressure from the system and the pipe, so that the defect of low strength of full plastic structure will never exist. Plastic lining without filler owns strong chemical corrosion resistance performance.

High strength steel part structure embedded in impeller will greatly reduce the deformation caused by alternate load of impeller during its operation, so that the operation of pump will be more stable and more reliable.










Mechanical seal: According to customer's requirements
We provide:
1. Mechanical seal---171(A) mechanical seal (this kind of seal is the national-patented product, patent No. ZL92 2 20977.4 ) single or dual MS.
2. Dynamic seal.
3. Packing gland seal.
Or other brands.
Coupling: Pin type coupling
Usage:
Soda, paper, salts. Metallurgy, acid-making, petrochemical, fiber, plastic, paper-making, chemical fertilizer. Fermentation, environmental protection.
