4.3-10 screw Male rf coaxial connector for 3/8"Superflex cable solder type

Model:	4.3-10-H-J3/8S
Brand:	Customized
Origin:	Made In China
Category:	Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment
Label:	rf connector , screw type connector , 4.3/10 male connecto
Price:	US $2.2 / pc
Min. Order:	1 pc

Inquire Now

Product Description

4.3-10 series is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna.The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components.Three different coupling mechanisms of the plug connectors screw,quick-lock/push-pull and hand-screw types are mateable with all jack connectors.

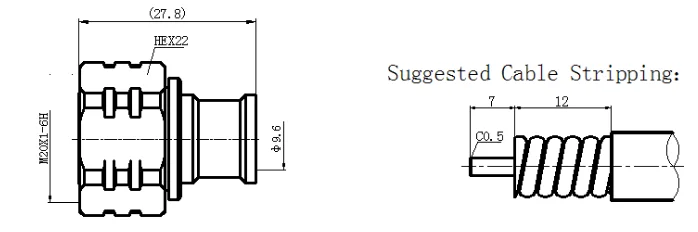

4.3-10 screw Male rf coaxial connector for 3/8"Superflex cable solder type

Interface
According to		IEC60169-54
Electrical
1	Characteristic Impedance	50ohm
2	Frequency Range	DC-6GHz
3	VSWR	≤1.1
4	Dielectric withstanding voltage	≥2000RMS,50Hz,at sea level
5	Dielectric Resistance	≥5000MΩ
6	Contact Resistance	≥Outer Contact≤0.25mΩ ;Center Contact≤1.0mΩ
7	Insert Loss	≤0.1dB
8	PIM(@2-tonex20w)	≤-117dBm
Mechanical
1	Durability	Mating cycles ≥500
Material and plating
1	Description	Material	Plating
2	Body	Brass	Tri-alloy/Ni
3	Insulator	PTFE	–
4	Center conductor	Brass	Ag
5	Other	Brass	Ni
Environmental
1	Temperature Range	-40℃~+85℃

Company Information

Workshops

Metal shop

Assembly shop

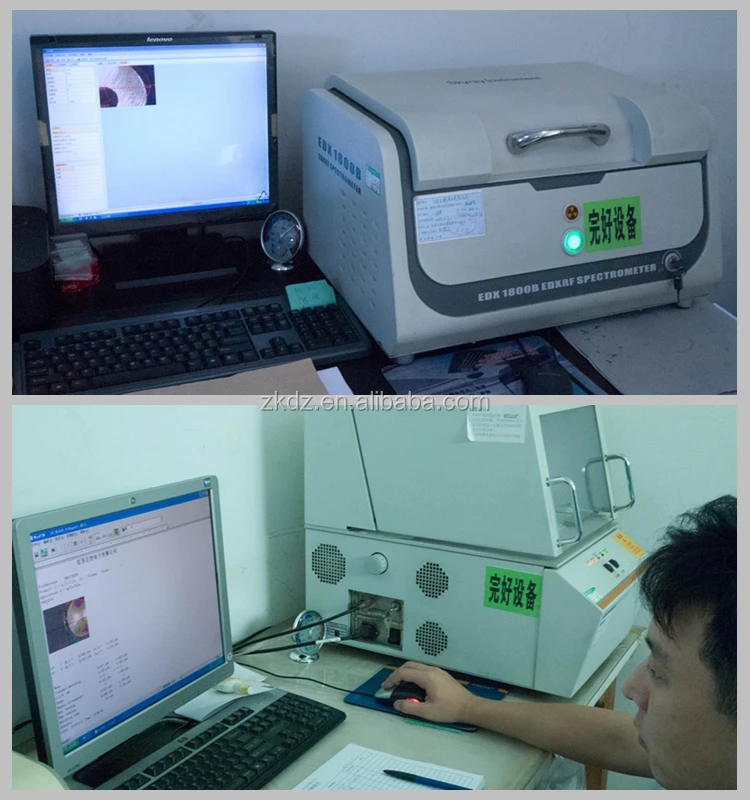

Testing Area

4.3-10 screw Male rf coaxial connector for 3/8"Superflex cable solder type

Quality: We use the best quality components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
