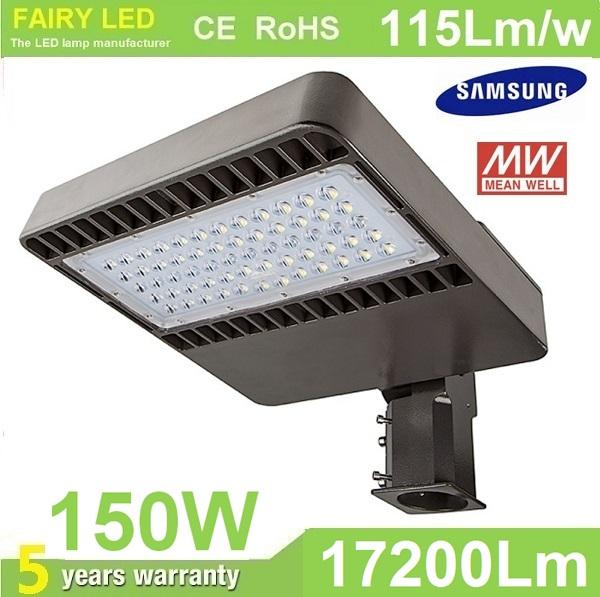

LED Shoebox Light LED Parking Lot Light 20W-500W

LED Shoebox Light LED Parking Lot Light 20W-500W
Model:FY-PLL150W
Brand:FAIRY LED
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / Outdoor Lighting
Label:led shoebox light , parking lot light , shoebox light 500w
Price: US $128.8 / pc
Min. Order:1 pc

Product Description

Product Name: LED Shoebox Light / LED Parking Lot Light

Product Features:
1. Available Wattage: 20W,24W,40W, 48W, 60W, 80W,100W,120W,150W,160W,200W,240W, 280W,300W
2. Driver brand:Meanwell HLG series
3. Input Voltage:AC90-305V 50/60Hz
4. Light Source:Samsung 351B
5. Luminous Efficiency:115LM/W
6. CRI:>80
7. CCT:3000K--6500K
8. Lamp Body Color:silver / black / white
9. IP Rating:IP-65
10. IK Rating: IK08
11. Beam Angle: 90° / 120° / 90*120°/ 85*
12. Installation Options:U-bracket / Hanging / Wall Mounted
13. Product Material: high puriity 6060 aluminum, anodized surface treatment. Corrosion resistant.
14. Life Span: >50,000hrs
15. Special Functions: Dimmable / Motion Sensors / 347V, 480V available

Model No. Wattage Lumen LED Qty Dimension
FY-PLL80W 80W 9200Lm Samsung 351B 36pcs 343*504*144mm
FY-PLL100W 100W 11500Lm Samsung 351B 48pcs 343*504*144mm
FY-PLL120W 120W 13800Lm Samsung 351B 60pcs 343*504*144mm
FY-PLL150W 150W 17000Lm Samsung 351B 60pcs 343*504*144mm
FY-PLL200W 200W 23000Lm Samsung 351B 96pcs 820*400*180mm
FY-PLL300W 300W 34000Lm Samsung 351B 120pcs 820*400*180mm













Distribution Curve:



Installations Methods:









Applications:

1.Outdoor basketball court, tennis court.

2. Badminton court, the football field.

3. The school playground, stadium.

4.Community leisure entertainment plaza, road lamp etc.
