S5 Bluetooth RFID Reader



Selling point



1. Bluetooth rfid reader

2. Can be opened door by card , by touch button via app , shake smart phone , and automatically open door when near by the reader .

3. Waterproof rate IP66 .

4. Wide voltage 9V to 24V .

5. Supports IOS 7.0 and Android 4.3 or above version

6. Metal Housing, anti-vandal



Card type: EM or MF, NFC card
Reading range: 2~8cm
External LED Control & External Buzzer Control



Operating Voltage 9~24V DC

Frequency 125KHz or 13.56mhz

Operating Temperature -40 degree ~ 60 degree (-40 oF ~ 140 oF)

Operating Humidity10%~95% RH

Index of ProtectionIP66

Dimensions L103 x W48 x H19 (mm)





Bluetooth version	4.0 above <30M <2 second
Smart phone version	Ios 7.0 ,Android 4.3
Operation voltage	9 to 24V DC
Standby Current	< 50mA
Frequency	125khz or 13.56mhz
Reading range	2 to 8cm
Output interface	Wiegand 34 (default) Wiegand 26 (optional)
Operation Temperature	-40 to 60 degree
Operation Humility	10%-95% RH
Waterproof rate	IP 66
Material	Zinc Alloy
Size	103*48*19mm
N.W	260g
G.W	300g





Wire connection



Red 9-24V

Black GND

Green  Data 0

White  Data 1

Brown  LED

Yellow  Beeper

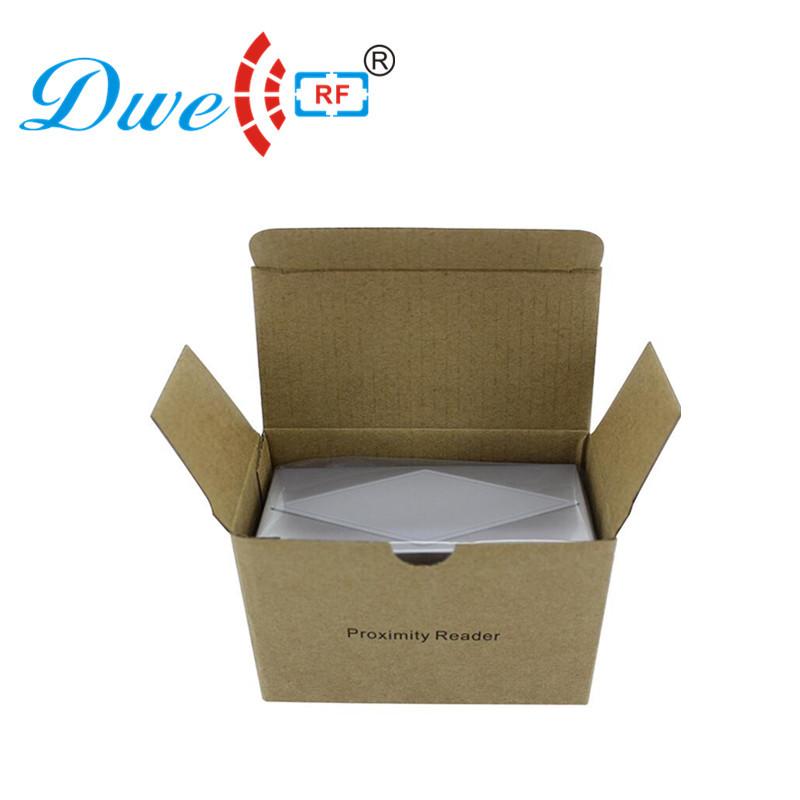

Packing list



1X rfid reader

1X gift box

1X Screw driver

2X Screws

2X Wall fixing Plugs

1X User manual
