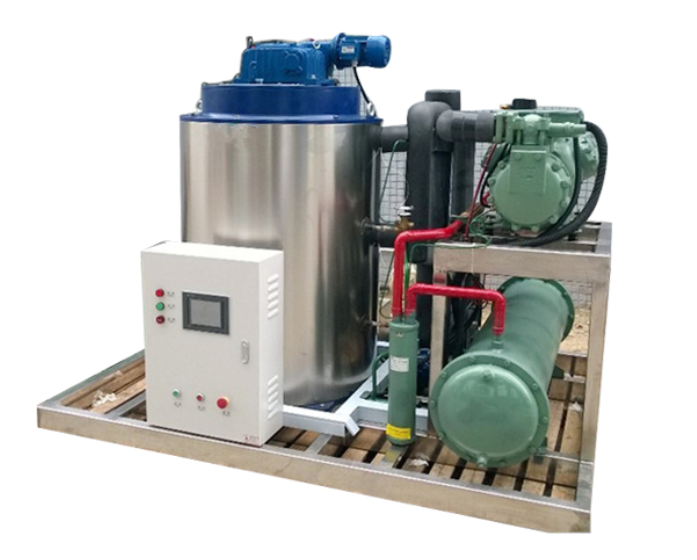

Flake machine

1.Specification:
1).Power supply: 3P/380V/50HZ
2).Fully Automatic and safe operation system
3).Flake Ice Thickness Range: 1.8-2.5 mm
4).Daily output: 350kg/24h~50000kg/24h,You can choose the different types to meet your request.
5). Cooling type: Air-cooled, Water-cooled and evaporative
6). Refrigerant: R22/R404A/R407c
7). High quality and high capacity but competitive price.

2.Description:
1). Low failure and long working life: The System always runs well more than 35000 hours
2). Perfect stability: flake ice machine In normal condition remains good output and also runs well in execrable conditions.
3). High efficiency & capacity and energy-saving
4). Superior safety and reliability: Dynamic micro-computer control system
5). Low energy consumption and environmental-friendly.
6).Safe operation and good reliability:All accessories and parts of Icesnow system are adopted of top-level products of western or local markets, greatly enhance the products quality.
7).Easy operation :The digital thermoswitch remotely indicate and control the ice temp., and the key-press operation requires no professional staff to run the machine.
8).Easy installation:Cooling system and cylinder are easy for installation.
9).The ice Skates is a screw scraper, features low resistance, low consumption, no noise.
10).The cooling system and cylinder is automatically controlled by micro-computer, and has protection for phase lack, reverse, H/low pressure and bin full which makes the operation more reliable and steady, reduced the possibility of damage, easy for maintenance.
11).The cylinder is made of high grade 304 stainless steel, repeatly processed by exactitude equipment, and welded in automatic argon-arc welding, maintaining good precision and intensity.
12). Flake ice has dry smooth, not abviours edges thus will not damage the freezer goods, so it guarantees the freezer goods' original favor.

3.Application of field :
1). Supermark, hotels and shopping malls: Keep the food and vegetable fresh and beautiful.
2). Fishery industry: Keeping Fish fresh during sorting, shipping and retailing,
3). Slaughtering industry: Maintain temperature and keep the meat fresh.
4). Concrete construction: Reduce the temperature of concrete during mixing, making the  concrete more easy to composite.

Model	Daily output	Bin	Ref. capacity (kcal/h)	Evaporating Temperature	Total	power supply	refrigeraion	Cooling model	Unit Dimension L*W*D
		capacity			power				(mm)
	(kg/24h)	(kg)			kw
GM-035K	350	200	1645	-20 degrees	2.5	3p/380V/50Hz	R404A	air cooling	1050*740*780
GM-04K	400	300	1880	-20 degrees	2.68	3p/380/50Hz	R404A	air cooling	1235*740*780
GM-05K	500	300	2350	-20 degrees	2.7	3p/380/50Hz	R404A	air cooling	1235*740*780
GM-06K	600	300	2820	-20 degrees	3	3p/380/50Hz	R404A	air cooling	1235*740*780
GM-08K	800	300	3760	-20 degrees	3.5	3p/380/50Hz	R404A	air cooling	1235*740*862
GM-10K	1000	400	4700	-20 degrees	4.5	3p/380/50Hz	R404A	air cooling	1290*970*912
GM-12K	1200	400	5640	-20 degrees	5	3p/380/50Hz	R404A	air cooling	1290*970*982
GM-15K	1500	400	7050	-20 degrees	8.3	3p/380/50Hz	R404A	air cooling	1290*970*982
GM-20K	2000	500	9400	-20 degrees	9.7	3p/380/50Hz	R404A	air cooling	1500*1085*1208
GM-25K	2500	500	11750	-20 degrees	10.2	3p/380/50Hz	R404A	air cooling	1500*1085*1208
GM-30K	3000	1200	14100	-20 degrees	11.2	3p/380/50Hz	R404A	air cooling	1800*1135*1308
GM-40K	4000	2500	18800	-20 degrees	15.1	3p/380/50Hz	R404A	Water cold	1650*1555*1308
GM-50K	5000	3000	23500	-20 degrees	18	3p/380/50Hz	R404A	Water cold	1650*1555*1580
GM-80K	8000	5000	37600	-20 degrees	30.5	3p/380/50Hz	R404A	Water cold	2230*1890*1470
GM-100K	10000	6000	47000	-20 degrees	31	3p/380/50Hz	R404A	Water cold	2230*1890*1640
GM-120K	12000	8000	56400	-20 degrees	42.1	3p/380/50Hz	R404A	Water cold	2480*2000*1780
GM-150K	15000	8000	70500	-20 degrees	56	3p/380/50Hz	R22	Water cold	3400*2080*1880
GM-200K	20000	12000	93500	-20 degrees	63	3p/380/50Hz	R22	Water cold	3400*2080*2300
GM-250K	25000	15000	116875	-20 degrees	78.3	3p/380/50Hz	R22	Water cold	3400*2080/2600
GM-300K	30000	15000	141000	-20 degrees	102.5	3p/380/50Hz	R22	Water cold	4580*2770*2400
GM-400K	40000	20000	188000	-20 degrees	124.3	3p/380/50Hz	R22	Water cold	4580*2770*3000
GM-500K	50000	25000	235000	-20 degrees	147.4	3p/380/50Hz	R22	Water cold	4580*2770*3500





Products Details.




Our Service:



1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way.

2. Our factory provide machine testing when customer come to our factory to see this machine.

3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings

4.We can provide engineers to customer's factory to help installation and training workers if customer required.

5.We offer OEM



FAQ:

 How about the quality of your product?

· Our products manufactured strictly according to national and international standard.

· We have CE, ISO certification.

· We take a test on every product before delivery.

· How about the price of this product?

· We can give the lowest price than market one.
· We do quotation as soon as possible for any customer.
· Discount can be given according to quantity.

· What is the MOQ?

· 1 set.

· Production Time?

· 2 to 3 weeks.

· What is the payment?

· 30% deposit,70% balance paid before shipment.

· What is the package?

· Export standard wooden box.

· If you can be customized?

· We can make products according to customer's requirements.

· What is the voltage?

· 380V 50hz 3 phase or any other voltage according to client's requirement.

· How many sets in 20ft & 40HQ container load?

· About 40 sets in 20ft container & 90 sets in 40ft container.

Customer Provide Information Before Quotation?


· How many kg capacity in 24 hours?

· We have 200kg to 50000 kg in 24 hours.


· How many horse power in one ton flack ice?

· For example:5HP one Ton.


· Do you Danfoss Pressure control & Solenoid valve?

· Standard Machine assemble China brand Pressure Control & solenoid valve.


· Inform us Refrigerant & Volage?
