Corner Ultrasonic Blind Spot Detection System with 3 Vehicle Proximity Sensors
Model No.: TOP-CTWB3-3-LBP
• 3 sensor Corner Ultrasonic Obstacle Detection Systems
• 2.0/1.0m detection range - outer sensors can be reduced to 0.6m (selectable via dip switches)
• 2 levels of sensitivity (selectable via dip switch)
• Gradual visual and audible distance warning display
• Advanced self-diagnosis with error indication
• Improved anti-interference function
• All weather design
• 3pcs ultrasonic waterproof sensors with SmartSensor module
• Conifgurable sensor housing through hole or underslung,(0° and 11° flush mount fixings)
• 4*2.5m sensor cables

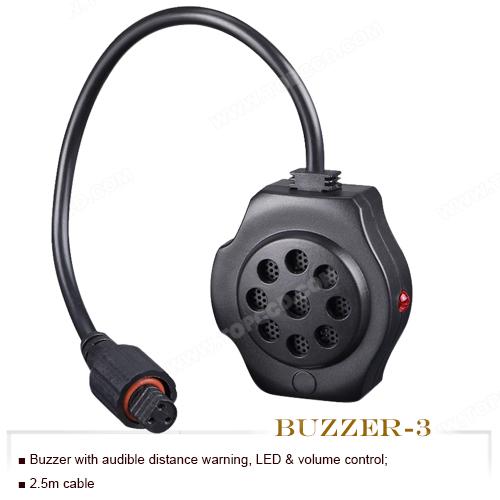

• In Cab warning buzzer with 2.5M cable.(Buzzer with audible distand warning, LED & Volume Control)
• Industrial cables and connectors, Microchip MCU
• Voltage rating: 12-24Vdc
• Mechanical vibration: 5G
• Mechanical shock: 10G
• Operating temperature: -30 to +80°C
• Waterproof control box to IP69K
• Sensor & connector protected to IP68
• 3 year warranty
* Optional Extra:
• Low Speed Trigger Module -System activated below designated speed
• Audible Speaking Alarm "Vehicle Turning Left
