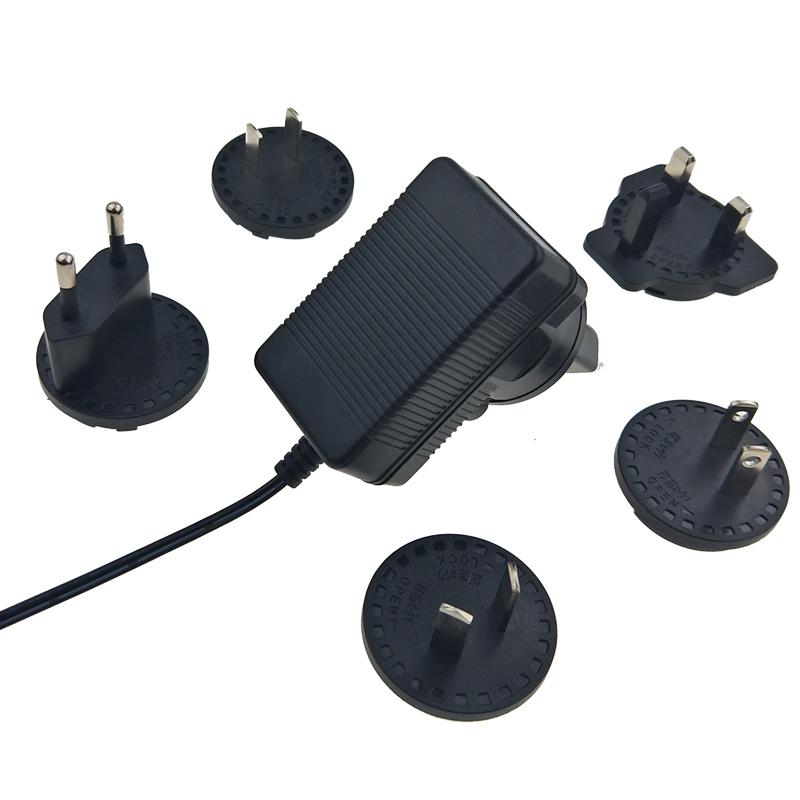

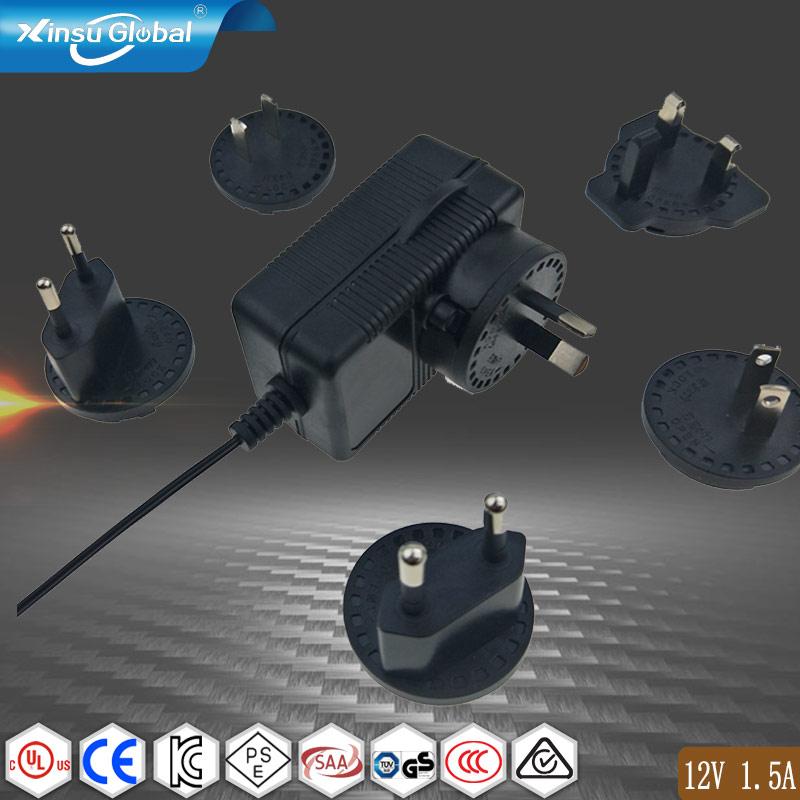

interchangeable plug 12V 1.5A ac adapter
| Model: | XSG1201500 |
|---|---|
| Brand: | Xinsu Global |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Power Supply & Distribution / Power Adaptor |
| Label: | 12v 1.5a ac adapter , interchangeable plug , 12v exchangeableplug |
| Price: |
-
|
| Min. Order: | 500 pc |
Product Description
| Output voltage | 12VDC |
| Output current | 1500mA |
| Plug | US, EU, AU, UK, JP, KR, CN for optional |
| DC size | 5.5*2.1*10mm;5.5*2.5*10mm;D-TAP, XLRF…etc. |
| DC cable length | 1.2m ..etc. |
| Features | |
| Input Voltage range: | 90～264Vac |
| Reted input voltage: | 100～240Vac |
| InputFrequency Range: | 47～62hz |
| Output voltage tolerance: | ±5% |
| Operating Temp: | 0℃～+45℃ |
| Storage Temp: | -30℃～+70℃ |
| Relative Humidity: | 10%～90% |
| Vibration and shock | Meet MIL-STD-810D |
| Over current protection | PASS |
| Over voltage protection | |
| Short circuit protection | |
| Over Temp protection | |
| Safety standard | EN62368 EN60065 EN60950,EN61558,EN60335 |
| EMC/EMI | Meet FCC CLASS B,EN55022 CLASS B. |
| Certificates | CE ROHS FCC UL cUL PSE KC SAA RCM TUV/GS CB |
| Drop Test | As per UL regulation |
| Burning test | 100% |
| Efficiency level | DOE VI |
| Life of the unit | 50000hours |
