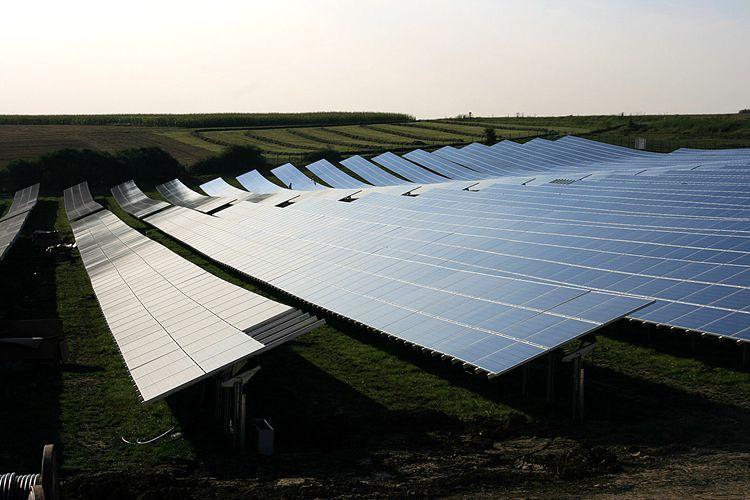

Solaroom ground mounting system was widely used for the commercial and residential solar PV system, professional and friendly design protected solar module reduce the affect from structural stress and climate, it is allowed fast installation of thin film and crystalline modules. Design based on stress analysis and wind engineering analysis to optimize the system. the product complied with AS/NZS 1170, DIN 1055, IBC 2012, GB50009-2012 and other local building code and construction acts. Use the AL6063, AL6005 anodized aluminum alloy and SUS304 stainless steel as the structure materials to provide long term corrosion resistance, suitable for extremely climate condition.

Aluminum ground mounting racking system offer the special extruded aluminum rail, rail nuts and module clamp kit. Racking system also can be high preassemble and make the installation easy and quick to save you labor cost and time. Depends on the site condition we provide different foundation solutions, such as strip type concrete foundation, precast ballasted and ground screw, etc.Customized requirements  available.

Technical Parameters:

Installation Type:（Ground）

Tilt Angle： 0°~ 60°or Customized

Max Snow Load: 1.4 KN/m2

Max Wind Speed：  60 m/s

Design Standards：AS/NZS 1170, DIN 1055, IBC 2006, etc.

Module Type:（Framed or Frameless）

Module Configuration： Landscape or Portrait

Warranty：（Fifteen Years）
