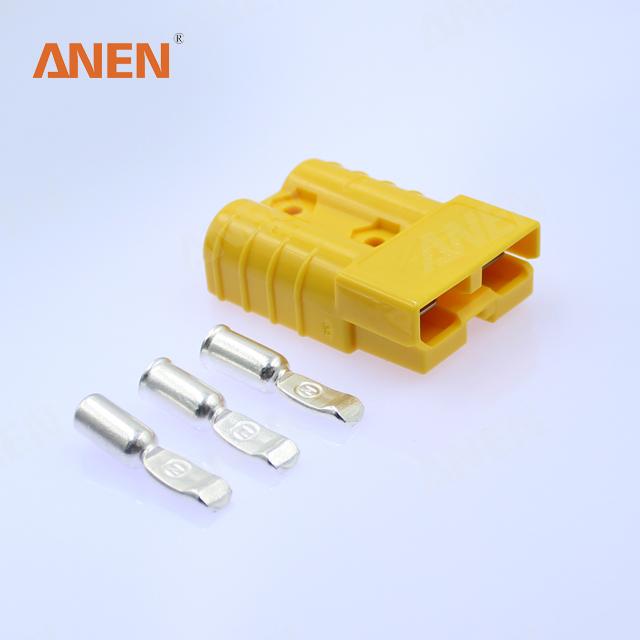

Multipole Powder connector       SA 50 Series

 Apply for logistic communication, powe-driven tools,ups system, medical equipment, electric system etc



*Dovetails lock modeles for multipole units

*Interchangeable Gnederless design

*PC housing and low resistance silver plated copper contact

*UL Rated for Hot Pl ing up to 50 Amps

*Wire, PCB, and Busbar Contacts

Technical Data

Products： Multipole Powder connector -SA 50 Series
Rated current (Amperes)：  50A
Rated voltage  (Volts)： 600V

Contact Barrel Wire Size  (AWG) ： 06~12AWG

Contact material ： Copper,Plate with silver

Insulation material：  PC
Flammability： UL94 V-0
Without load  (Hot plug 250 cycles&120V):   40A
Insulation Resistance : 10000MΩ
Average.Connector\disconnect (N):  55N
Connector holding force :  250N Min
Environment Temperature  (℃):  -20℃…+75℃



Detailed Images

Housing of Auto Connector

Terminal of Auto Connector

Board Housing and Handle of Auto Connector









Major Customers



Product Certificates

High quality Guarantee

UL/CUL/CCC/CE
