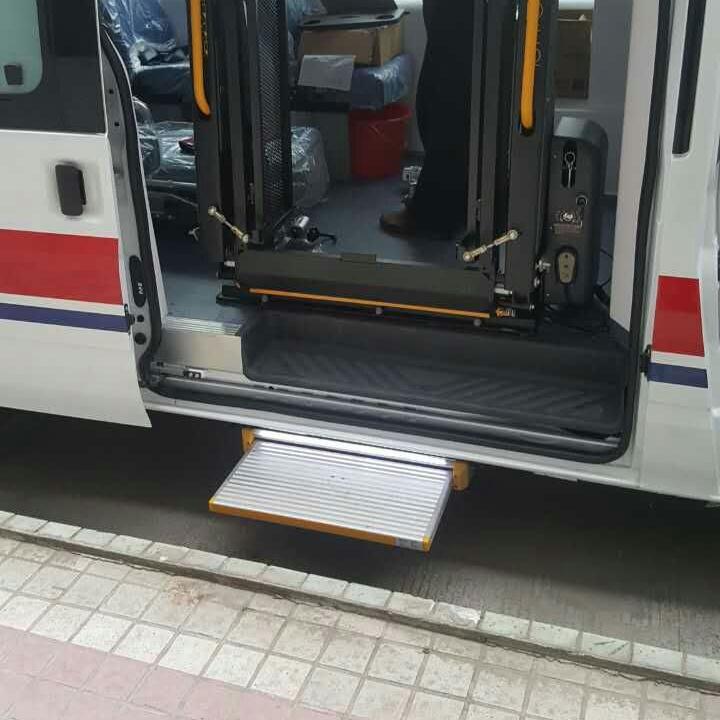

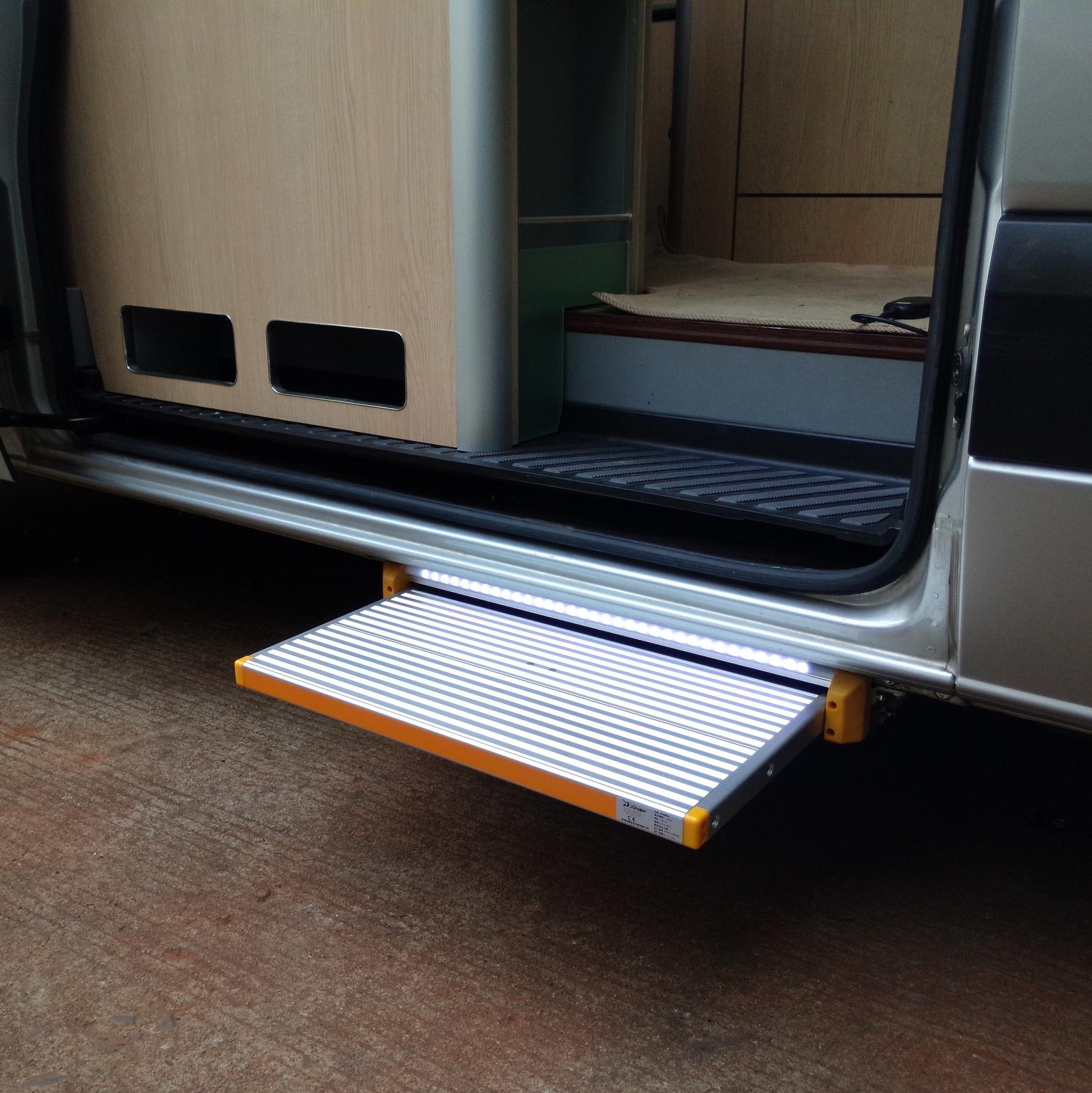

ES series electric cassette steps are kinds of equipment which can help passengers get into vehicles, It is designed to fit on the range of vans, minibuses, taxi, motor homes and ambulances. It is installed under the step on the side or rear door. It is electrically operated slide in, slide out cassette step providing safe access to passenger vehicles.
The steps are completely manufactured in aluminum without welding points and with non-slip surface which works properly under any weather condition. The step is tested to over 1 million cycles ensuring the step keeps on working when you need it. It is available with sensitive edge and illumination, in both fully automatic and fail safe operation all controlled from our unique control box.
This step is the most advanced cassette step on the market, completely removing the need for micro switches making the step more reliable. This step can work steadily, reliably and safely.
We have different steps with several specifications, which can meet different requirements.

TECHNICAL NOTES
 Voltage: 12V-24V
 Test load: 500 kg
 Safety loading capacity: 250 kg
 Max current during extending or stowing: 8-10 A
 Extending time: 1-2 s
 Stowing time: 1-2 s

PERFORMANCE
 CE certificated.
 Compact design
 Super light, thin and anti-corrosive.
 Motor fitted with thermal cut-out protection
 Waterproof connectors
