building materials galvanize razor barbed wire mesh fence

building materials galvanize razor barbed wire mesh fence
Model:-
Brand:HY
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:barbed wire , barbed wire mesh , barbed wire fence
Price: US $25 / roll
Min. Order:10 roll
Inquire Now

Product Description

Barbed wire, also known as barb wire (and sometimes bob-wire or bobbed wire), is a type of fencing wire constructed with sharp edges or points arranged at intervals along the strand(s).

It is used to construct inexpensive fences and is used on the top walls surrounding secured property.
It is also a major feature of the fortifications in trench warfare (as a wire obstacle).

Gauge of

  Approximate Length per Kilo in Meter
Strand and Barb in B.W.G. Barbs Spacing 3" Barbs Spacing 4" Barbs Spacing 5" Barbs Spacing 6"
12x12 6.0617 6.759 7.27 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.719 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.562
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.659 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.507
15-1/2x15-1/2 15.3491 17.1144 18.406 19.3386

1>.Materials:high quality low carbon steel wire(electro or hot dipped galvanized,PVC coated wire);
2>.Weaving and characteristic:twist and weaving,Firm and beautiful;

3>.Main Wire diameter:1.8-3mm; details please check the chart in below;

4>.Twist wire diameter:1.8-2.5mm;
5>.Using :used as barrier for lawn railways,expressways,etc.

6>.Barbed wire weave types:
1 single strand barbed wire;
2 double strand double twisted barbed wire(strong and neat);
3 double strand common twisted barbed wire(strong).

Type



Wire Gauge (SWG)

Barb Distance (cm)

Barb Length (cm)

Electric Galvanized  Barbed Wire

Hot-dipped Galvanized Barbed wire

10# x 12#

7.5-15

1.5-3

12# x 12#

12# x 14#

14# x 14#

14# x 16#

16# x 16#

16# x 18#

PVC coated barbed wire; PE barbed wire

before coating

after coating

7.5-15

1.5-3

1.0mm-3.5mm

1.4mm-4.0mm

BWG11#-20#

BWG8#-17#

SWG11#-20#

SWG8#-17#



PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are

available at customers’ request





Application

It is used for grass boundary, railway, highway for isolation & protection, beautiful and practical, can be chosen with various setting           ways, rapid construction, less cost and can achieve deterrent effectively.

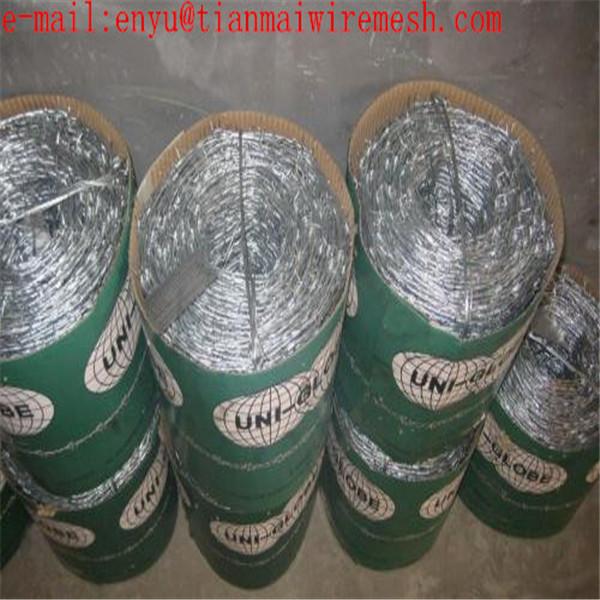

barbed wire loading container

building materials galvanize razor barbed wire mesh fence 1building materials galvanize razor barbed wire mesh fence 2building materials galvanize razor barbed wire mesh fence 3building materials galvanize razor barbed wire mesh fence 4building materials galvanize razor barbed wire mesh fence 5
