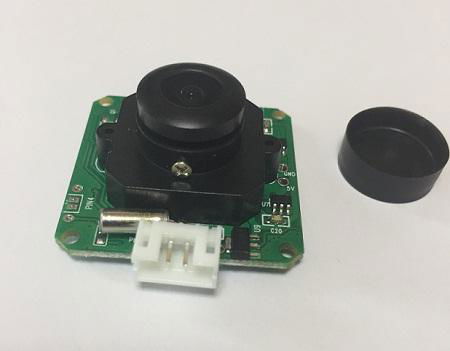

2.0mp Camera Module with 1.7mm lens

Model:	LCF-23TP
Brand:	LCF
Origin:	Made In China
Category:	Security & Protection / Surveillance Equipment
Label:	TTL JPEG CAMERA , SERIAL CAMERA MODULE , RS232 JPEG CAMERA
Price:	-
Min. Order:	5 pc

Product Description

Model No.:LCF-23TP

Application

General purpose embedded imaging and control.

Security system

Access Control system

Robot vision, object detection and recognition.

Industrial control system.

Automotive system.

Medical systems etc.

Features

1. Working by day and light.(IR LED)

2. Low cost and low powered camera for embedded imaging applications.

3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

4. UART: up to 115200bps(128K,256K optional) for transferring JPEG still pictures

5. Support fast continuous snapshotting

6. Support from 160X120,QVGA,VGA to 1600X1200 different resolutions

7. Auto-Infrared, Auto-White Balance, Auto-Gain Control.

8.Support IR FILTER SWITCH(AUTO) IF NEEDED

No.	Item	Description
1	Image sensor	CMOS
2	Pixels	2.0 mega pixels
3	Image Resolution	from 160X120 to 1600X1200
4	Image Compression	JPEG
5	Focal Length	1.7mm
6	Angle of View	180°
7	Minimum lumen	1 Lux
8	Night Vision lumen	5 Lux
9	Night Vision Image	Black-White Image
10	Serial Interface	RS232 TTL RS485
11	Baud Rate	9600-115200bps ,128K,256K
12(1)	Connector	Customize for customer(any connector is available)
(2)	PIN Description	PIN 1: DC 3.3V/5V PIN 2: TXD PIN 3: RXD PIN 4: GND
13	Length of Cable	Customize for customer
14	White Balance	Automatic
15	Exposure	Automatic
16	Auto Gain Control	Automatic
17	Weight	0.02 KG
18	Working Current	IR Off: About 130mA
19	Power Supply	3.3V/5V
20	Working Temperature	-15°C~70°C
21	Datasheet/Protocol	LCF Protocol
22	PC Test Software	Support
