Forest Grower® Grower-i Series 288w 4x72w LED Grow Light-Remote Control with Timing system-Full Spectrum LED Plant Light for Vegetables and Flowering,Indoor Plants,Greenhouses,Hydroponic growing



Features

• Remote controlled LED Grow Light

• Multiple Control switches ON/OFF

• 2-4 programmable Channels Control for different growing stage(MAX. 5 Channels ,but the price will be different)

• Seeding/Vegetative/Bloom/harvest/Booster growing stage

• Full Spectrum wavelengths design for full growth of plants.

• Timing & dimming

• More than 50,000 Hours Lifespan.

• 5 Times Energy saving compare HPS,MH,HID or other conventional lamps.

• 24LEDs 3w Per Cluster .

• Modular design,easy to assembly and disassembly.

• Zero after-sale service cost.

• No need to send the light anymore.

• Plug and Play.

• Multi-functionality.

• Daisy-Chained function to connect lights together to save your grow space.

• Yields-Making them up to 2-2.5times yields than traditional lamps.

• Uniform illumination.

• Shorten your growth cycle.

• Almost no heat design.



Specifications:

Model No.: APL-G-i4x72w-Remote control

Remote Control Distance: Φ15-20m

Dimension:  427*337*60mm(16.81''x13.27''x2.36'')

Gross Weight:  15lbs （6.8KG/PC)

LED Quantity:  96cs*3w Epistar LED

Module Quantity: 4PCS 96W

96W: 24Leds 3w (45Mil Blue+42Mil Red are the largest LED chips in Growing light led)

Avg. Power Draw: 175W±3%

Coverage Area: 3.28ftx3.28ft   (100x100cm) for Bloom stage

                          4.59x4.59ft ( 140x140cm) for VEG stage



Remote Controlled LED Grow Light

*Multiple light synchronous Control

*Manual Control switches ON/OFF

*2-4 programmable Channels Control for 4 different growing stage(MAX. 5 Channels ,but the price will be different)

*Seeding/Vegetative/Bloom/harvest

Timing & dimming

* 0-100% adjustable brightness

*24Hours cycle working mode( 5 timmer range control system)

*5 Available Timer for Each Channel(Fox example)

Time Range             Brightness

8:00-10:00                               20%

10:01-12:30                             100%

12:31-18:00                             90%

18:01-22:30                             60%

22:31-07:59                             0%

You can adjust the time and brightness per your needs.



Daisy-chain function

Connecting (Power link) several lights together to save your growing space,the Power cord is used for daisy-chained function,no need to buy extra cord.





5 Channels working environment Available（Default is 2-3 Channels）



Intelligent Temperature sense and control system.Over-Heat Protection system .

*Intelligent sensor system to make the fans' work automatically when the temperature is higher than over43 ℃.

*Intelligent sensor system to make the fans stop working when the temperature under 42℃.

*Safety reminder temperature.



Power Indicator（A signal indicator for the intelligent working mode)

Because our led grow lamp is an intelligent control system that works automatically as our program setting.

Such as when we set the brightness is 0% from 22:05 to 7:30， the indicator will still "ON" to show its working well.

But when we unplug the Power ,the indicator will be " OFF" .





Normal working Mode(Regular Mode)

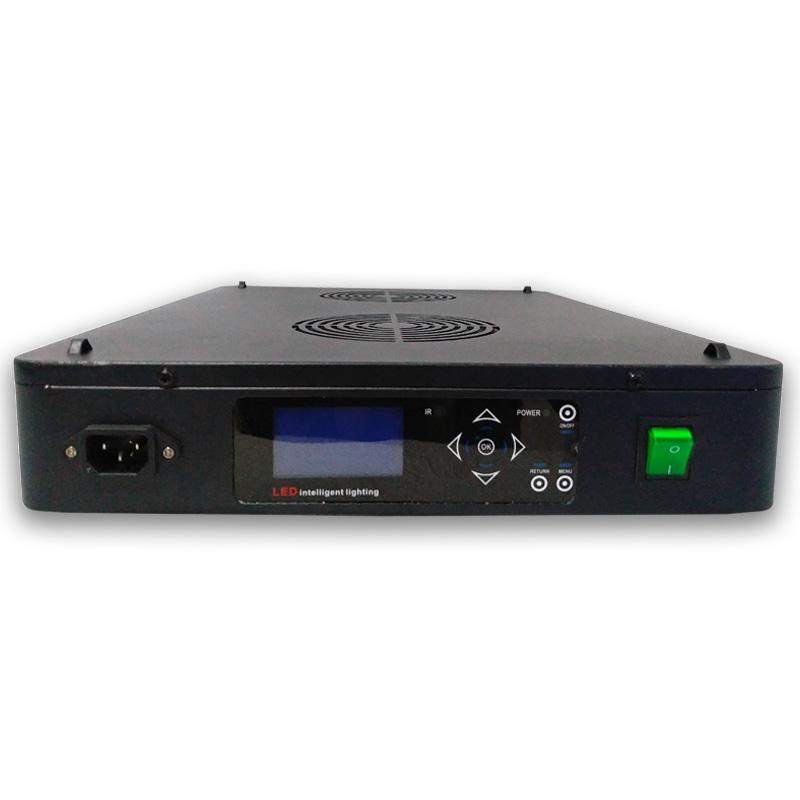

Manual dimming by remote controller or touch panel







Set LCD

Set Mode

Set Time

Set Time Range

Set LED Duty(Channel)

Intelligent Mode

*Choose the time range and then set each channel's brightness

* 5 time range available .

*Max.5 Channels available.



Modular Design.

Modular modular design fitting multiple watts requirment,easy to assembly & assembly,simply install and convenient maintenance design . Such as 8COBs,8fans air intake.



Remote controller ( Wireless signal )

Wireless 315MHZ Control ,control distance : ⌀15m

Synchronous control   (Multiple units linking)

The default setting allows one controller to control all the units that are operating the light in the same time .If single unit control is required,please follow below step.



Spectral Test Report  .

Below is our full spectrum design LED Grow Lights for your reference.

Different color ratio spectrum will have different test report.

Summary

---24LEDs  3w/ 24LEDs 5w Per Cluster .

--- One Power Supplies  to control one 75w cluster

--- Aluminum  heat sinks in our power supplies

--- Switchable control for VEG /Bloom stage separately .

--- High Intensity Top Bin Diodes

--- Superior Double Lens Mould

--- Constant drivers

---  Independent  Clusters

--- Near Silent Fans

---  No Glass or glue

---  Aluminium PCB

---  Solid simple wiring

---  Surge Protection



24 hours appointment timer function

---Intelligent system to make a reservation in 24hours .

--- Set 2-5 programmable channels in 24hours .
