Galvanized steel wire for mesh

Galvanized steel wire for mesh
Model:-
Brand:-
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:soft iron wire , low carbon wire , mesh wire
Price: US $890 / ton
Min. Order:20 ton
Inquire Now

Product Description

Gabion wire has been specifically developed to suit most types of chain mesh machines. Its high quality enables manufacturers to achieve higher machine efficiencies.

Gabion wire is woven into chain mesh fences that are widely used for industrial security, tennis courts, parks, safety fences on freeways, domestic and industrial fencing.


Galvanised Gabion wire Specifications

Gabion wire is made to BS EN 10244.

Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between standard and heavy galvanised wire.

Nominal Diameter

Minimum Coating Mass (g/m2)

Standard Galv.
(W02)

Heavy Galv.
(W10)

over 1.55mm up to and incl 1.80mm

over 1.80mm up to and incl. 2.24mm

over 2.24mm up to and incl. 2.72mm

over 2.72mm up to and incl. 3.15mm

over 3.15mm up to and incl. 3.55mm

over 3.55mm up to and incl. 4.25mm

35

35

40

45

50

60

200

215

260

270

280

300


Diameter Tolerances


Nominal Diameter

Standard Galv.

Heavy Galv

Tolerance

over 1.00mm up to and incl. 1.60mm

over 1.60mm up to and incl. 2.50mm

over 2.50mm

+/- 0.04mm

+/- 0.04mm

+/- 0.05mm

+/- 0.04mm

+/- 0.04mm

+/- 0.05mm


Tensile Strength (MPa)

The tensile strength is defined as the maximum load achieved in a tensile test divided by the cross sectional area of the wire test piece. The tensile strength for all sizes of Gabion wire is 38-55kg/mm².

Steel Chemistry

 The table below is indicative of steel chemistries used.

Element

%

Carbon

Phosphorus

Manganese

Silicon

Sulphur

0.05 max

0.03 max

0.05 max

0.12/0.18

0.30 max

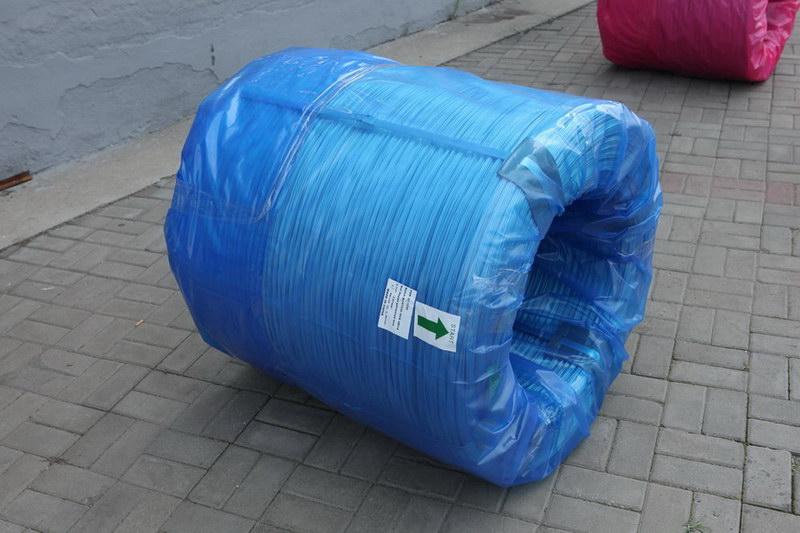

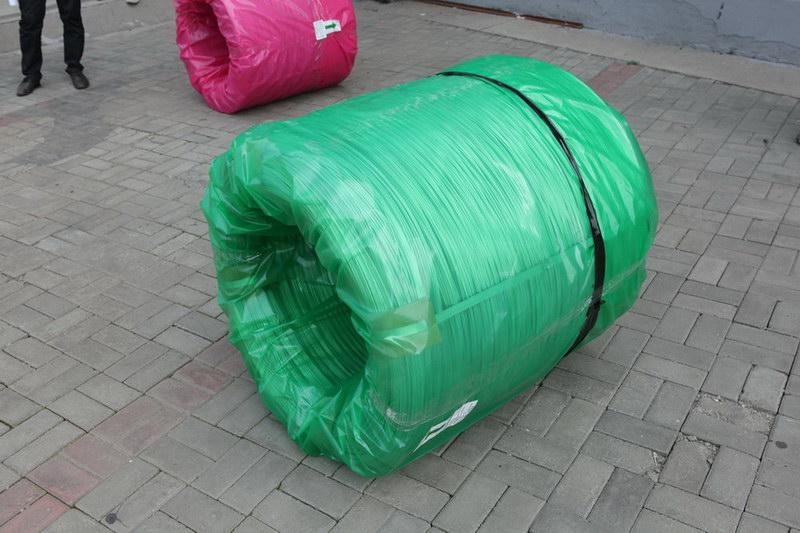

Galvanized steel wire for mesh 1Galvanized steel wire for mesh 2Galvanized steel wire for mesh 3
