Plastic Push-pull self-locking connector--2pin80degree

Plastic Push-pull self-locking connector--2pin80degree
Model:2pin80degree
Brand:szmedplus
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Terminal
Label:Push-pull connector , Mecical connector , plastic connector
Price: US $2.5 / pc
Min. Order:10 pc

Product Description

Adaptor: ABS Pins: Golden plated brass pins, 2pins80degree,
Connector house:  ABS

Products are widely used in communications, medical, laser, automotive, surveying, mapping, military and other equipment.

Product advantages:
Plastic housing made of PSU, light weight
Tail nuts and socket round nuts are color-coded to prevent mis-insertion
Multiple colors to choose from (gray, blue, yellow, black, red, green and white) Positioning device: Double reed lock, keyway to prevent rotation
Mechanical life: 3000-5000 cycles
Waterproof IP rating: IP50
Salt spray corrosion test: >48h
R edness: Suitable for use under high vibration and strong impact conditions.
Assembly method:


1. Pass the cable through the tail nut① and the cable clamp②. Solder to the corresponding position of the insulator assembly③.
2. Install the cable clamp② to the welded insulator assembly③. Note that the protrusion of the cable clamp② corresponds to the groove of the insulator③.
3. Insert the insulator assembly③ into the plug assembly④, noting that the protrusions on the cable② are to fit in the recesses in the plug assembly④.
4. Install the tail nut 1 into the plug assembly④ and tighten the tail nut.



Price Terms:EX-factory price
Payment Terms:100%TT
Packing:Blister package
Lead Time:one week

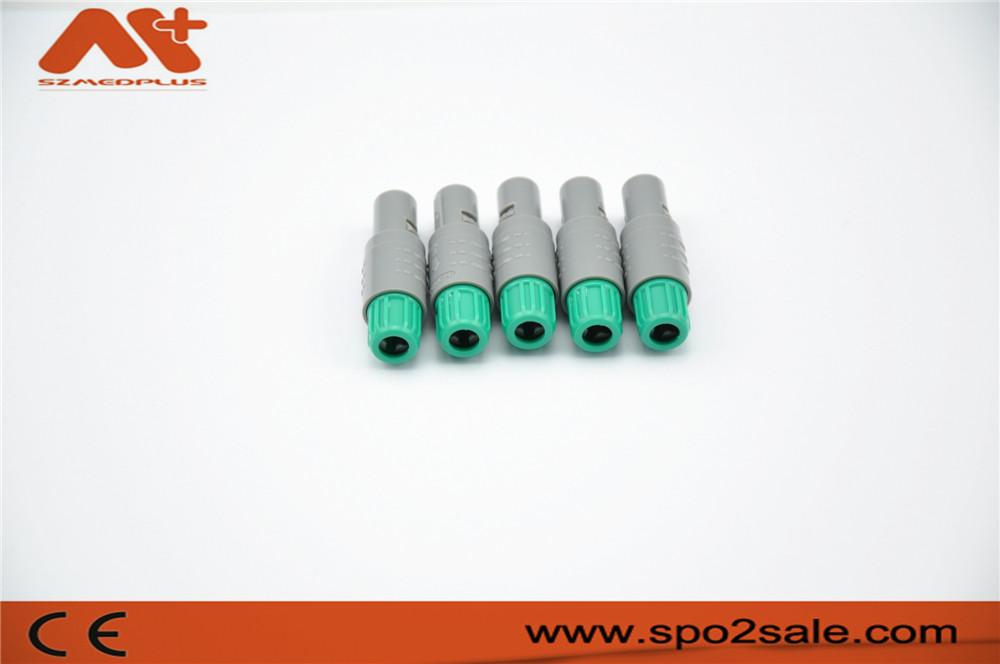

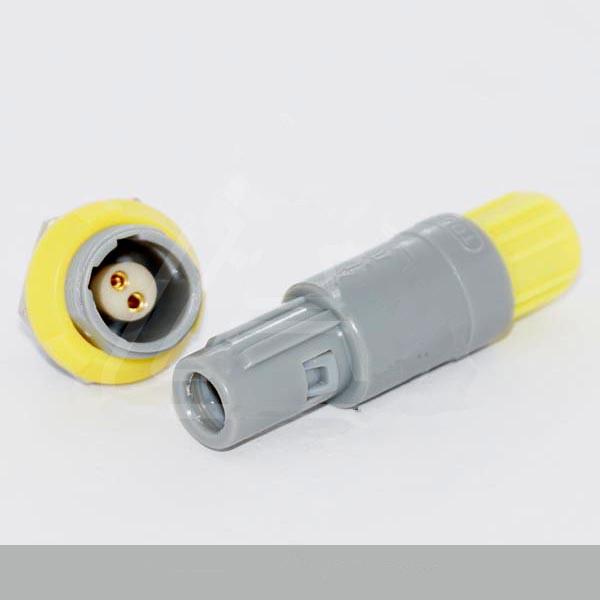

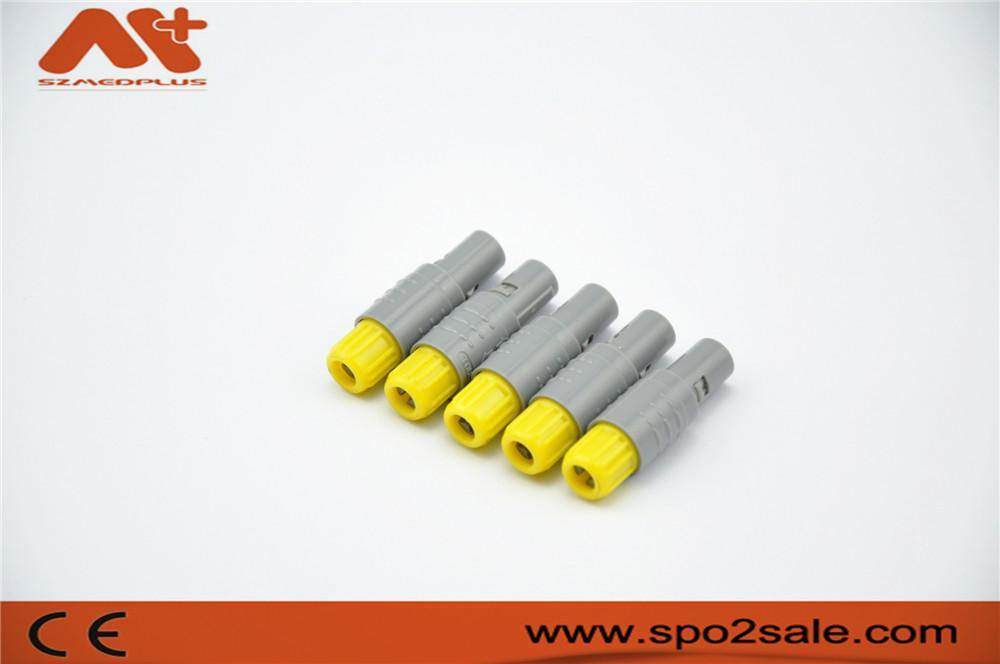

Plastic Push-pull self-locking connector--2pin80degree 1Plastic Push-pull self-locking connector--2pin80degree 2Plastic Push-pull self-locking connector--2pin80degree 3Plastic Push-pull self-locking connector--2pin80degree 4Plastic Push-pull self-locking connector--2pin80degree 5
