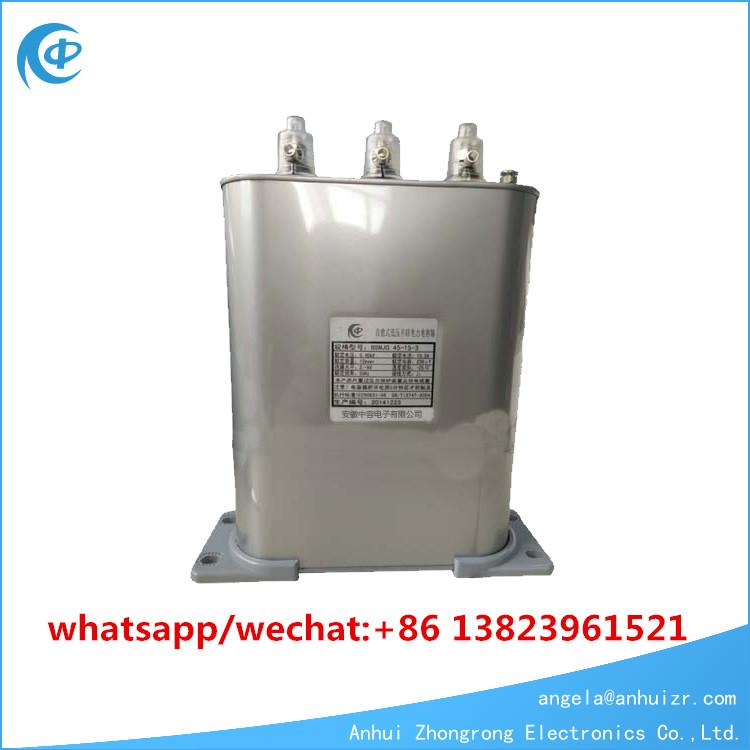

Low Voltage Power Shunt Capacitor Power Bank Three Phase Capacitor



Self-healing type low voltage parallel capacitor applies to the rated voltage 1200V and below industrial frequency exchange in power system,in order to improve the power factor,reduce reactive power loss,improve the quality of voltage purpose.



1.With insulated from can reply the adopted,and withstand voltage and electrical good metalized plastic(MPP) as medium, if produce medium destroy,restore insulation,the capacitor thirty something reinstated and continue to move,achieve insulation.

2.Since can reply the dielectric loss is small,low temperature and long service life.

3.According with GB/T12747-2004;IEC60831-1(1996) standard.

4. Improve the power system operation performance.

5. Improve power efficiency and Improve the quality of grid.

Main Specifications

Standard	GB/T12747.1-2004 ; IEC60831-1:1996
Apply Condition	Indoor, -25℃~55℃, Humidity ≤ 80%RH
Height	≤ 2000MSL
Rated Voltage	0.23 - 1.2KVAC
Rated Output	1 - 90KVAR
Capacitance Tolerance	±5%, ±10%
Voltage Endurance	2.15Un in 2 seconds between T-T; 3000VAC in 10seconds between T-C
Tangent of loss angle	≤ 0.1% (rated voltage at 20℃)
Ceiling Voltage	1.1Un
Ceilling Current	1.3Un
Self-discharge Feature	The terminal voltage will reduce below 50Volt in 3 miniutes after disconnecting from power line.

Code	Model No.	Un (KV)	Qn (KVAR)	Fre. (Hz)	Cn (μF)	In (A)	H (mm)
1	BSMJ0.12-10-1	0.12	10	50	2211	83.3	220
2	BSMJ0.12-12-1	0.12	12	50	2654	100	260
3	BSMJ0.23-5-1	0.23	5	50	301	21.7	140
4	BSMJ0.23-10-1	0.23	10	50	602	43.4	220
5	BSMJ0.23-15-1	0.23	15	50	903	65.2	200
6	BSMJ0.23-30-1	0.23	30	50	1806	130.4	210
7	BSMJ0.4-20-3	0.4	20	50	398	28.9	220
8	BSMJ0.4-25-3	0.4	25	50	497	36.1	220
9	BSMJ0.4-30-3	0.4	30	50	597	43.3	270
10	BSMJ0.4-40-3	0.4	40	50	796	57.7	330
11	BSMJ0.4-50-3	0.4	50	50	995	72.2	330
12	BSMJ0.45-15-3	0.45	15	50	236	19.2	220
13	BSMJ0.45-20-3	0.45	20	50	314	25.7	200
14	BSMJ0.45-25-3	0.45	25	50	393	32.1	220
15	BSMJ0.45-30-3	0.45	30	50	473	38.5	250
16	BSMJ0.45-40-3	0.45	40	50	629	51.3	330

Detailed Images
