REF:PZX-1007 TECHNICAL DATA SHEET

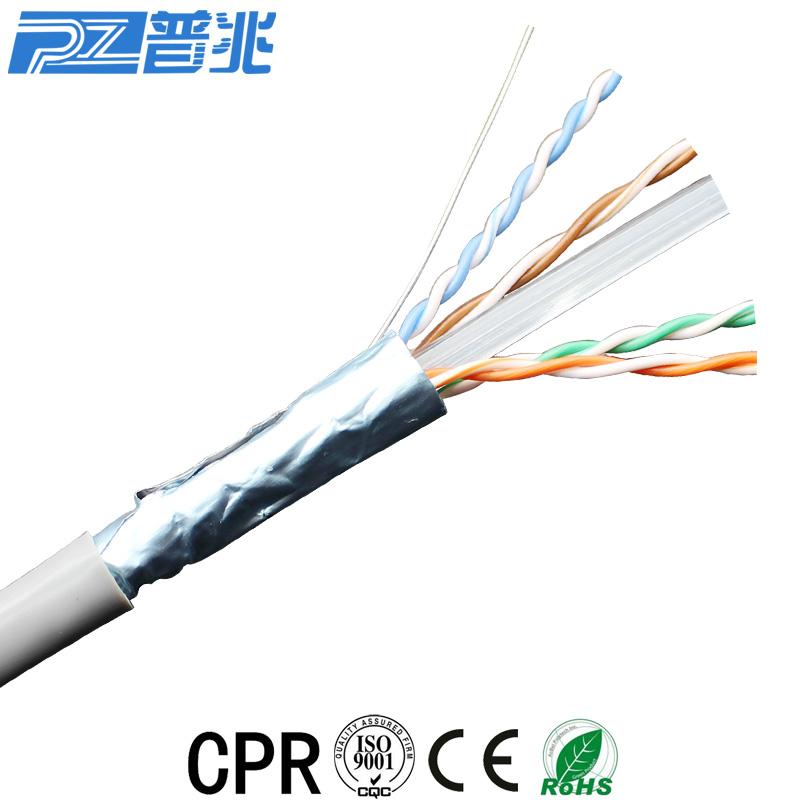

FTP 4pairs cable category5e - PVC sheath








CABLE DESCRIPTION

1-CONDUCTOR PARAMETER UNIT VALUE
TYPE:STRANDED-Solid Bare copper Max.linear tesistance. Ω/km ≤95
DIAMETER:0.515±0.005mm AWG:24
2-INSULATION Mutual capacity(nom.) pF/m 50
TYPE:HDPE
DIAMETER:0.9mm±0.01mm Unbalance capacity max pF/km 3300
3-SYNTHETICAL SEPARTION FOIL:polyester
4-DRAIN WIRE: Characteristic impedance (1 at 100 MHz) Ω 100±15
Tinned copper 1*0.4mm
5-SHIELDING:Aluminium/polyester
Coverage 110% VELOCITY OF PROPAGATION (f＞1MHz) %of c 66
6-RIP CORD
YES / Optional Marking
7-OUTER JACKET
TYPE:PE
COLOUR:GREY E243826-UL CM 4Pair FTP Cat.5e 26AWG STRANDED metric markings
THICKNESS:≥0.5mm
EXTERNAL DIAMETER:6mm±0.5mm

ELECTRICAL CHARACTERISTICS

Frequency (MHz) Return loss(dB) Attenuatin (dB/100m) NEXT (dB) PSNEXT (dB) ELFEXT (dB) PSELFEXT (dB)
1 20.0 2.10 65.3 62.3 63.8 60.8
4 23.0 4.10 56.3 53.3 52.0 49.0
10 25.0 6.50 50.3 47.3 44.0 41.0
16 25.0 8.20 47.2 44.2 39.9 36.9
20 25.0 9.30 45.8 42.0 38.0 35.0
25 24.2 10.40 44.3 41.3 36.0 33.0
31.25 23.3 11.70 42.9 39.9 34.1 31.1
62.5 20.7 17.00 38.4 35.4 28.1 25.1
100 19.0 22.00 35.3 32.3 24.0 21.0
OTHER CHARACTERISTICS

Working Temperature: -20℃ to +60℃
bending Radius: ≥10×out diameter TIANZHAO No.38 East Xiaotuanpu Road, Guanhaiwei, Cixi China
ISO/IEC 11801TIA/EIA 568-C.2 Tel:(086)574 6366 9978 Fax(086)574 6366 1333
RoHS 2011/65/EU REACH EC 1907/2006 Site:http//www.cntianzhao.com
