Confirguration

Easy to operate interactive vending self-service kiosk

1. Monitor: Grade A+ TFT LCD monitor without any dot. 100% new.

2. Touch panel: Infrared touch panel

3. PC host: Intel H81 motherboard 4GB ram, 500GB HDD, Intel 1900 CPU, Cold fan, P4 Power supply and 2 loader wpeaker.
4. Kiosk Frame: 1.5mm CRS frame with carpaint.

5. Additional devices: bill recycle system, coin hopper and thermal printer,

6. Available devices: Digital camera, metal keyboard and card reader.

Specification of Netoptouch LED bar customized touch kiosks for mall
No.	Components		Specification
1	Computer Parts	PC host (can be customized)	Mainboard: Industrial motherboard, CPU: Intel J1900, 2.0 GHZ
			RAM: DDR 4GB; Hard Disk: 500GB, 7200R, SSD available
			RS-232 Ports, RJ45 interface, 2 cooling fan
			4 USB Ports,1 10/100M Net Port
			2 LTP; Data Cable; Power Cable; Newtwork Cable
			Integrated disply card, Net Card, Sound Card, Video board embed.
2	Monitor	19.1 inch	100% new Grade A+ TFT LCD or LED
			Brightness: 350cd/m2 Hardness: Moh'S 3
			Contrast: 1000:1 Lifelong: more than 50 000 hours
			Max(native). Resolution: 1280x1024
			Response Time:10ms;Dot pitch: 0.297;VGA interface
3	Touch Panel	19.1''infrared	Durability: Scratch-free, more than 50,000,000 touches without failure
			antirust, anti-acid, anti-dust, water proof, anti-vandal
			Thickness: 3mm; Resolution: 4096×4096; Light Transmit: 95%
			Surface Hardness: Mohs' hardness rating of 7
			Response Time: 5ms; Interface: USB
4	Enclosure		Durable 1.5mm cold rolled steel frame, painting color optional
			Ergonomically sleek and smart design
			Easy to install and operate with drawers
			Internal fans for ventilation
			Left and right bi-channel; amplified output; Multimedia speaker
			Moistureproof, Antirust, Anti-acid, Static free
5	Extra device	Printer	Thermal printer, 80mm paper to print, photo print available.
		Cash Acceptor	Width: 60-85mm; Length: 115-170mm
		Coin Hopper	Diameter: 18 - 28.5 mm; Thickness: 1.65 - 3.2 mm
6	Operating System	Windows	Windows 7 or Windows 10 available.
7	Production Time		15~20 working days after deposite confirmed
8	Packing		Safty Wooden case for exporting
9	Warranty and MOQ		1 Year, aftersale online service forever. MOQ: 1 piece
10	Payment Terms		50% Deposit, 50% balance T/T before shipment.

Detailed images

 Supplementary specification of this payment kiosk:

1. The infrared touch panel is two-point touch, if need more point touch, its available.

2. Except wired network, Wifi, 3G modem&3G route is able to be built into this kiosk.

3. With multimedia function,  you can set  kiosk to display advertising during the period that nobody

using it.

4. Color of kiosk case surface is based on Pantone Chart.

5. Dual monitor payment kiosk is available, so does more peripheral devices

6. Default working voltage is AC220V, 50HZ, if you need 110V, welcome too.

Other model mall kiosk for sale, you are welcome to inform us about the mall kiosk idea you prefer, we

will design new similar all in one mall kiosk for you.

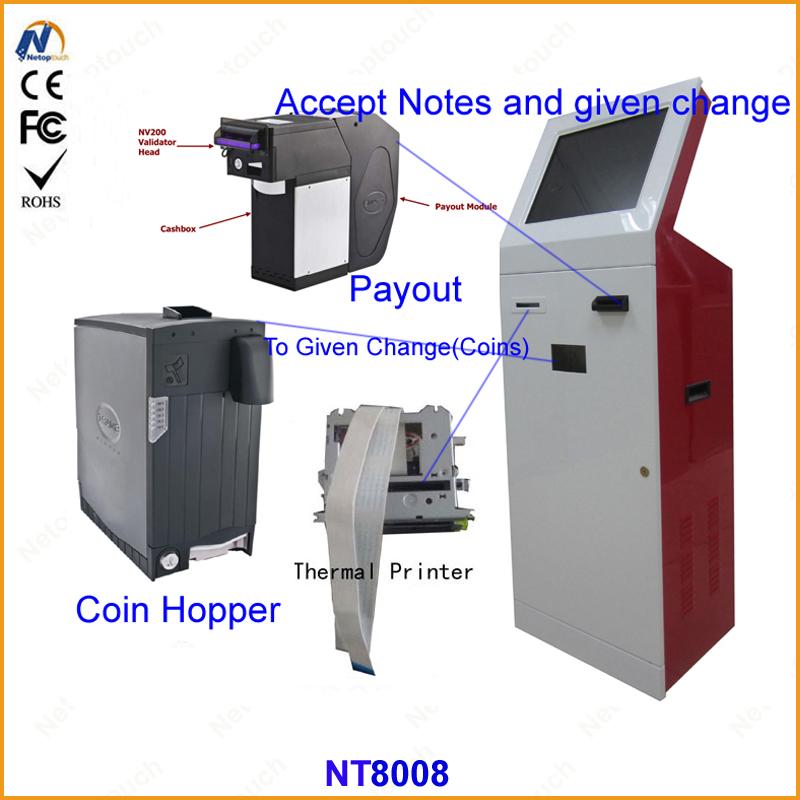

Photos of same kiosk model equips with different peripeheral devices:



Photos of other similar payment kiosk:

Benifits of Payment Kiosk

Benefits for Institutions
More and more businesses like to have a bill payment kiosk today as it has a number of advantages attached to it. It allows them to reduce their overhead staff and this directly results into saving in terms of overhead cost. The selected few employees they have can fully concentrate on other needs of the customers and this helps them in improving their customer service. With payment kiosk, companies get secured lockable safe to collect cash or cheques. Deployment of payment kiosk also helps the company in conveying its tech savvy image to customers.

Benefits for Customers
With the deployment of payment kiosk, the stores have been able to increase their level of customer satisfaction. Customers can get a 24 x 7 self-service. They no more have to interact with any employee and they are happy to get personalized bill payment experience. Gone are the days when they had to wait in a long queue to make the payment even for a single item.


About Netoptouch

        1.Our History starts from 2003.                    2.List of some of our clients                         3.Factory and workshop



Certifications

FAQ

Q: Are you trading company or manufacturer of kiosk ?
A: We are kiosk case manufacturer&factory and have our own kiosk assemble workshop. Our factory located at Songgang, Shenzhen.

Q: How long is your delivery time?
A: Generally it is about one month after deposit for sample.

Q: Do you provide samples ? Is it free or extra ?
A:  Because our MOQ is one piece, and most of our kiosk are customized design, free sample is not available.

Q: What is your terms of payment ?
A: T/T,  Paypal, West-Union and Trade Assurance are welcome. Usually 50% of the total payment as deposit, rest to be balance before delivery.

Q: How long is your warranty period?
A: Normally the warranty period is one year dated from delivery, during this period, if there is any part cant work, we will help you to fix it, or delivery you replacement for free. In case of that you need longer warranty period,  extra cost for warranty delay is need.

Packing

Packing Details : Anti-static film, bubble bag, Pearl sponge and wooden case

Delivery Details : 15~20 working days after deposit received

Delivery method: TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.

        4. Professional placement                              5. Professional shock                               6. Complete package
