Main products: we can produce all kinds of special connectors such as D-SUB (VGA) connectors, needle connectors, large current connectors, waterproof connectors, RF coaxial connectors and D connectors. Harness connector PCB connector, cable connector, communication connector, etc.



Product specifications:

D-SUB needle waterproof connector

9,15,25,26,37,44,50,62,78,104PIN

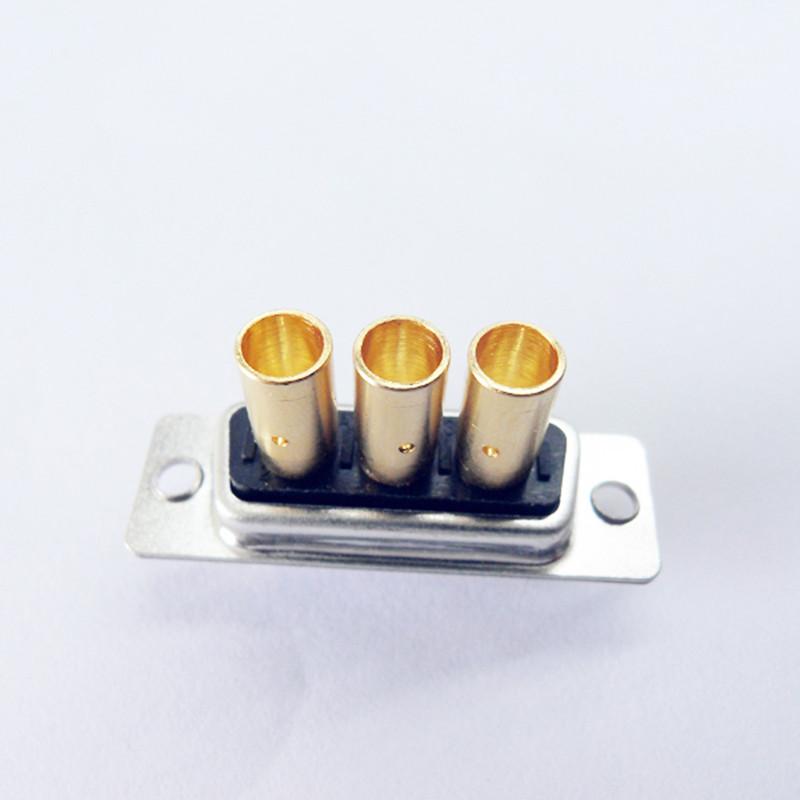

D-SUB High current Cycloid signal Coaxial Waterproof Connector

1W1.2W2.2V2.3W3.3V3.5W5.8W8.5W1.7W2.9W4.11W1.13W3.13W6.17W2.17W5.21W1.21W4.25W3.24W7.27W2.36W4



Product attributes:

Insertion mode: welding wire type. 90 °board. 180 °board. Line pressing type. DIDC pressure arrangement type

Type of insertion: male / female head

Insulator material: 30% UL 94V-0 (green, black, white)

Rated temperature: -55 ~ 125

Shell: iron, pre-nickel and post-tin (salt spray 24H)

Contact material: brass, phosphorus copper, (can be customized according to customer's request)

Contact plating: all gold 1U "-30U" can be electroplated according to guest's requirement.

Rated current above: 5A, (large current 10A. 20A / 30A / 40A)

Waterproofing grade: IP67

Signal transient resistance: less than 10m Ohm

Insulator resistance: 1000VAC/1 minute at sea level

Insulation resistance: > 5000m Ohm

Coaxial transient resistance: 75 or 50 Ohm

High power transient resistance: < 2.7 m Ohm

Connector insertion Force: maximum 15.0kgf

Service life: about 500 times

Uses: computer, automobile, communication, cabinet, aviation, medical instrument, industrial control equipment PCB board, power cable, digital, electric appliance, game machine, large equipment, etc.





1. We have 11 years experience in designing, developing and manufacturing connectors. We can supply the latest samples to our customers in the shortest time.



2, confirm the specific specifications of the product with the customer and provide sample confirmation;



3, sample case: need to open the mold products within 15 to 25 days to sample, regular samples sent on the same day (free to provide 3PCS), has placed orders up to 50,000 yuan customers, sample courier fees paid by our company, special samples need to charge sample fee, Have placed orders up to 50,000 yuan customers, sample courier fees paid by our company.



4, product quality inspection requirements and to provide customer samples quality requirements production inspection standard shipment;



5, the production delivery date and the guest consultation shipment time shall prevail, has the guidance ordinary situation to need the bilateral consultation (the regular product 1-7 days shipment, the special product 7-15 days shipment);



6. freight method: 1KPCS or above freight is the responsibility of our company, and 5KPCS of punching product is responsible for freight. Dobang logistics is the main s estion to save the weight of foreign goods up to 10KG, and logistics should be raised by ourselves. When the approval of more than 8000 yuan we can provide logistics door-to-door charges; such as logistics for the receipt of goods on behalf of the production of the process costs by your company responsible for;



7, payment method: cash (cash to delivery, the province is received by express delivery, the province first to pay after the delivery);



8, the method of drawing the bill: VAT 17, the amount is less than 7000 yuan, with the accumulative charge principle;



9, customer service monthly visit customers on a monthly basis.
