Aerial FTP Cat5e with Steel Messenger and DC Power Cable

Aerial FTP Cat5e with Steel Messenger and DC Power Cable
Model:FTP Cat5e
Brand:SURELINK
Origin:Made In China
Category:Electronics & Electricity / Optical Fiber, Cable & Wire / Communication Cable
Label:Cat5e with messenger , Cat5e FTP , Outdoor Cat5e Cable
Price: US $70 / roll
Min. Order:50 roll

Product Description

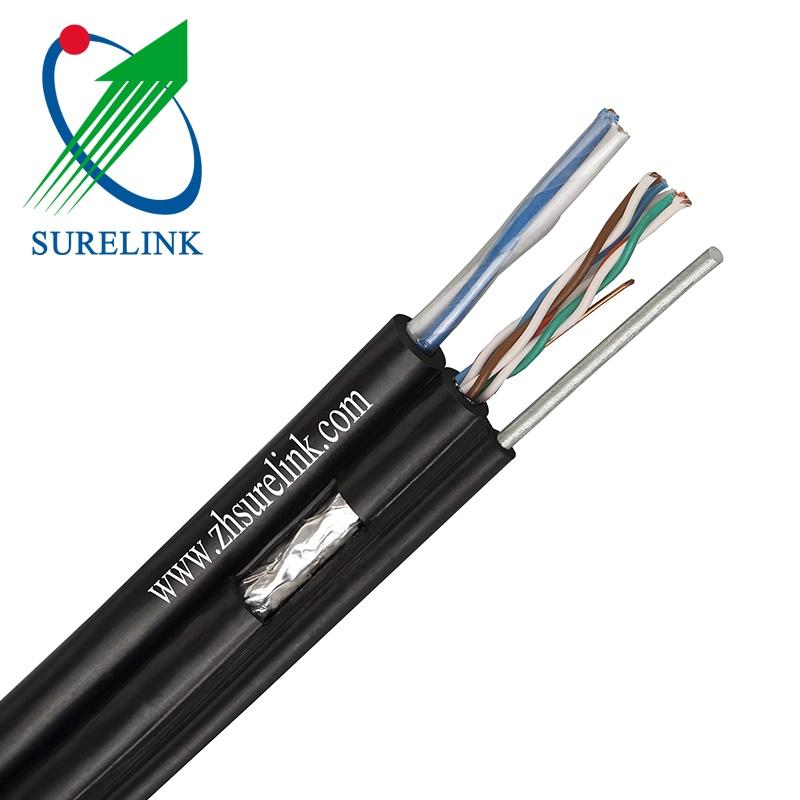

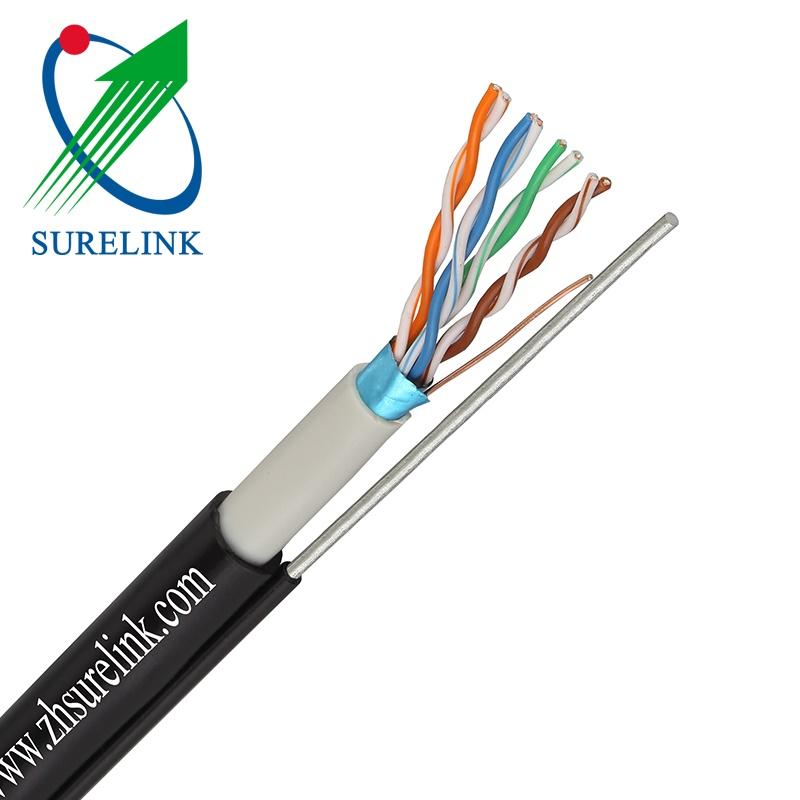

Surelink Aerial Cable FTP Cat5e With Steel Messenger and DC Power Cable





Cable Overview



Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PE Jacket , high-temperature resistance,long working life.



Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.



Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S



Standard / Certificate

Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B,UL444
Certificates ISO9001,14000, UL, ROHS.



Transmission Performance for reference




Cable Specification



  Item Name      FTP CAT5E Lan Cable
  TYPE      Cat5E
  Conductor      CCA or 24AWG Solid Copper
  Number of Conductors      8
  Insulation Material      HDPE
  Drain Wire       24AWG
  Shielding      PET/ Aluminum Foil
  Application      Lan cable
  Jacket      PE
  Operating temperature      -50 ° C - +70 ° C
  Standard      EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS
  Certificate      CE/ISO/RoHS Approved



Meterial Description






Related Package



Package Details:
305meters or 1000ft pull box or wooden drum

Two boxes into a carton




OEM / Related Production For Lan Cable



OEM  custom-made  production  according  to  different  customer's  request. Shape, PVC ,color, Conductor  diameter, degree of  tightness, logo  design, Inner and Outer package design, all of below  request  are  available.



    Product       Network Lan Cable
    Type      CAT3/CAT5E/CAT6/CAT6A/CAT7
   Conductor      23 AWG/24 AWG/26 AWG BC/CCA
    Insulation      HDPE (high density polyethylene)
    Shielding      Pet Tape/ Aluminum Foil
    Ripcord       Nylon
    Cross      PP
      Drain Wire      0.40mm tinned copper/CCA or BC
      Jacket      PVC/LSZH/PE
    Operating temperature      -20 ° C - +60 ° C
    Working Life      20~25 years
    Applications      Computer network cabling project
     Broadband network communication
     Digital ISDN network and ATM 155mbps network
     Long distance and local area network commubication



Related Hot Models




Manufacturer Introduction



Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories.  We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.



Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.



Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.



We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.



Main Cable Categories Provided by Us



1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.



Company Show




Certificate






Workshop and Quality Test






Package and Delivery



SURELINK PACKAGE.jpg



Payment and Shipping



Payment

We usually use T/T

T/T deposit before production and balance when shipment.

Payment terms: Western Union, Escrow, Paypal, T/T ,L/C

Shipping

If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.

For big order,we will ship the goods by air or by sea.



Just Talk To Us!



Aerial FTP Cat5e with Steel Messenger and DC Power Cable 1Aerial FTP Cat5e with Steel Messenger and DC Power Cable 2Aerial FTP Cat5e with Steel Messenger and DC Power Cable 3
