Surelink Aerial self supporting fiber optical cable GYFTC8Y with pe jacket



Cable Structure





Technical Parameters



Performance	Long-term	Short-term
Max.Tension(N)	3500	7000
Max.Crushing	300	1000
Resistance(N/100mm2)	30D(Dynamic)	15D(static)
Storage and operating temperature	-40℃ to +70℃



Optical Characteristics:

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm



Cable Specification:

 Item Name:Fiber optical cable GYFTC8Y

Optical Mode:Singlemode/Multimode

Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm

Total Fiber Count:2-144

Bend Radius(Static/Dynamic):10D/20D

Working Life:More than 25 years

Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

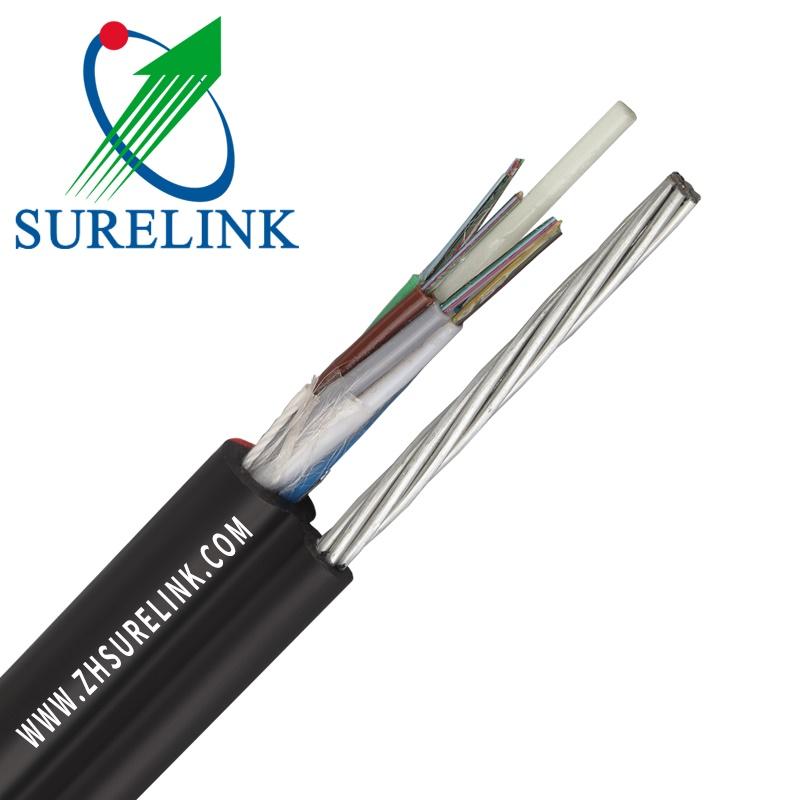

Structure:

Figure 8 non armoured fiber cable consists of :

1.Stranded loose tube

2.FRP strength member

3.Core filler compound

4.Fillers

5.Phosphating or Galvanized steel wire

6.PE sheath

Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate:CE ROHS ISO9001

Characteristics

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility



Related Package



Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
