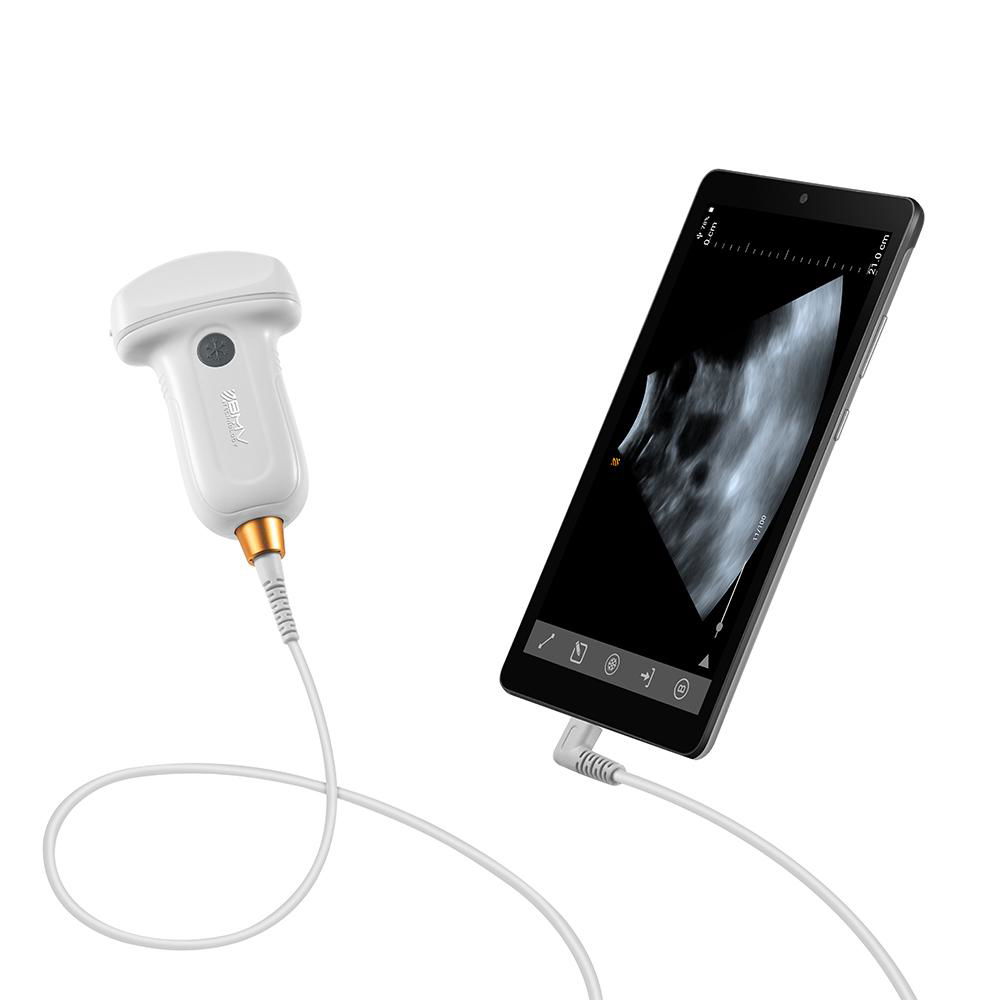

MX5 portable ultrasound system comprises a set of handheld ultrasound transducers that connect via USB to a compatible Android smart device, such as a smartphone or tablet, to help healthcare professionals make fast, accurate decisions in a wide range of applications.

Transducer:

C5-2 broadband curved array transducer

• 5 to 2 MHz extended operating frequency range
• 60mm radius of curvature
• High-resolution imaging for deeper applications: gynecology, obstetrics, abdominal, urology, peripheral vessel
• USB-C transducer with replaceable cable
• Support C8-4 broadband curved array transducer, 8 to 4 MHz extended operating frequency range and its central frequency 6MHz with 15 mm radius of curvature, for gynecology, obstetrics, abdominal, urology, peripheral vessel.

L10-5 broadband linear array transducer

• 10 to 5 MHz extended operating frequency range
• Central frequency 7.5MHz, aperture size: 34mm
• High-resolution imaging for shallow applications: small organ, musculo-skeletal, peripheral vessel, nerve exam
• USB-C transducer with replaceable cable
• Support advanced overclocking probe L10-5s, aperture size:26mm, central frequency 8.0MHzs

P4-2 Phased Array Transducer

• 4 to 2 MHz extended operating frequency range
• Central frequency 3.0 MHz, field of view 90°
• High-resolution imaging for adult cardiac, abdominal
• USB-C transducer with replaceable cable

MX5 system bundle, your dedicated turnkey solution

Acquiring MX5 is simplified by purchasing a bundle with a unit price for all that’s needed to put MX5 to work in your environment. The package includes:

• Customizable – one, two or all three transducers and cables
• Brand 8” tablet and power cord
• Custom tablet case
• Custom carrying case
• 1-year warranty
• The transducers are pre-registered, so it’s truly “scan out of the box”.

How to use

1. Download the app
   The robust MX5 app is available on compatible Android smart devices via the QR code(coming soon on Google Play Store ).
2. Connect the MX5 transducer
   Our innovation in portable ultrasound comes to your compatible device through a simple USB connection.
3. Start scanning
   Now you can quickly begin scanning with the quality of BMV imaging from your compatible Android smart device.
