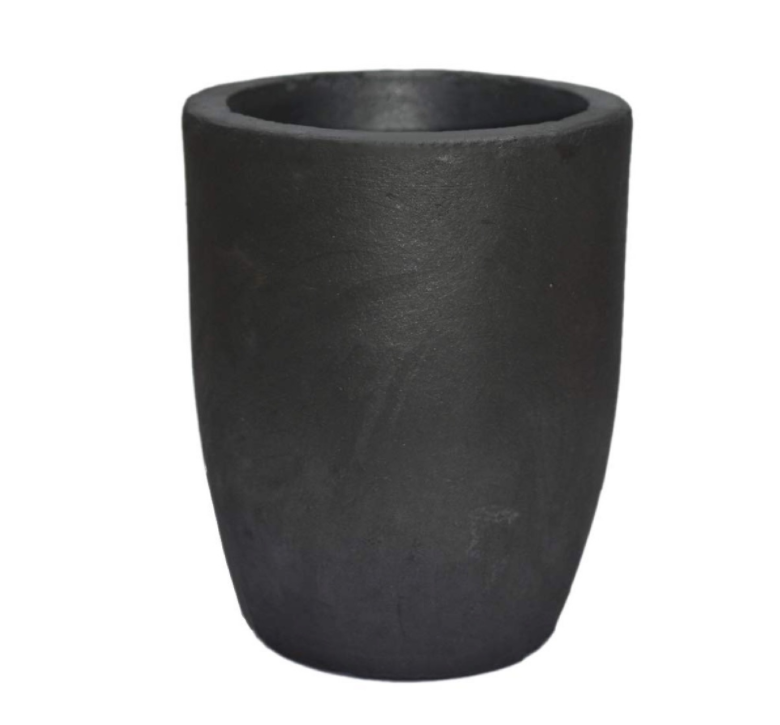

Silicon Graphite Crucible

Silicon Graphite Crucible
Model:50-1000Kg
Brand:XYY
Origin:Made In China
Category:Agriculture & Foods / Agricultural Products & Resources / Charcoal
Label:crucible , graphite crucible , silicon crucible
Price: US $100 / Pcs
Min. Order:10 Pcs

Product Description

Advantages

Our silicon carbide graphite crucible has the following characteristics:

1.  Higher thermal conductivity: Shorten the time of smelting, save energy;

2.  Higher strength: Shaped by isostatic pressing, internal structure without defects, high physical strength;

3.  Better oxidation resistance: Unique antioxidant design, and use high purity raw materials to protect graphite, high oxidation resistance; It’s 5~10 times of ordinary graphite crucible.

4.  Anti erosion: low porosity, special additives, effectively resist the corrosion of slag and other melts.

5.  long life: Crucible’s life can be 3-5times longer than normal graphite crucible.

Characteristic

Carbon 35%~55%
SiC 35%~55%
Resin 1%~5%
High temperature adhesive 1%~5%
Porosity % 11
Density (g/cm3) 2.1~2,4
Bending strength(MPa) 12~18
Thermal expansivity(% at 800℃) 0.30
Thermal conductivity (w/m.K) 20~30



For different furnace:

Material

Applicable furnace/metal

JA

Electronic resistance furnace, Coke furnace

JB

Electronic resistance furnace, Holding furnace

JC

Flame furnace, Coke furnace, Bio particle furnace, Gas furnace, Oil furnace

JD

Electromagnetic induction furnace, Intermediate frequency furnace

JE

High acid and alkali corrosion metal

Silicon Graphite Crucible  1Silicon Graphite Crucible  2Silicon Graphite Crucible  3Silicon Graphite Crucible  4
