Product Name:



LORA Industrial Wireless Module with Serial Ports



Model Name:

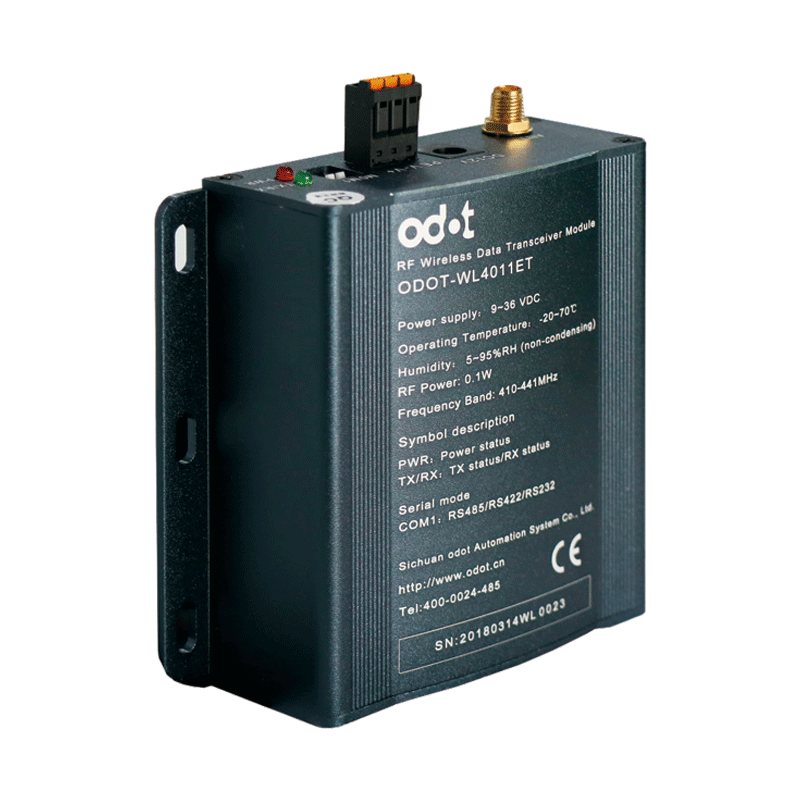

ODOT-WL4011ET



Product Overview:



ODOT-WL4011ET is a highly stable industrial data radio transceiver(433MHz,100mW). The transceiver module uses SX1278 main chip,LORA spread spectrum transmission,RS232,RS485,RS422 serial port output. The product using metal case is firmly designed and supports wall mounting and DIN-rail installation. All serial port signals are provided with built-in isolator.





Function:



*Support working frequency 410MHz~441MHz,32 channels in total, interval between each two channels: 1M.



*Support RS485,RS422,RS232



*Two working modes: Passthrough mode used for data pass through,configuration mode used for changing radio communication data



*Transmit power 100mW(20dBm)



*Sensitivity: -138dBm,visual range transmitting 6000 meters



*Air Speed:<=27.344kps



*Working Environment -20~70℃



*Transmitting Bytes:



Sending ≤1024 bytes



Receiving ≤1024 bytes





Feature:



*Industrial lightning protection, normal working during thunderstorms.



*Wide temperature range, adapt to harsher environments.



*Firm and compact construction, save space.



*Wide voltage range, adapt to any country voltage.



*IP 40, suitable for all kinds of harsh environments.

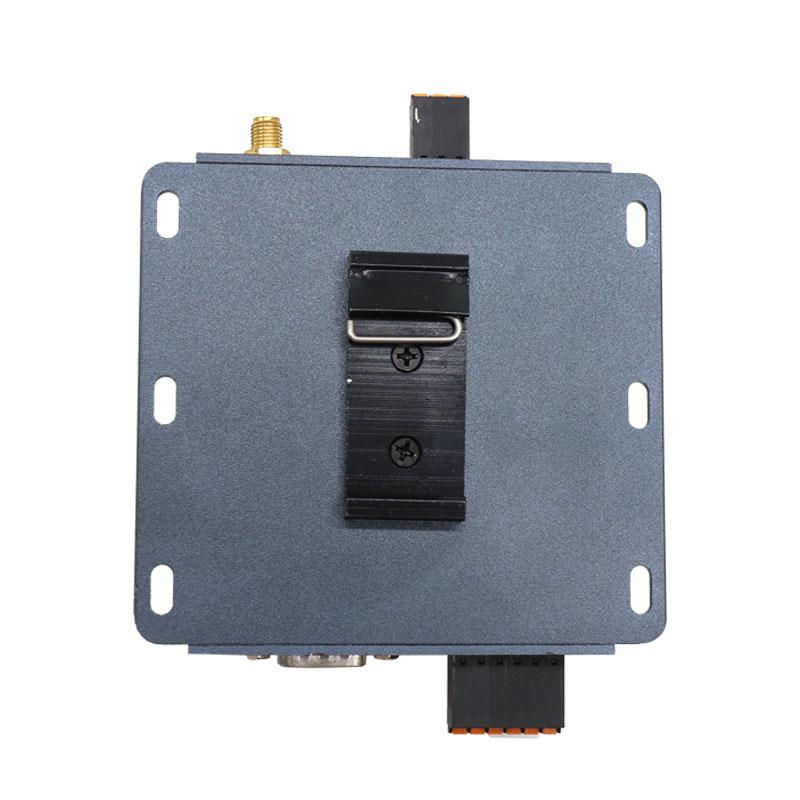

*DIN-Rail Mounting, easy to install and devices is free to move.



Specification:

Ethernet interface:

Number of ports:1

Rate:10/100Mbps,self-adaptable MDI/MDIX

Joint:8 Pin RJ45



Mechanical:

Case:metal shell

Weight:

Size:95*100*36mm



Serial port:

Number of ports:1

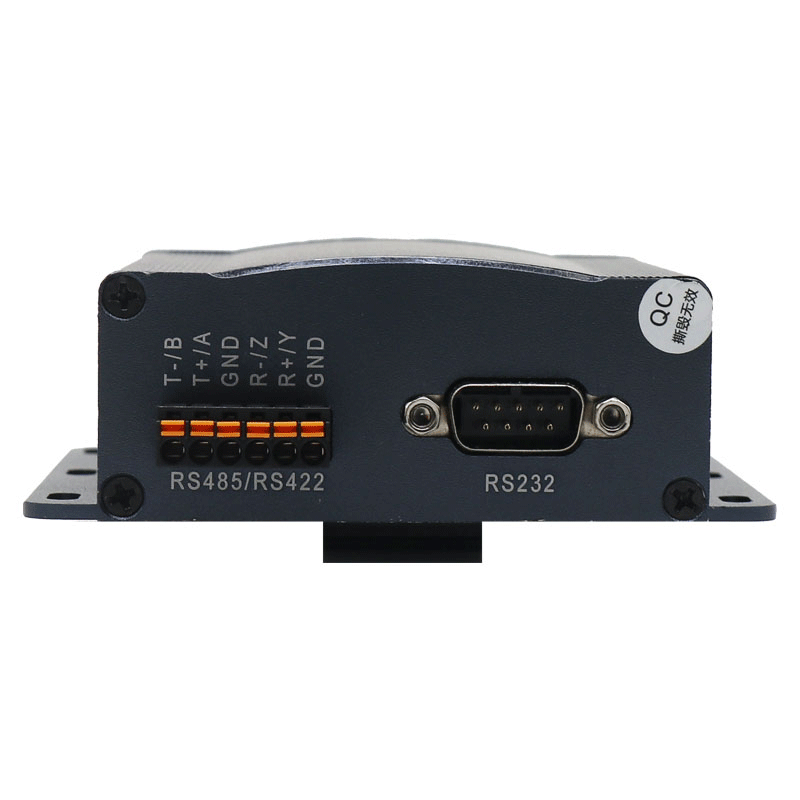

Serial port:RS485/422/RS232

Connection:DB9 male(RS232)

3.5mm plug type screw terminal(RS485/422)

ESD Protection:±16KV

RS-485 terminal resistance:built-in 120Ω

Data bits:7,8

Stop bit:1

Check bit:no parity, odd parity, even parity

Baud rate:2400~115200bps



Working Environment

Working temperature:-20~70℃

Storage temperature:-40~85℃

Relative humidity:5~95%(non-condensing)



Power requirements

Input voltage:9~36 VDC

Power interface:(optional)

5.5*2.5mm AC Adapter

Or 3.5mm pulling type screw terminal

Power consumption:current

Max.200mA at 24V



DIP switch:

Mode:OFF configuration mode

ON  passthrough mode



Authentication

EMC:CE

Guarantee:

Warranty:3 years



Software

Provide GSD file LRSetting

Provide testing softwareModbus Poll/Modbus Slave

Antenna:

Port:SMA-k external screw bore





Contact:
