S8 HD Goggles veterinary Portable Ultrasound Scanner

S8 HD Goggles veterinary Portable Ultrasound Scanner
Model:S8
Brand:bmv technology
Origin:Made In China
Category:Services / Therapies
Label:veterinary equipment , veterinary instrumen , veterinary ultrasoun
Price: -
Min. Order:1 pc
Inquire Now

Product Description

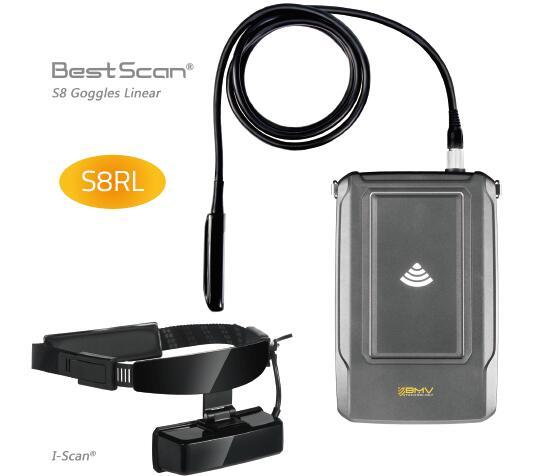

S8 HD Goggles Series Portable Ultrasound Scanner

Smart Linux systems inside, BestScan® S8 HD Goggles series are BMV groundbreaking ultrasound systems, they are uniquely engineered to meet the needs of the portable on‐farm rapid precise reproductive diagnosis. BestScan® S8 HD Goggles series can be easily use to determine the best time for insemination, early/late pregnancy and sex. With compatible with a HD I‐Scan® Goggles and extension probe introducers, its premium performance, dust and splash proof, slim and compact size, and ease of use, the BestScan® S8 is designed to satisfy all veterinarians’ on the dairy or beef farm applications .



Applicable to Dairy Cows, Beef Cows, Feedlot, Sheep, Horses, Pigs, Small Animals and other body scans, for example, Abdomen, Reproduction, Gynecology, Cardiology, Small Parts



S8 ultrasound scanner system features

Environmental rating:

With IP67 waterproof protective case; IP67 (probe head),IP54 (main unit),IP45(Remote controller)

Battery:

Continuous scan greater than 8 hours with 2 batteries, replaceable battery design

Hardware configuration:

enhanced processor+128 elements probe+32 channles

Grid for estimation:

With grid on the image area, you can easily estimate the size of the target substance like follicle,

Remote controller:

Strong LEMO type connector,Backlight comfort silica gel Keyboard,ergonomics design

IScan® HD Goggles:

Strong LEMO type connector,IScan® V4 high resolution ultrasound goggles.

Bright LCD monitor:

Works with direct wired Bright LCD monitor(optional)

Patent design:

Rectal Convex Curve Probe( wide field of view and deeper penetration )+ Works with sizes of IFR™ Probe Introducer ; Rectal Linear Probe + Works with sizes of IFR™ Probe Introducer;

Modular software:

Easy for upgrade, free lifetime upgrade to new versions

Workflow:

Simplified workflow with focused onfarm veterinary exams, multilanguage support

Storage and Export:

Images saved up to 1000 frames, and export via USB/SD supported



Ultrasound unite specification

Ultrasound platform

Based on linux, stable performance, security data

Imaging Modes:

B,M,2B,B/M,4B

Gray scale levels:

256

Transducer Type:

Convex Array,Linear Array,Rectal Linear Array

Transducer frequency:

2‐12Mhz

Transducer connector:

one active transducer connector,unique micro connector

Scanning depth:

up to 300mm



Business card information

Mr. David Luo

General Manager - International Sales Dept.

Payment Terms:TT / LC / DP / DA

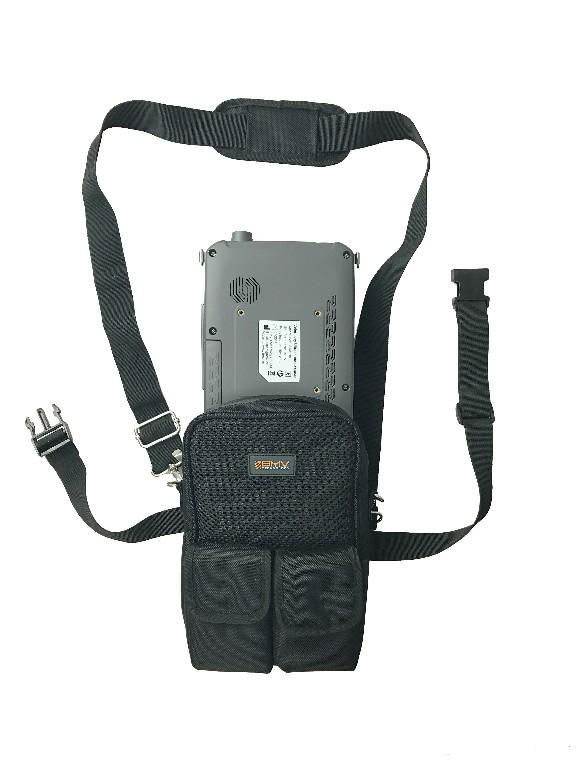

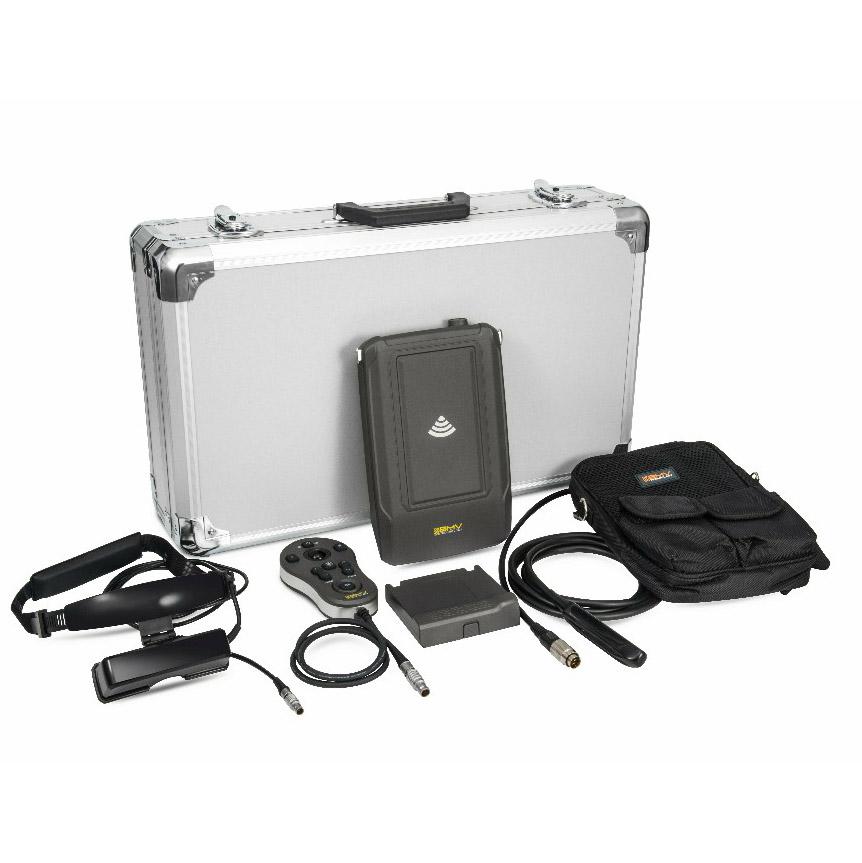

S8 HD Goggles veterinary Portable Ultrasound Scanner 1S8 HD Goggles veterinary Portable Ultrasound Scanner 2S8 HD Goggles veterinary Portable Ultrasound Scanner 3
