3D CNC Compression Spring Forming Machine

3D CNC Compression Spring Forming Machine
Model:-
Brand:UnionSpring
Origin:-
Category:Industrial Supplies / Other Industrial Supplies
Label:No CAM spring machin , Wire spring machine , Fishing tackle formi
Price: US $42000 / pc
Min. Order:1 pc
Inquire Now

Product Description

Quick Details

Applicable Industries:

Manufacturing Plant, Retail

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

Union Spring

After-sales Service Provided:

Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas

Warranty:

1 Year

Name:

11 axis spring forming machine

Usage:

Glass Bottle Metal Buckle Forming

Weight:

1500kg

Dimension:

1300*1380*1750mm

Condition:

New

Color:

Grey and red

Wire diameter:

0.3-2.5mm

Capacity:

70pcs/min

Voltage:

380V with a transformer

Supply Ability

Supply Ability:

15 Set/Sets per Month cnc spring forming machine

Packaging & Delivery

Packaging Details

wooden box

Port

Shenzhen

Picture Example:

package-img

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 30 50 To be negotiated

Video Description

00:0000:13

3D CNC Compression Spring Forming Machine

3D CNC Compression Spring Forming Machine3D CNC Compression Spring Forming Machine3D CNC Compression Spring Forming Machine3D CNC Compression Spring Forming Machine3D CNC Compression Spring Forming Machine3D CNC Compression Spring Forming Machine

Machine Parameter

Model US-236R US-480R
Axis 12 3
Wire Diameter 0.3-2.5mm 1.2-4.8mm
Max Outside Diameter 50mm 100mm
Wire feeding wheels group 2 3
Wire feeding motor power 2.7kw 4.4kw
Spindle motor Power 2.0kw 2.7kw
Arm 0.75*8kw 2.0*8kw
Quil Rota on Motor Power 0.75kw 2.0kw
Dimension(mm) 1300*1380*1750 2200*1930*1950
Weight 1500kg 3000kg

Product Description

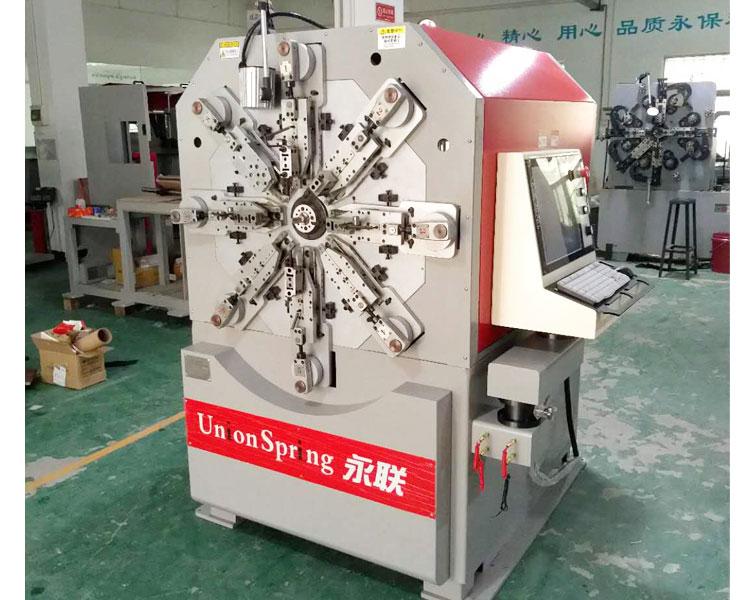

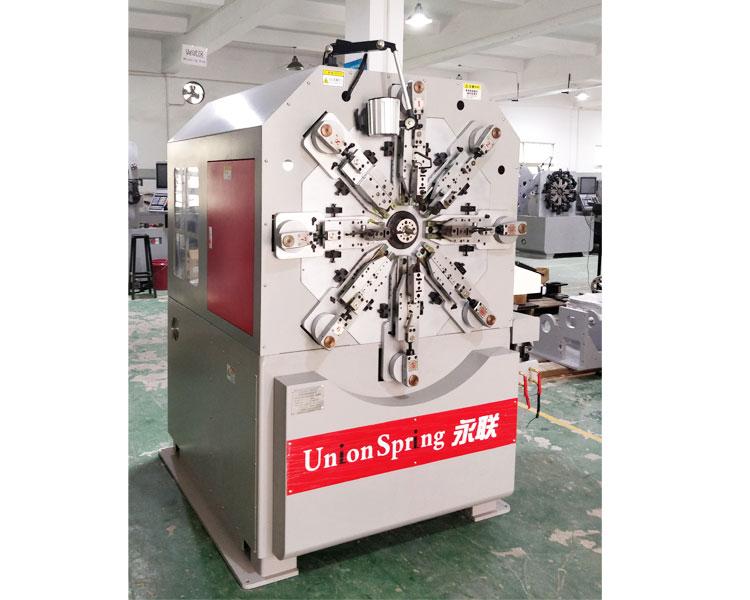

US-236R camless wire spring machine. This machine adopts a unique camless and no rocker design. It is independently controlled by multiple groups of servo motors and has powerful expansion. It can produce a variety of special-shaped springs, compression springs, tension springs, double torsion springs, flat springs (spring springs) and various types of wire molding.

1. No cam and no rocker design (up to 50% faster than the traditional cam machine, high production speed, accurate positioning, stable operation).

2. It has the advantages of the traditional 8-station machinery, and has a set of free hands that can be played up and down, left and right, and can be played freely (production of difficult springs is easier, faster, and more accurate).

3.All using double guide rail, ball screw drive, in order to ensure long-term accuracy and strength. Collisionless hair and heat, compound tool to complete all processes, low tool wear.

4. Intelligent module, automatic detection and alarm.

5. Windows operation, Chinese and English display, easy to learn and easy to use.

Sample

3D CNC Compression Spring Forming Machine3D CNC Compression Spring Forming Machine

Packaging & Shipping

 3D CNC Compression Spring Forming Machine3D CNC Compression Spring Forming Machine

Our packaging uses wooden boxes that meet international export standards.



Our Services

 1.Professional and patient consulting service to help clients find the suitable solution.
 2.Provide the technical details, machine configuration, price basis, payment term and delivery time.
 3.Powerful control of the machine production schedule and quality, and Update posted about details in time.
 4.Free training, photos and video of the machine and package for your confirmation before shipment.
 5.For technical support, we can help you online, we can send technicians to your factory if necessary.

3D CNC Compression Spring Forming Machine  13D CNC Compression Spring Forming Machine  23D CNC Compression Spring Forming Machine  33D CNC Compression Spring Forming Machine  4
