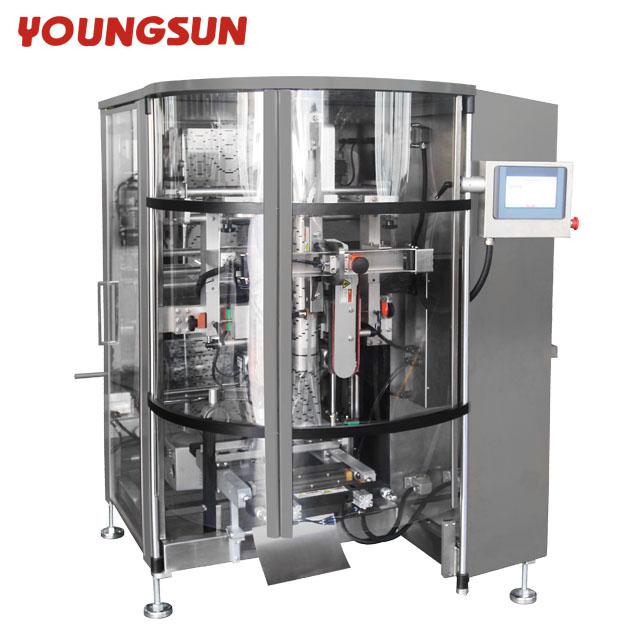

Vertical Automatic Weighing And Packing Machine

Model:	YS-CS-2520-CP
Brand:	YOUNGSUN
Origin:	Made In China
Category:	Industrial Supplies / Packaging Related Machine
Label:	vertical packaging , packing machine
Price:	US $50000 / set
Min. Order:	1 set

Inquire Now

Product Description

Our vertical sealing machines line of continuous motion vertical sealing machines machines features modular designs that can meet a wide variety of specifications.

Ranging from the vertical sealing machines – the world’s fastest continuous motion vertical form fill seal packaging machine to the vertical sealing machines Solitare – perfect for cheese or bulk packaging, our machines accommodate a wide variety of bag styles and options. Package liquids, solids, bulky or sticky items, both food and non-food with speed and precision.

Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space
Model	YS-CS-2520-CP-G	YS-CS-2520-CP-GB	YS-CS-2520-CP-4H-B
Bag type	Pillow bag 4 corner seal bag +bottom block	Gusseted bag +bottom block	4 corner seal bag +bottom block
Standard capacity	10-120 bags/min	10-120 bags/min	10-120 bags/min
Pillow bag	Width : 60-250mm	Width : 60-250mm
Pillow bag	Length: 60-400mm	Length: 60-400mm
Gusseted bag	Width : 50-220mm	Width : 50-220mm	Width : 50-220mm
Gusseted bag	Depth : 35-110mm	Depth : 35-110mm	Depth : 35-110mm
corner seal bag	Front width:65-170		Front width:65-170
corner seal bag	Side width : 45-110		Side width : 45-110
please note:(1.5*front width+side width)<300,side width not Include corner sealed
Film parameter	packaging material:OPP/AL/PE, PET/VMPET etc.
	Film diameter: ≤600mm
	Core diameter:76mm
Total power	5 KW
Air pressure	≥0.5MPa
Air consumption	HS closure, 0.32NL/cycle
Outer dimensions (appr.)	180012701615mm
Weight (appr.)	680kg
Power supply (optional)	3N-PN-50Hz 380V/220V (3P 5 wires)
